Fuel Pressure Check

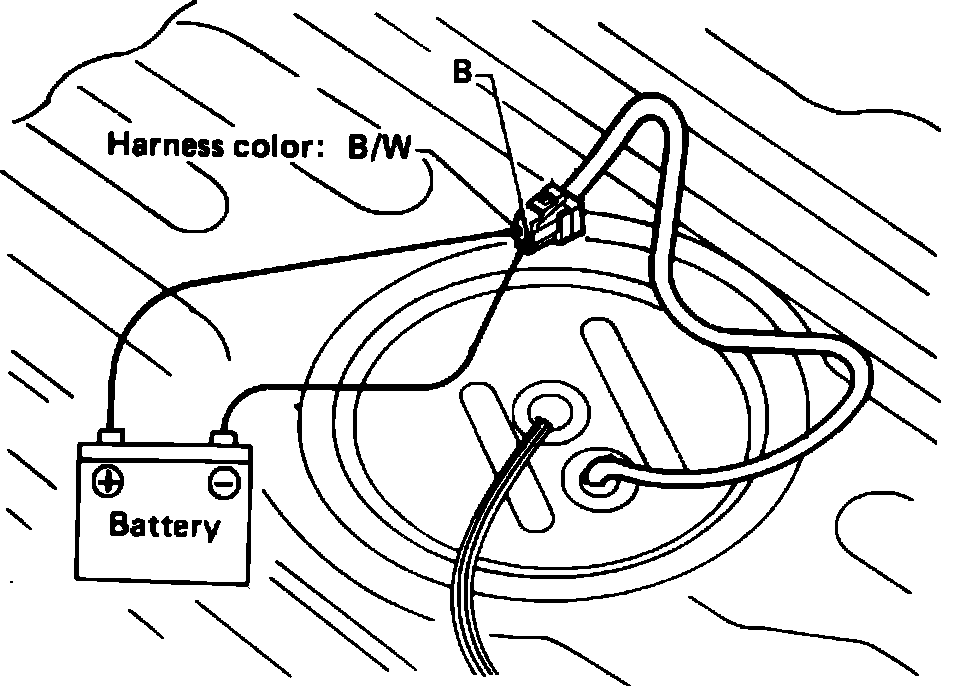

Fig. 129 Connecting battery to fuel pump terminals.:

Fig. 130 Connecting battery to fuel pump terminals.:

1. Release fuel system pressure.
2. Disconnect fuel hose between fuel filter and fuel tube on engine side.
3. Install fuel pressure gauge J-2540034 or equivalent between fuel filter and fuel tube.
4. Start engine and check for fuel leaks, then check pressure gauge reading.
5. At idle, fuel pressure should be approximately 30 psi. At the moment the accelerator pedal is fully depressed, fuel pressure reading should be approximately 44 psi on 1985-86 turbo charged models, or 37 psi on all other models.
6. Place ignition switch in the Off position, then disconnect fuel pressure regulator vacuum hose from intake collector. Plug collector with a rubber cap.
7. Connect variable vacuum source J-23738 or equivalent to fuel pressure regulator.
8. Disconnect fuel pump wire connector and apply battery voltage to pump terminals, Figs. 129 and 130.
9. Start engine and note fuel pressure reading as vacuum is changed. Fuel pressure decreases as vacuum increases. Fuel pressure should be 36-37 psi at 0 inch Hg. vacuum, 33-35 psi at 5 inches, 31-32 psi at 10 inches, 29-30 psi at 15 inches and 26-28 psi at 20 inches.
10. If the above test results are unsatisfactory, replace fuel pressure regulator.
11. Release fuel system pressure, then reconnect vacuum line, fuel, hose and fuel pump wire connector. When reconnecting fuel hose, use a new clamp, ensuring clamp is properly positioned.
