Home
>>
Nissan-Datsun
>>
1984
>>
300ZX V6-2960cc SOHC Turbo (VG30ET)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Auto A/C
>>
Troubleshooting
>>
Output System
Output System

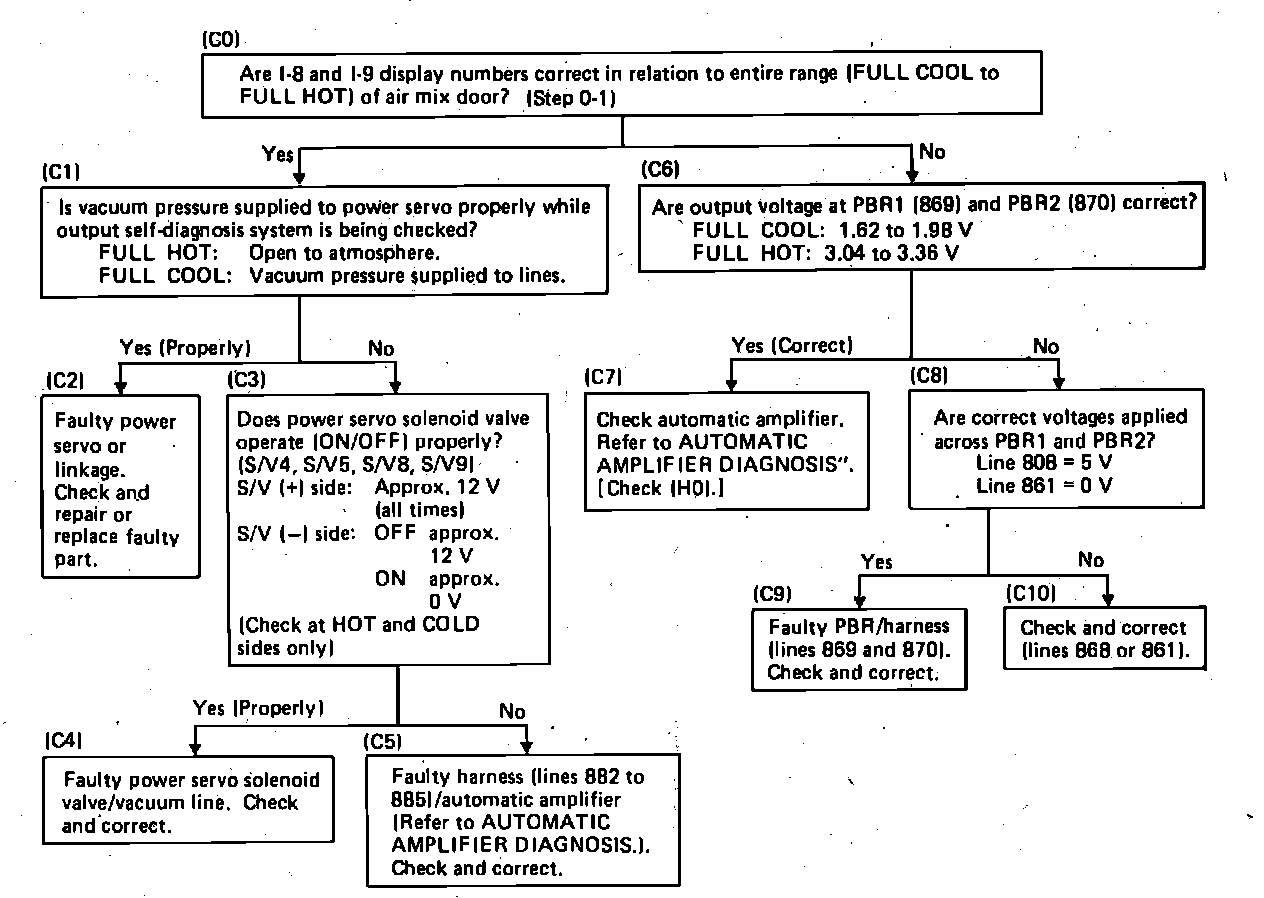

Fig. 42 Automatic temp. control system diagnosis (output system).:
