Emissions Maintenance Light: Service and Repair

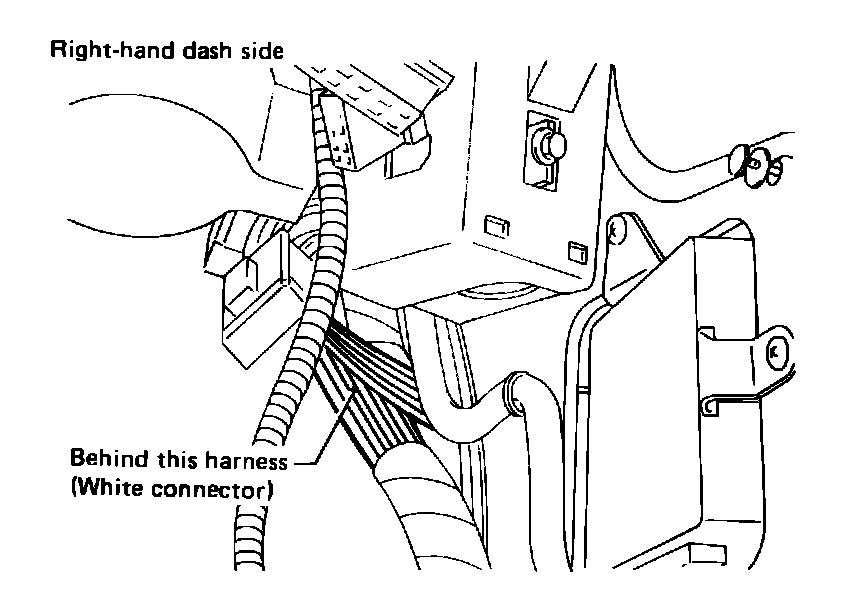

Fig. 10 Oxygen Sensor Warning Light Harness:

After the vehicle has been operated for 30,000 miles the oxygen sensor warning light located on the instrument panel will come on, indicating that the oxygen sensor should be checked.
After the operation of the oxygen sensor has been verified, reset the warning light by disconnecting the electrical connector as shown in Fig. 10.
