ECM Terminal Layout

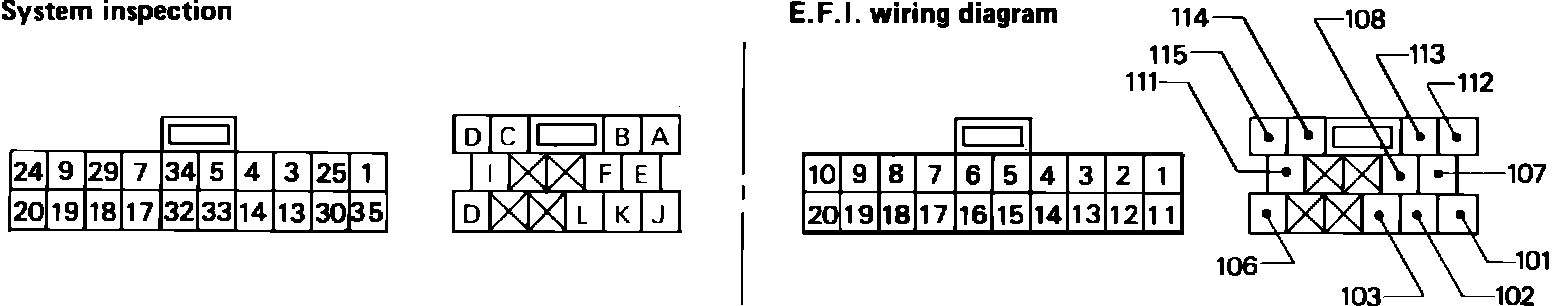

Fig. 45 Electrical connector identification.:

CAUTION:
While performing electronic control system inspection by referring to EFI. wiring diagram, use the following cross reference for the connector location numbers. System inspection refers to the on vehicle connector. The EFI. wiring diagram refers to the number sequence of the diagram connector.
