Removal

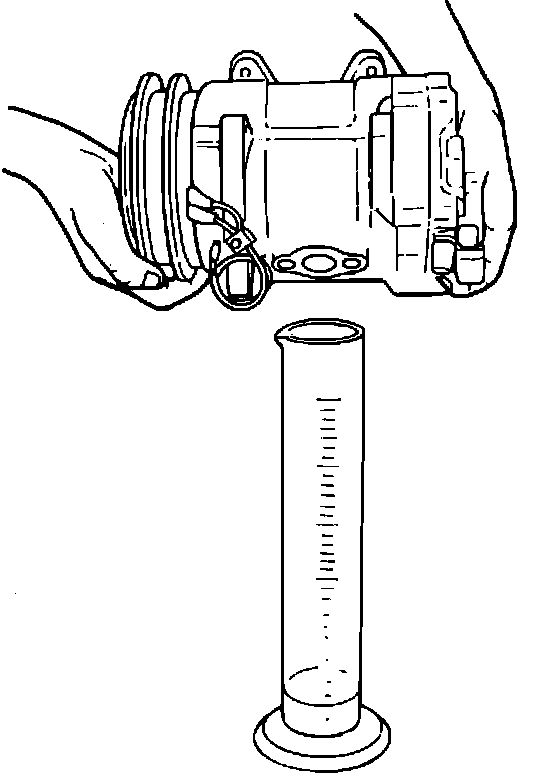

Fig. 5 Measuring Oil Quantity:

1. Before disassembling, be sure to measure the amount of oil. After assembling, charge with the same amount of new oil. Fig. 5

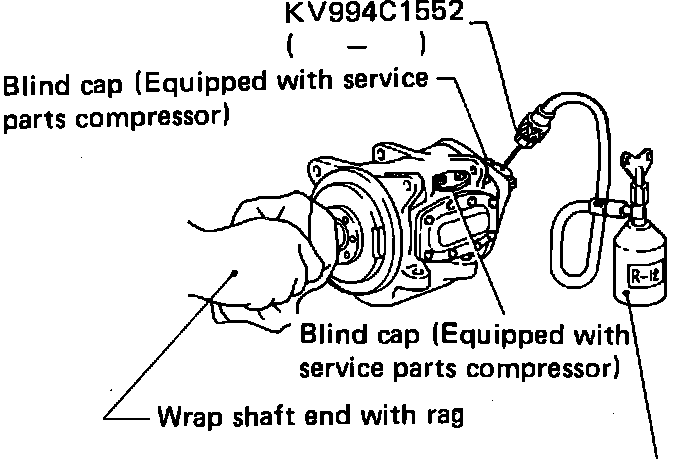

Fig. 6 Shaft Seal Seat Removal:

2. To remove the seal seat, apply pressure with refrigerant. Apply refrigerant pressure of 196 to 490 kPa (2 to 5 kg/sq.cm, 28 to 71 psi) through low pressure line of compressor until shaft seal seat is received at rag. Fig. 6


CAUTION:

a. Do not use air to prevent entry of moisture, dust, etc.
b. If shaft seal seat is not plucked out, install it again and apply refrigerant pressure.

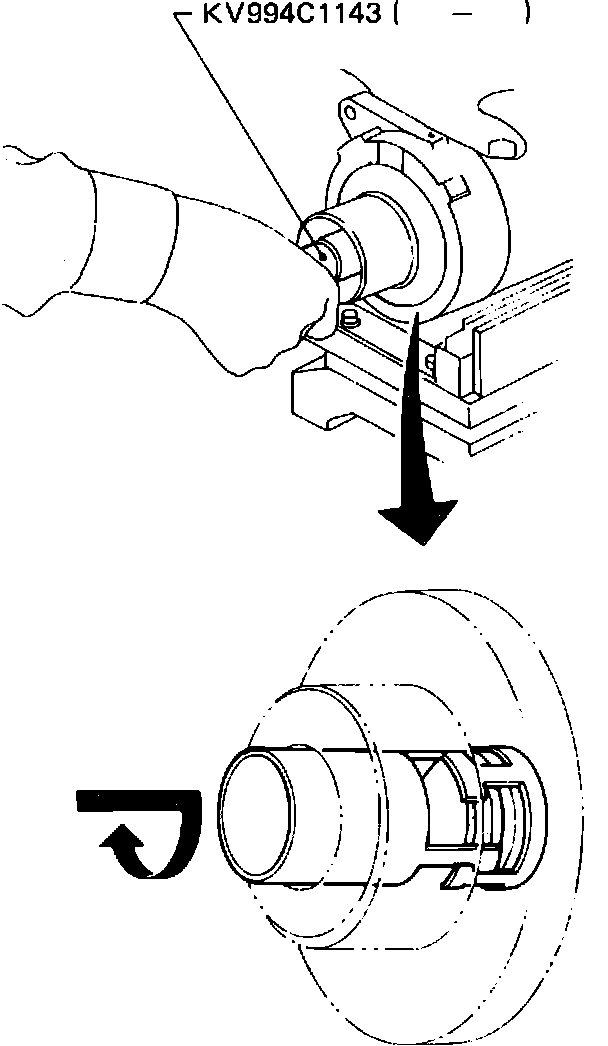

Fig. 7 Shaft Seal Removal:

3. With Tool KV994C1143, depress carbon seal and hook the case of shaft seal. Fig. 7
