Installation

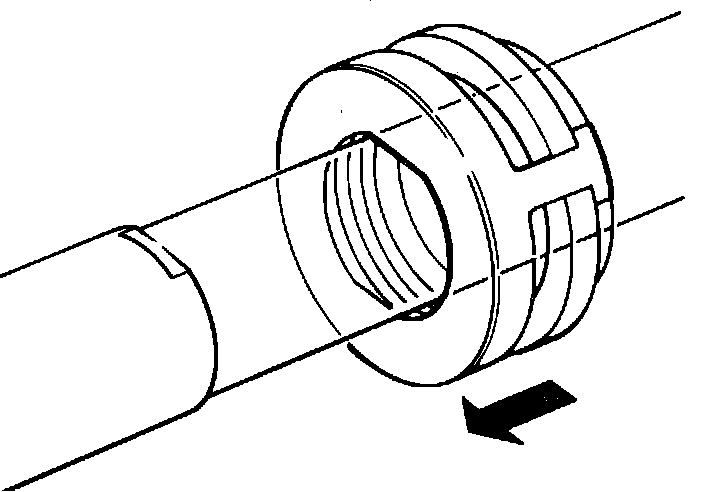

Fig. 8 Shaft Seal Installation:

1. Cap Tool KV994C5784 (J33212) to the top end of compressor shaft.
2. Using tool KV994C1143, insert shaft seal with shaft seal case and shaft cutout aligned. Fig. 8 Apply force to turn the seal somewhat to the left and right. Insure that seal seats properly in the shaft cutout.
