Home
>>
Nissan-Datsun
>>
1984
>>
200SX L4-1974cc 2.0L SOHC (CA20E)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Service and Repair
>>
Compressor Service
>>
Clutch Assembly Replace
>>
Removal
Removal

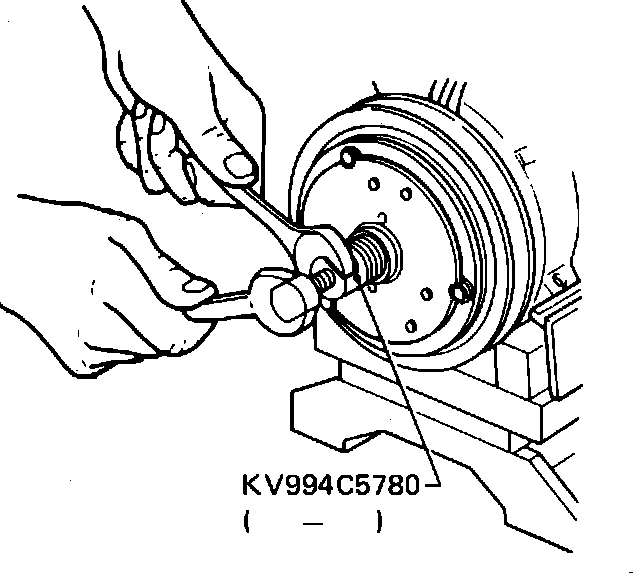

Fig. 2 Clutch Hub Removal:
1.
Hold clutch hub with Tool No. KV99412302 (J24878-1)
2.
Using tool KV994C5780 remove clutch hub.
Fig. 2
