Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
1984
>>
200SX L4-1974cc 2.0L SOHC (CA20E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
Less Theft Warning System
Less Theft Warning System

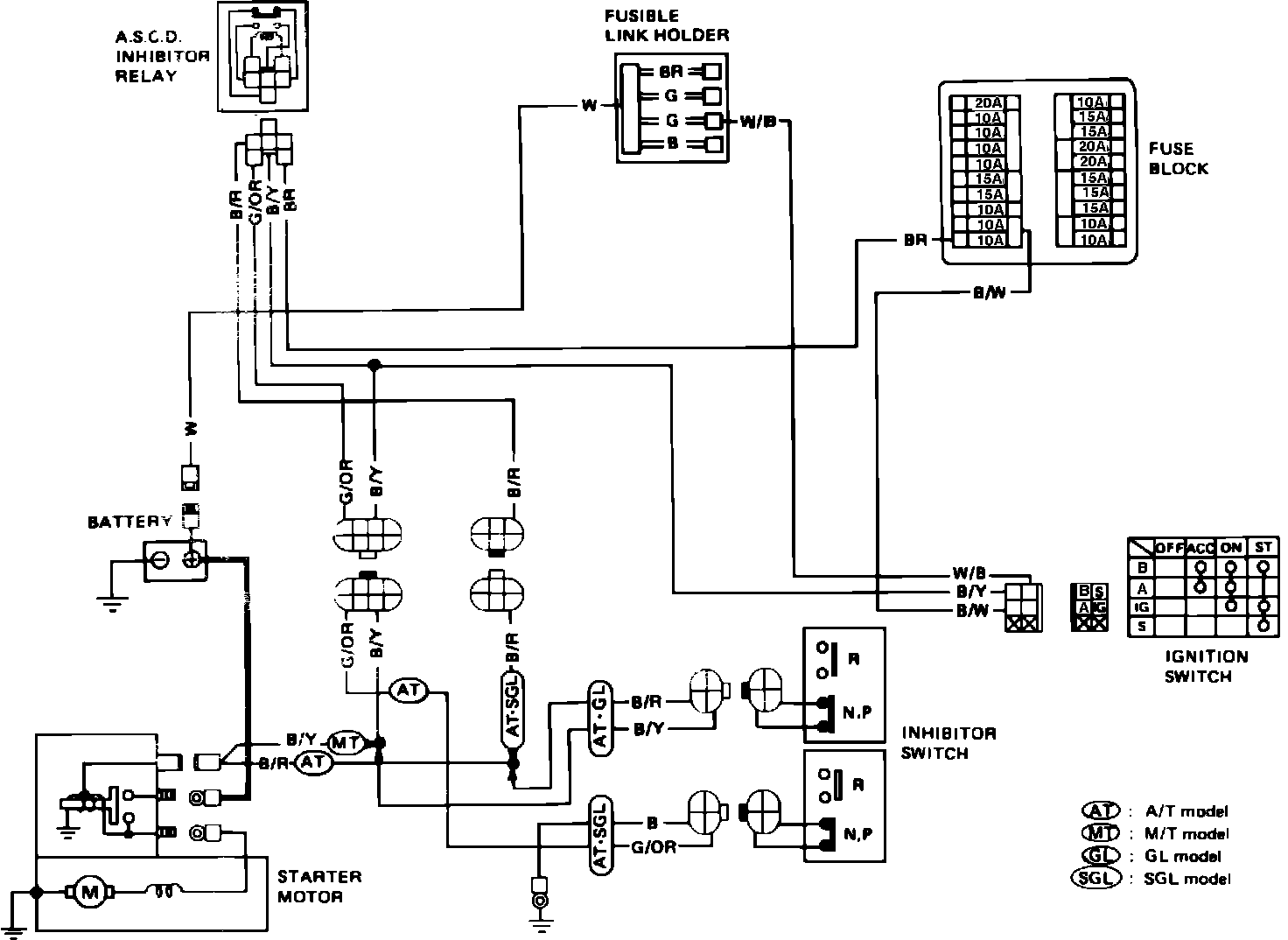

Fig. 32 Starting System Wiring Circuit.:
