Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
System Diagram

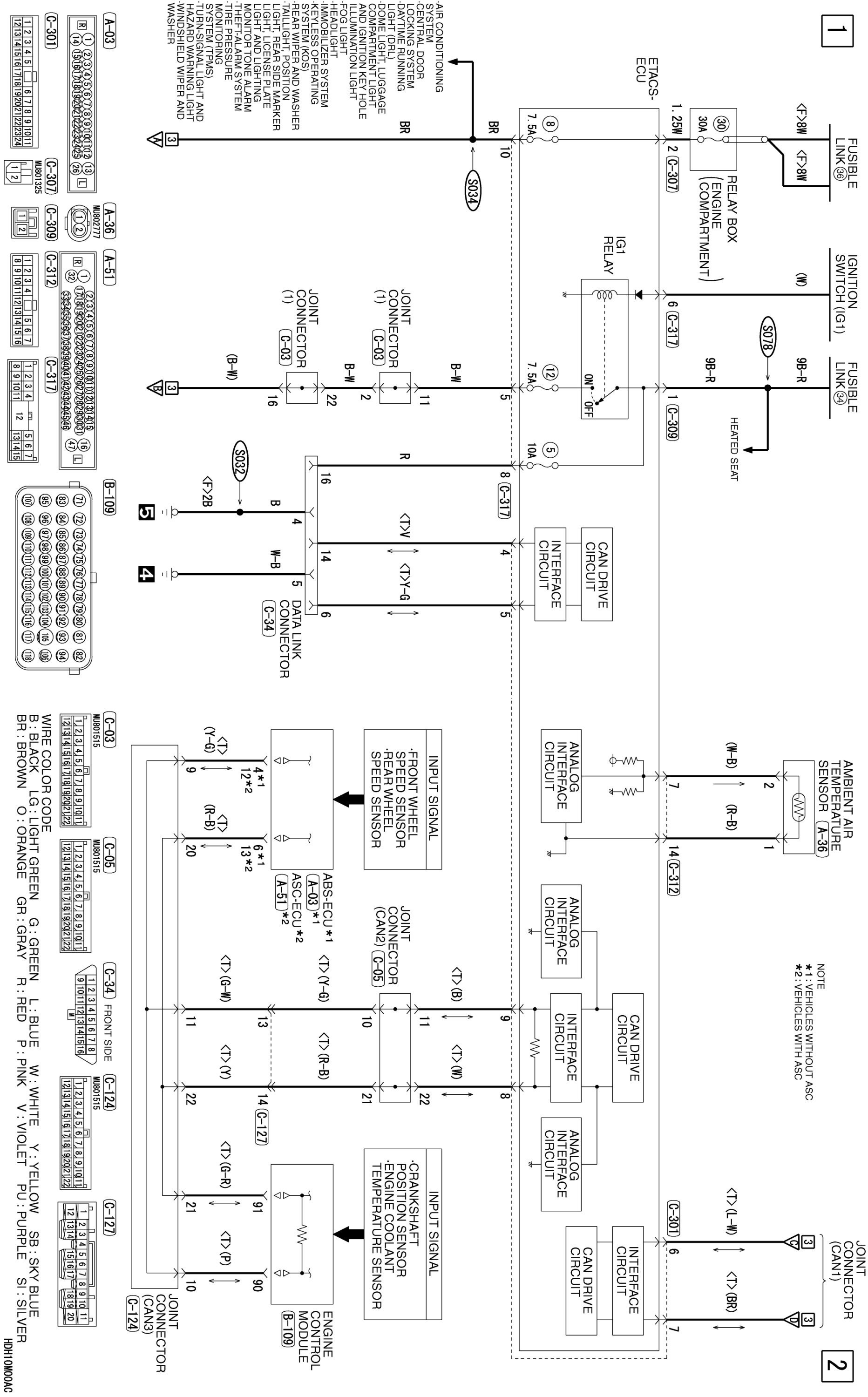

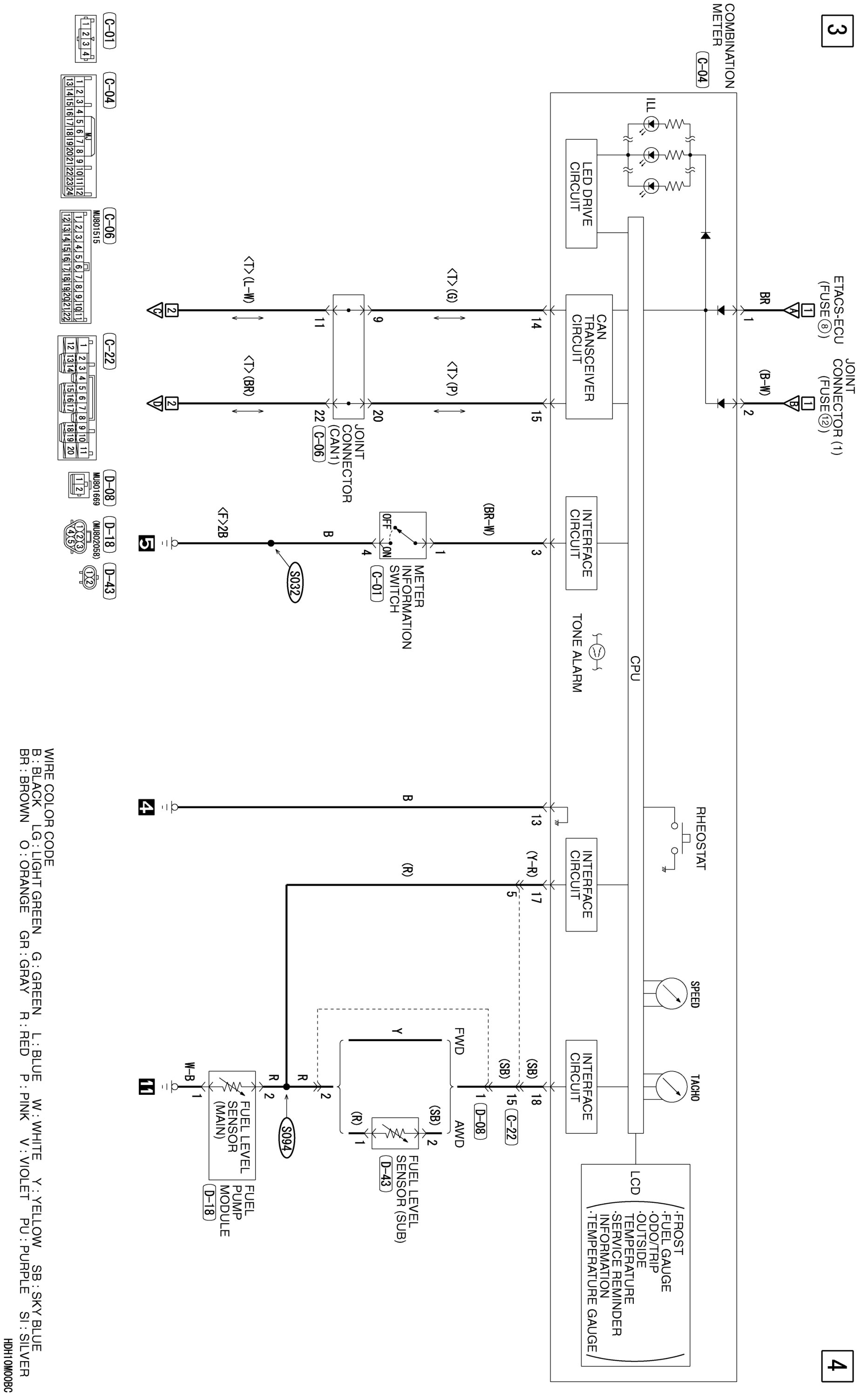

METER AND GAUGE [NON-TURBO]
