Mitsubishi
>>
2012
>>
Lancer Evolution L4-2.0L Turbo (4B11T/C)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatically Shifted Manual Transmission/Transaxle
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Shift Lever
Shift Lever

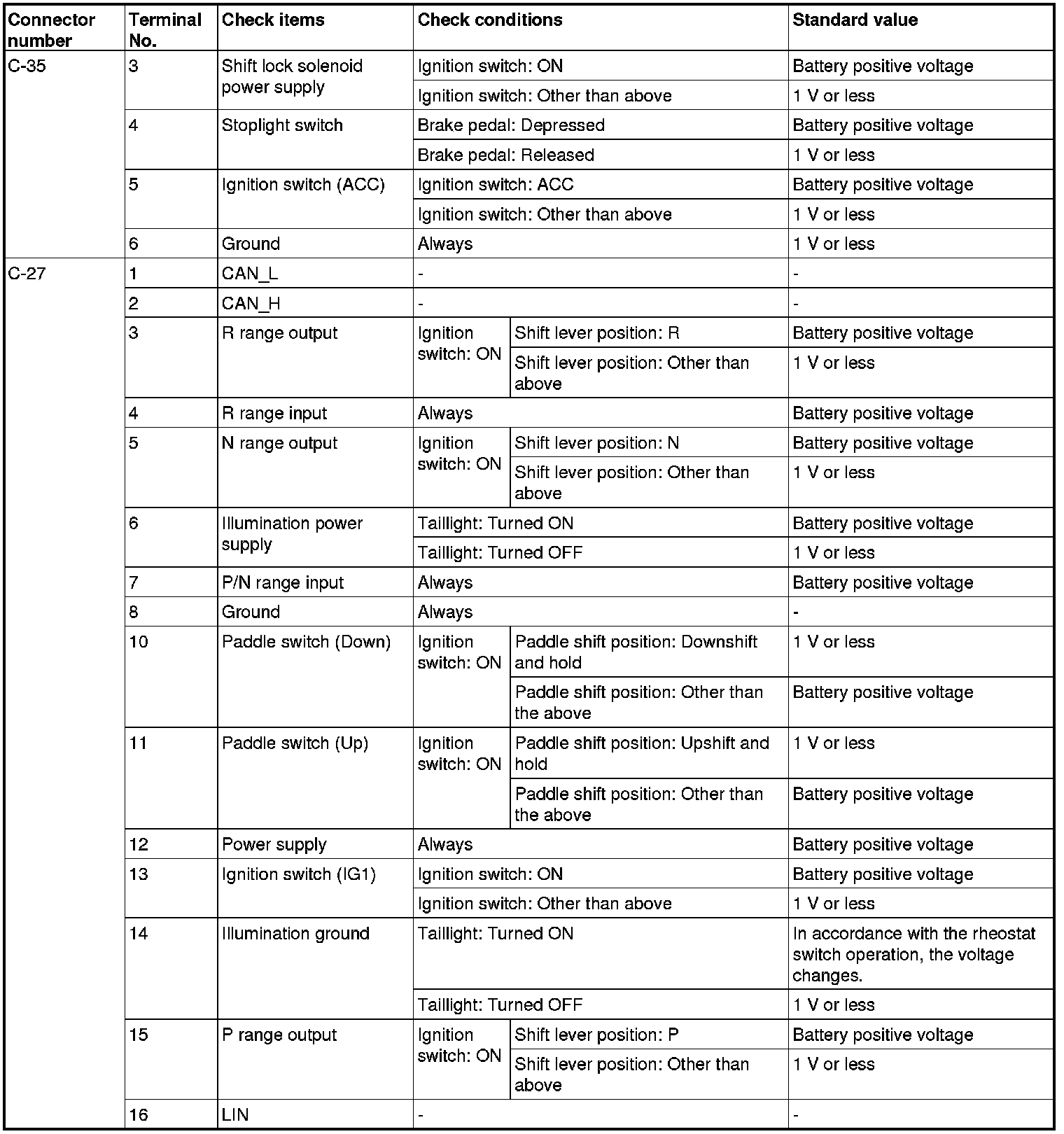

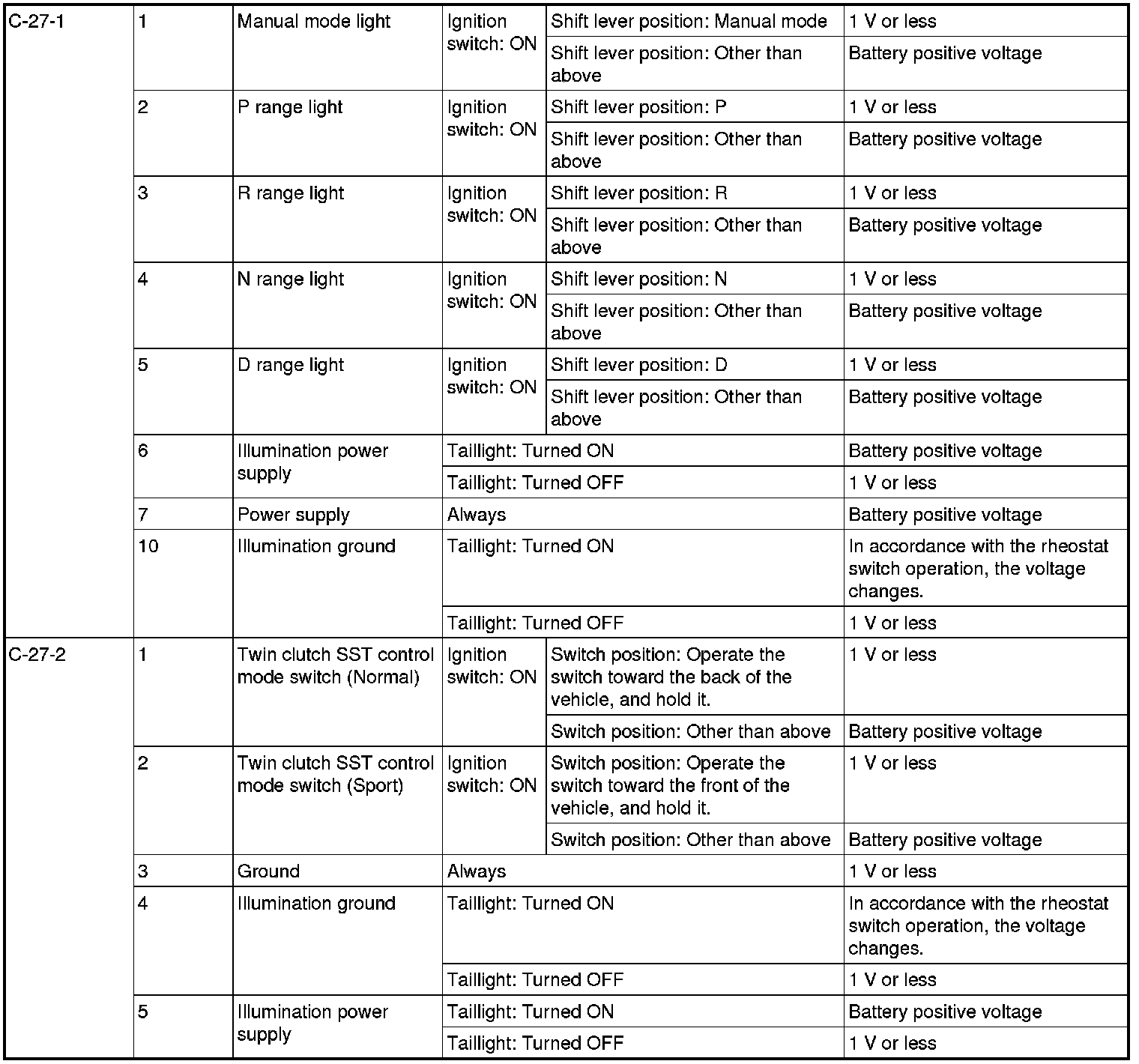

SHIFT LEVER -ECU TERMINAL VOLTAGE REFERENCE CHART
