Lancer Evolution L4-2.0L Turbo (4B11T/C)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

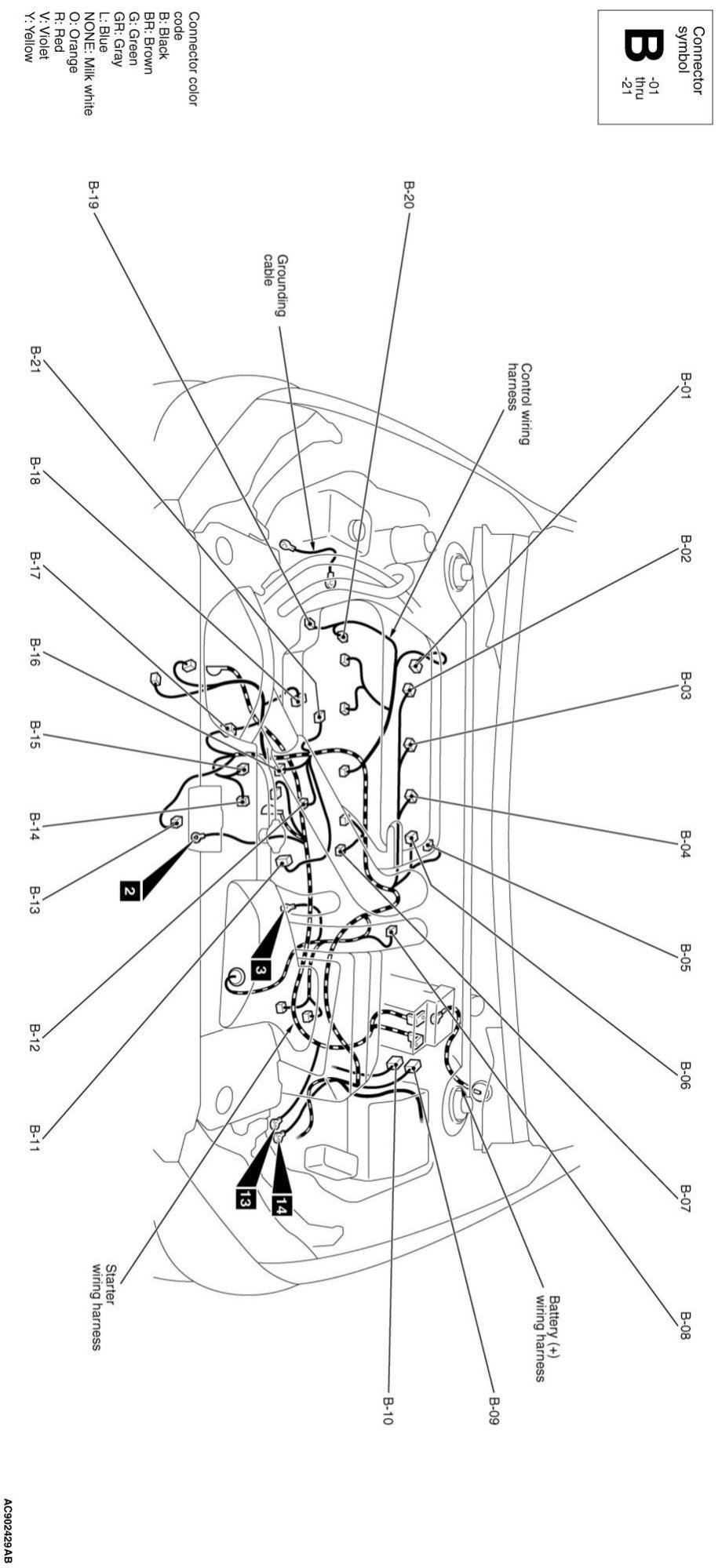

B Connectors - Engine and Transaxle (Transmission)
>>

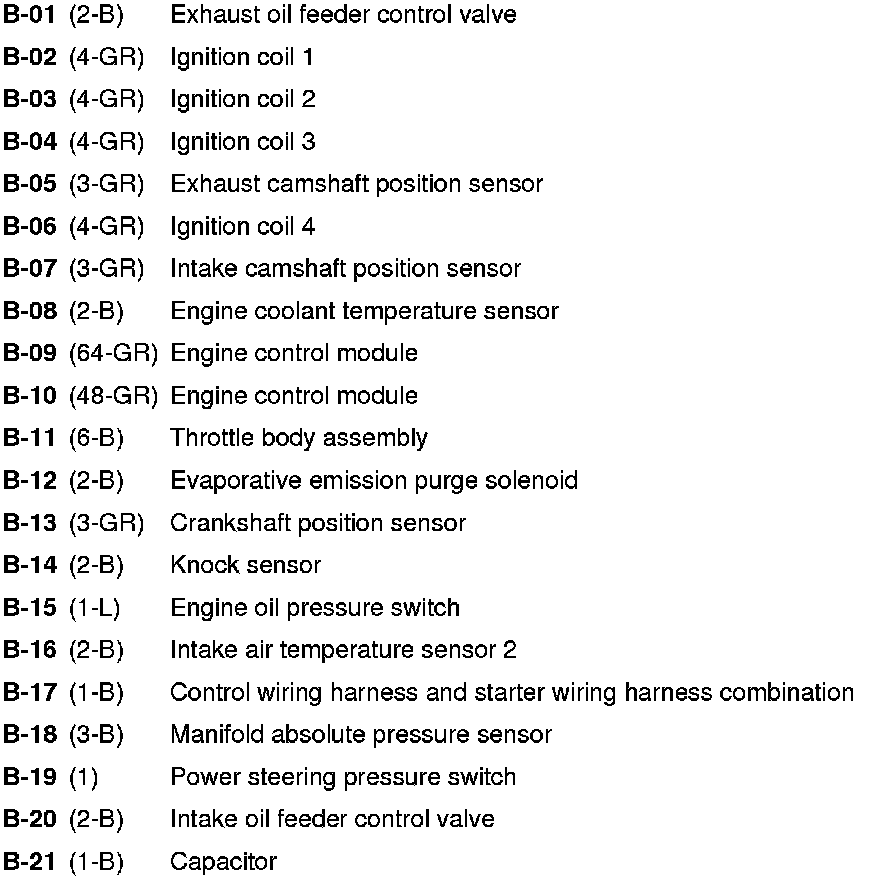

B-01 to B-21
B-01 to B-21
ENGINE AND TRANSAXLE
