Lancer Evolution L4-2.0L Turbo (4B11T/C)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Headlamp
>>
Headlight [Halogen Type]
Headlight [Halogen Type]

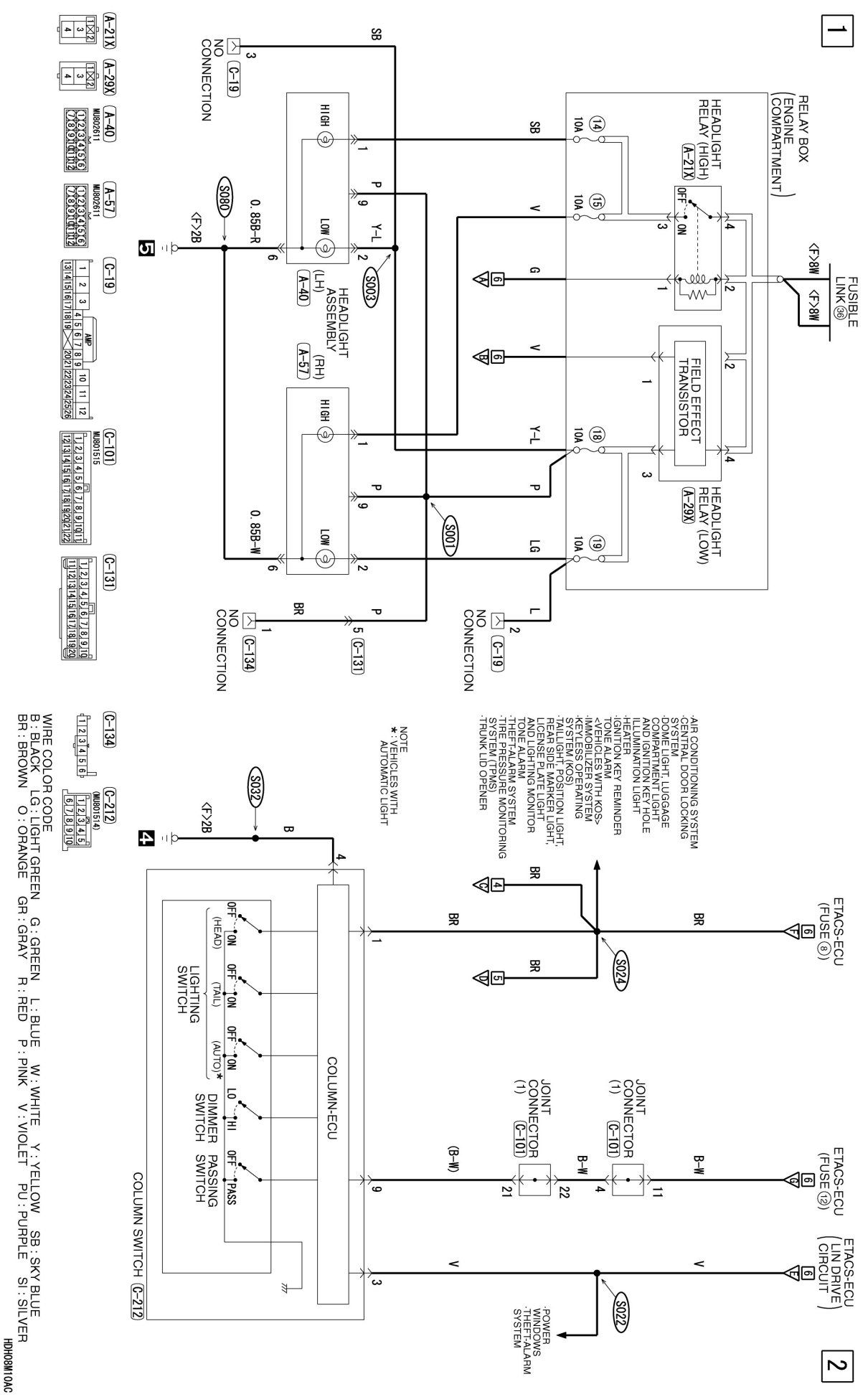

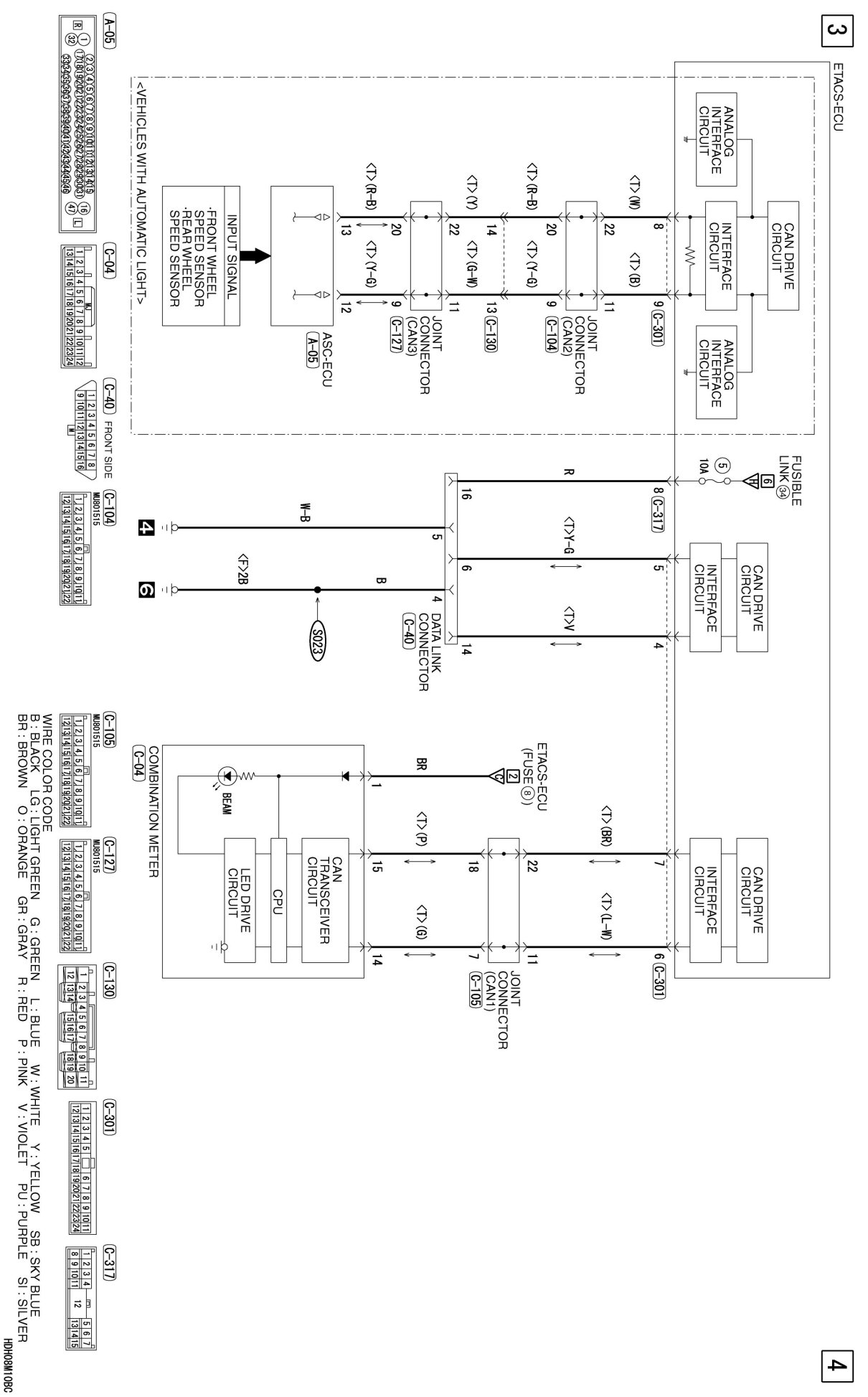

HEADLIGHT [HALOGEN TYPE]
