Home
>>
Mitsubishi
>>
2012
>>
Lancer Evolution L4-2.0L Turbo (4B11T/C)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Headlamp
>>
Headlight [Discharge Type]
Headlight [Discharge Type]

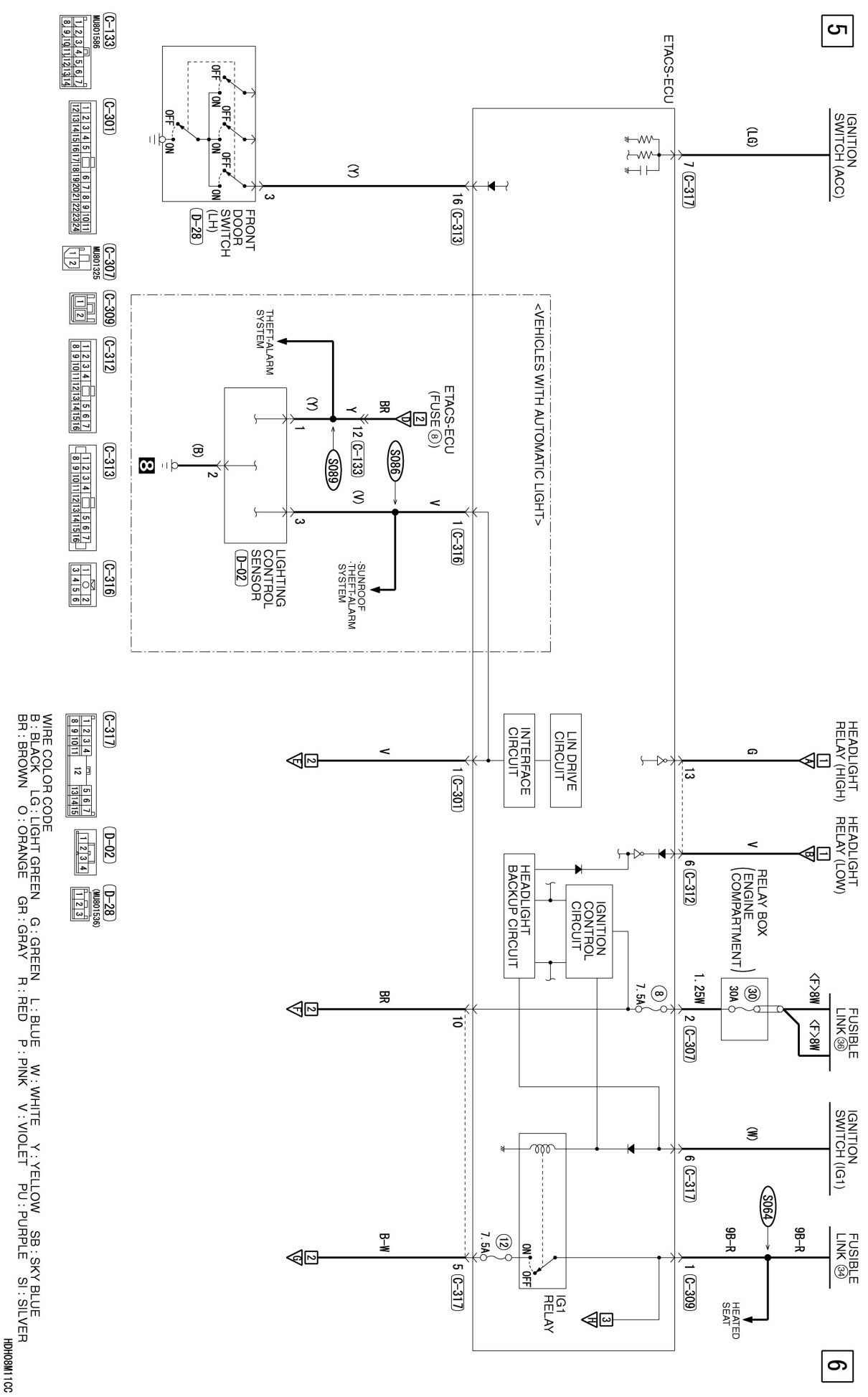

HEADLIGHT [DISCHARGE TYPE]
