Lancer Evolution L4-2.0L Turbo (4B11T/C)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Diagrams
>>
Mechanical Diagrams
Mechanical Diagrams

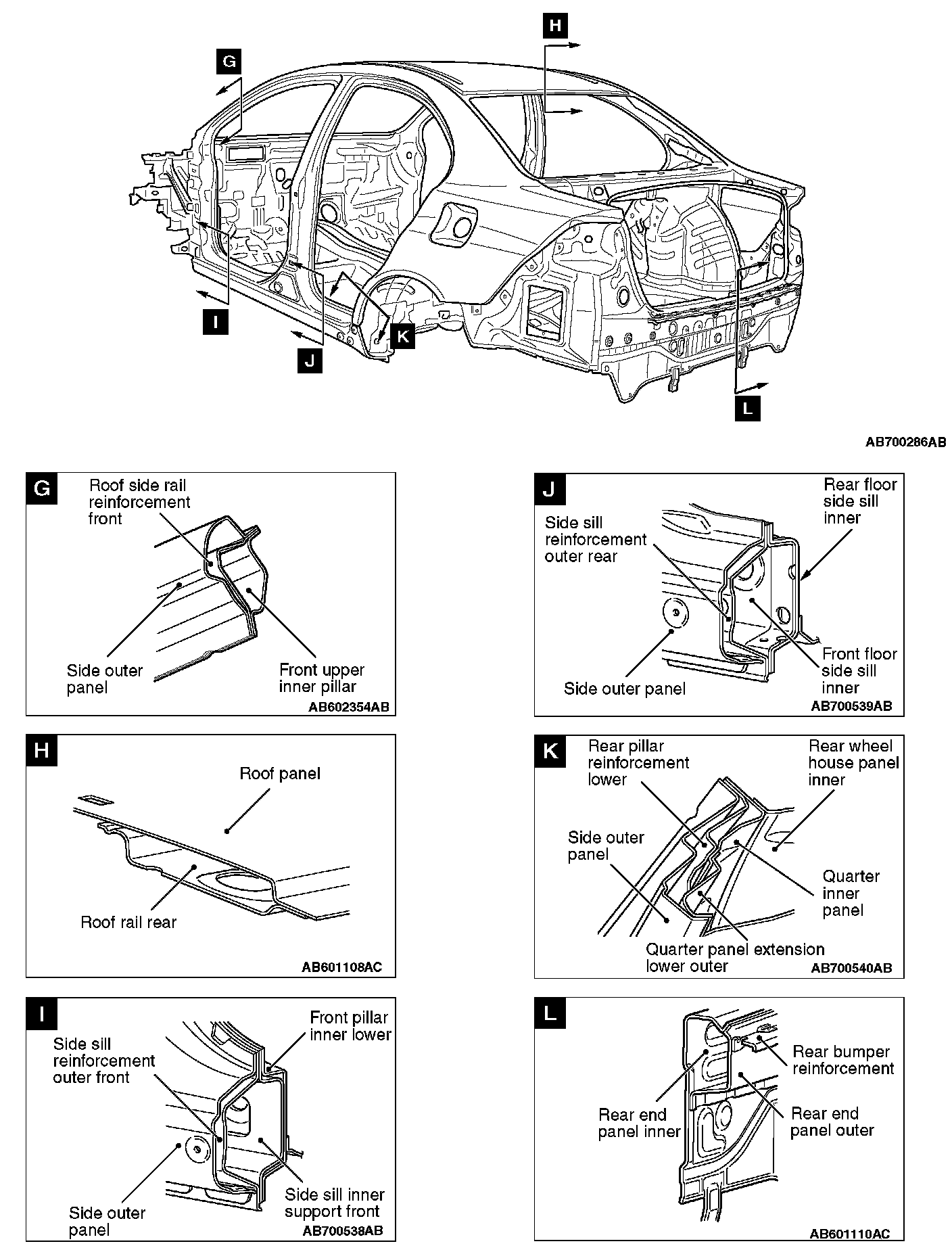

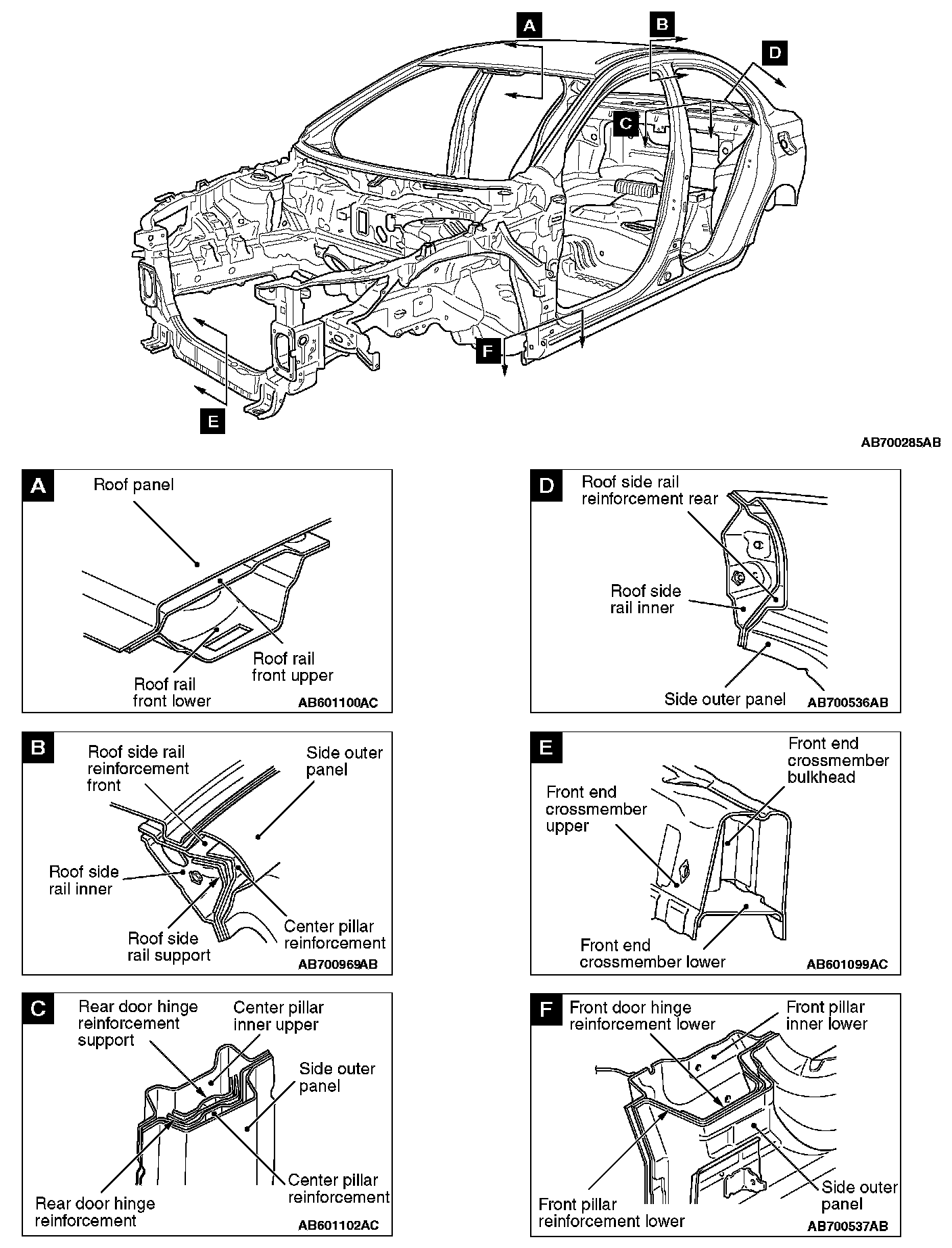

BODY MAIN CROSS-SECTIONAL VIEWS
