Home
>>
Mitsubishi
>>
2012
>>
Eclipse V6-3.8L (6G75)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

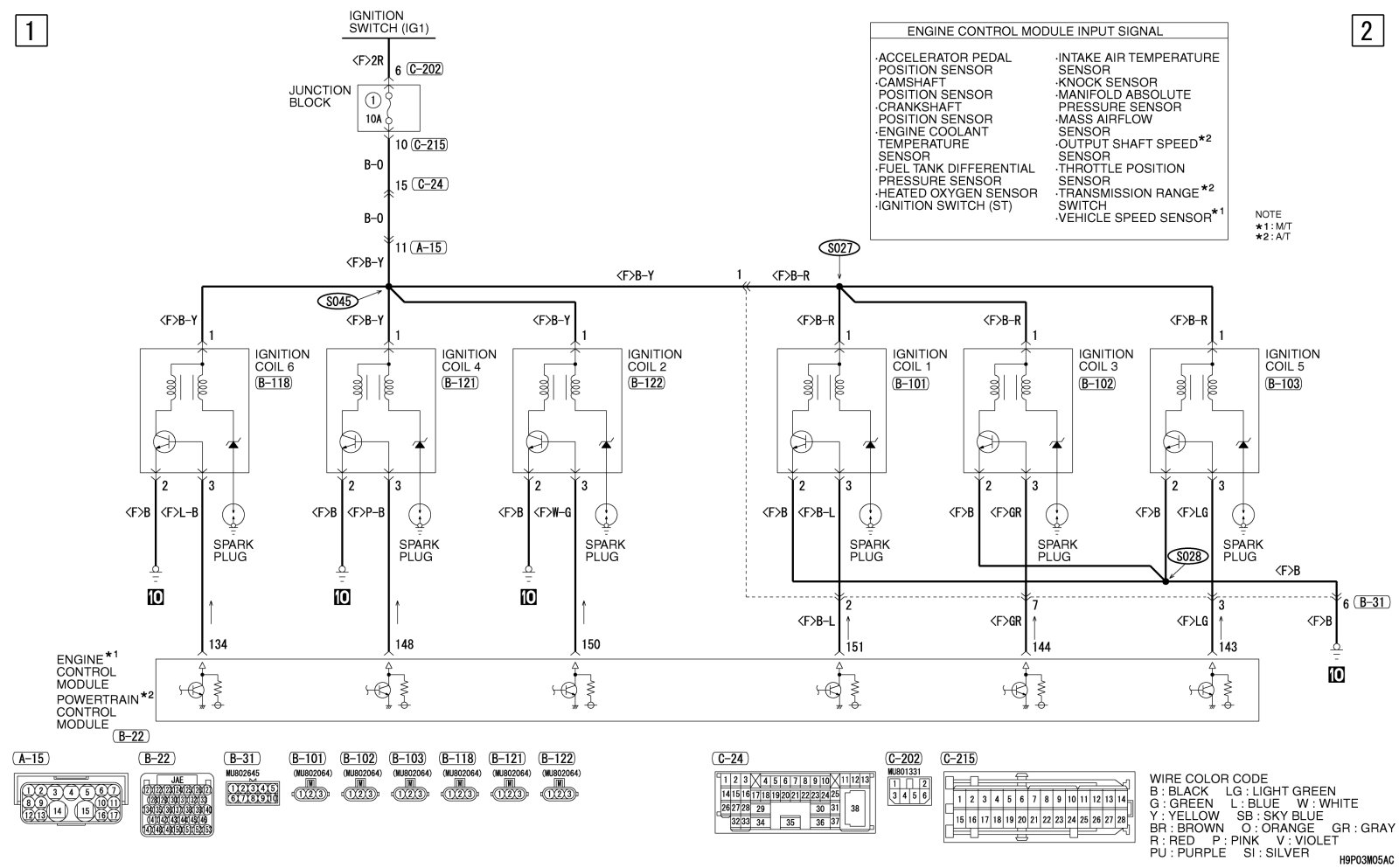

IGNITION SYSTEM
[3.8L ENGINE]
