Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2012
>>
Eclipse V6-3.8L (6G75)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Air Conditioning
Automatic Air Conditioning

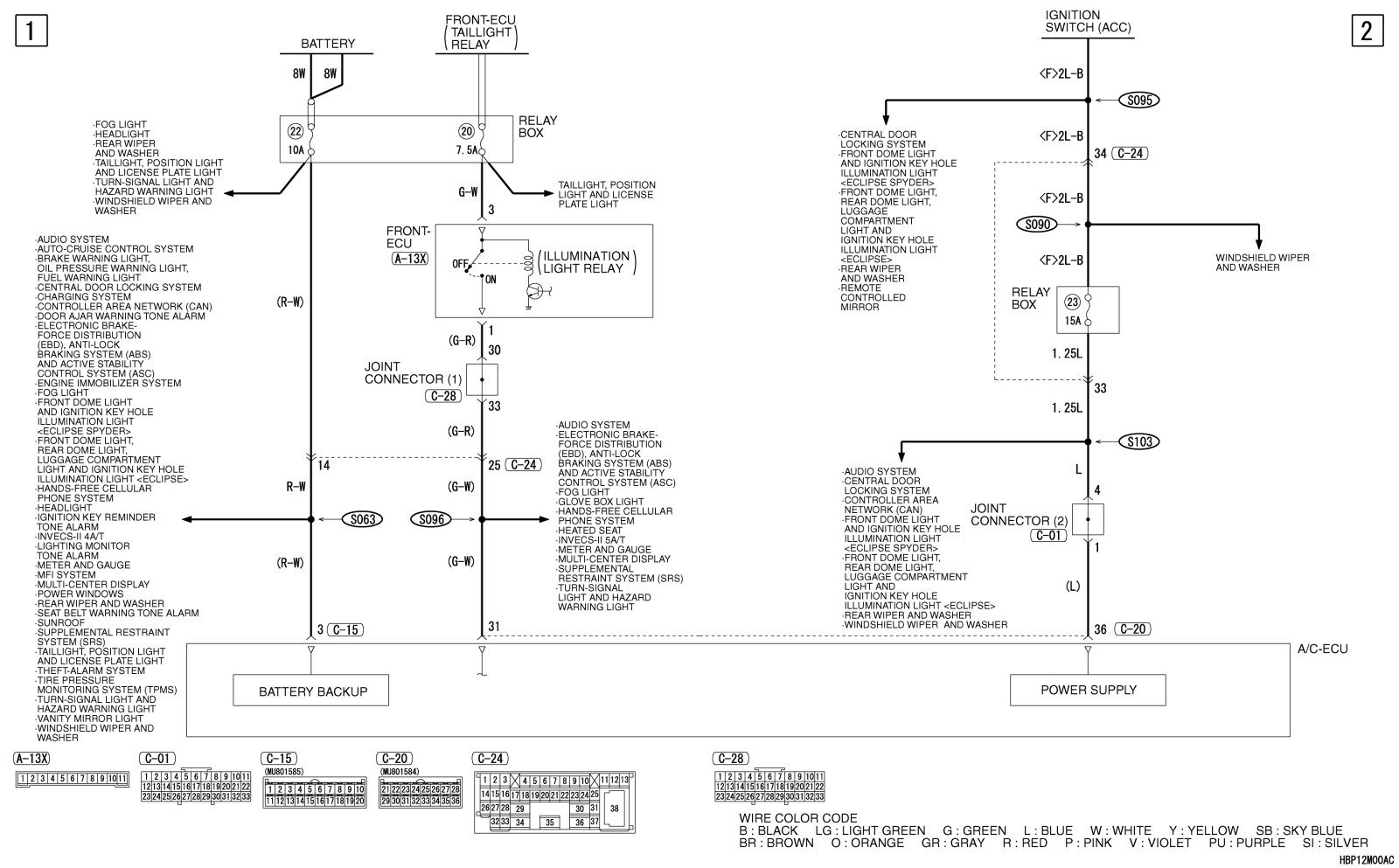

AUTOMATIC AIR CONDITIONING SYSTEM [3.8L ENGINE]
