Home >> Mitsubishi >> 2012 >> Eclipse V6-3.8L (6G75) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Fog/Driving Lamp >> Vehicles With Discharge Type Headlight

Vehicles With Discharge Type Headlight

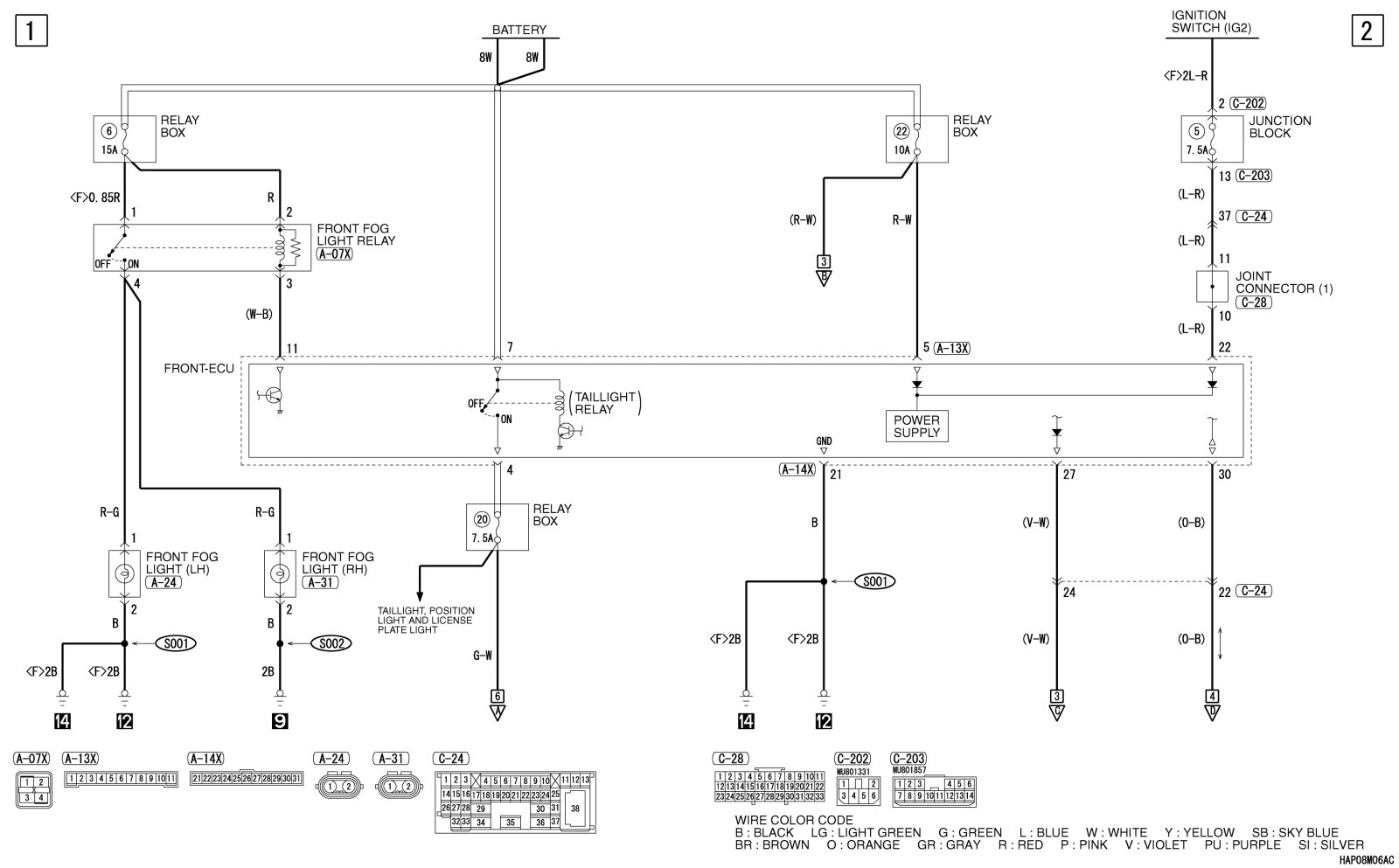

FOG LIGHT [VEHICLES WITH DISCHARGE TYPE HEADLIGHT]
