Home >> Mitsubishi >> 2012 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Wiper and Washer Systems >> Diagrams >> Electrical Diagrams >> Windshield Wiper and Washer >> A/T

A/T

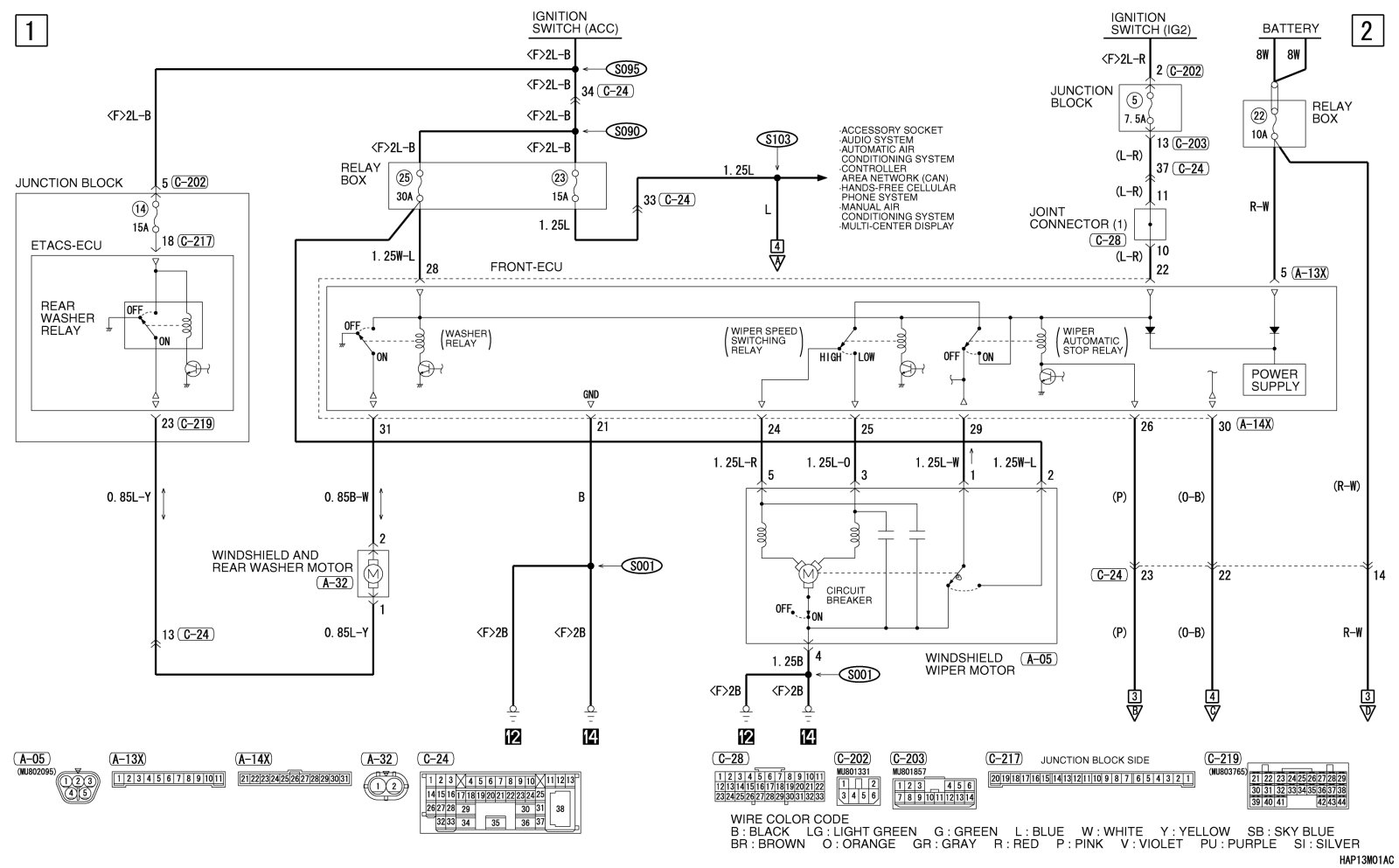

WINDSHIELD WIPER AND WASHER [ECLIPSE-A/T]
