Home
>>
Mitsubishi
>>
2012
>>
Eclipse L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
Vehicles With Discharge Type Headlight
Vehicles With Discharge Type Headlight

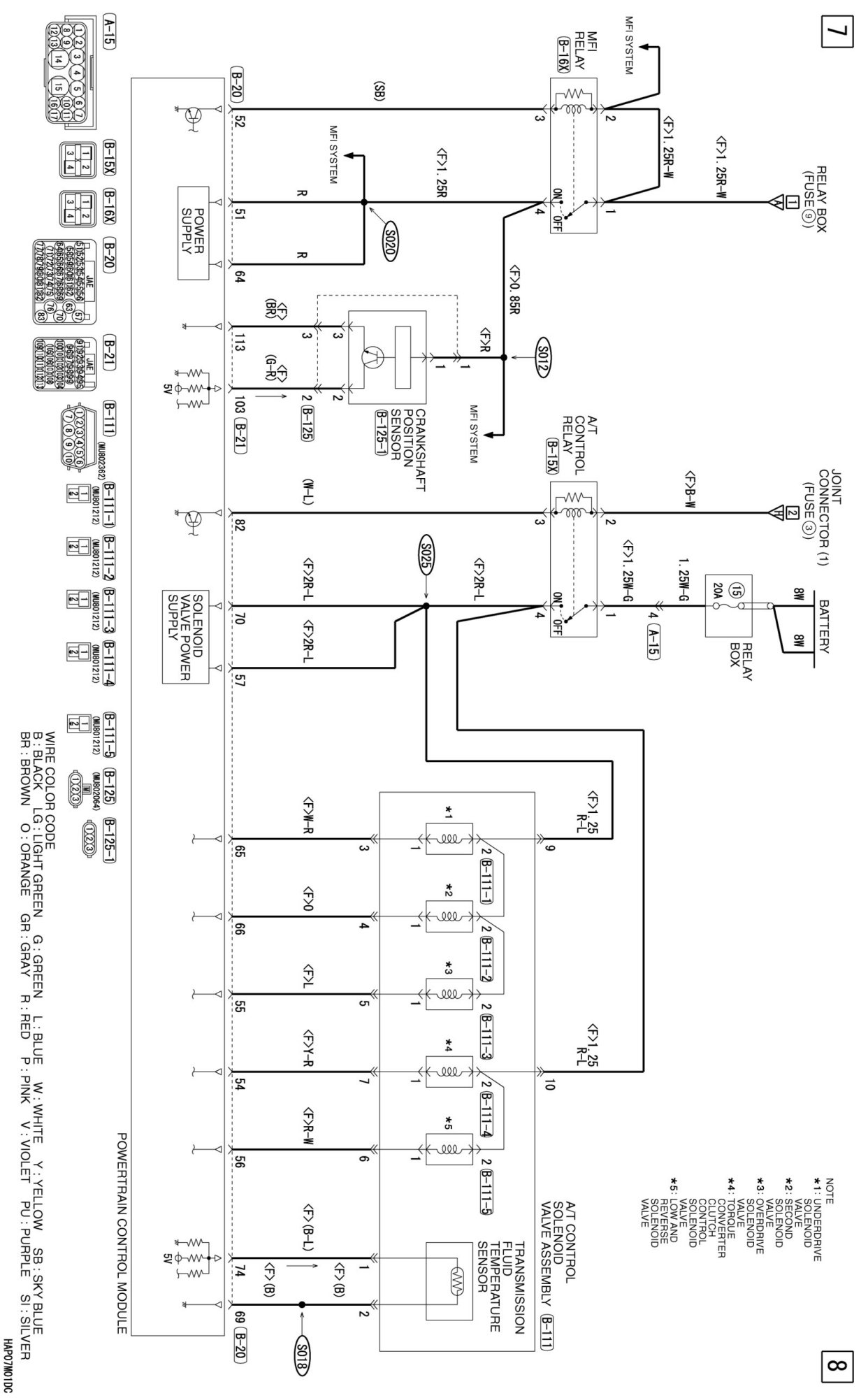

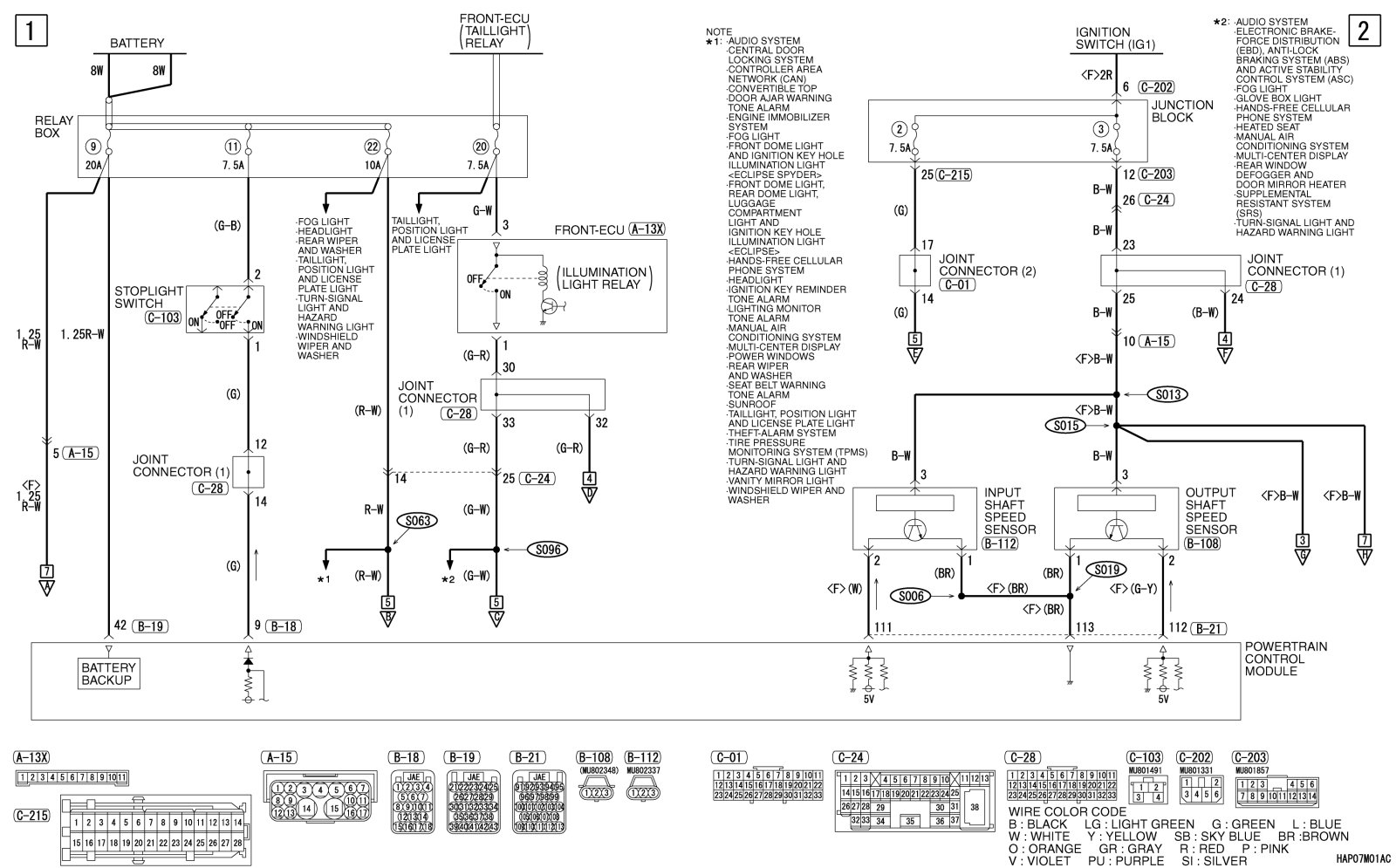

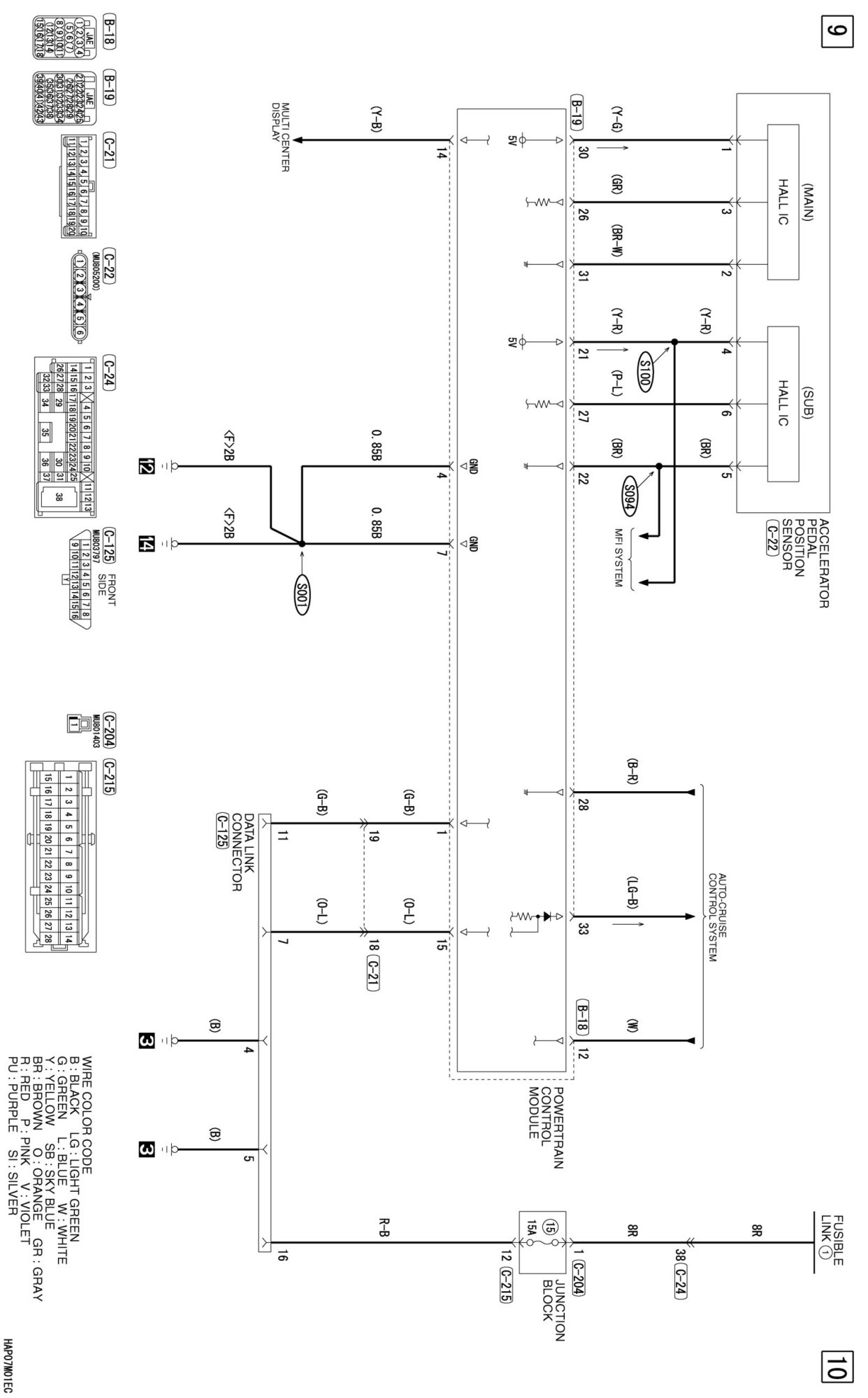

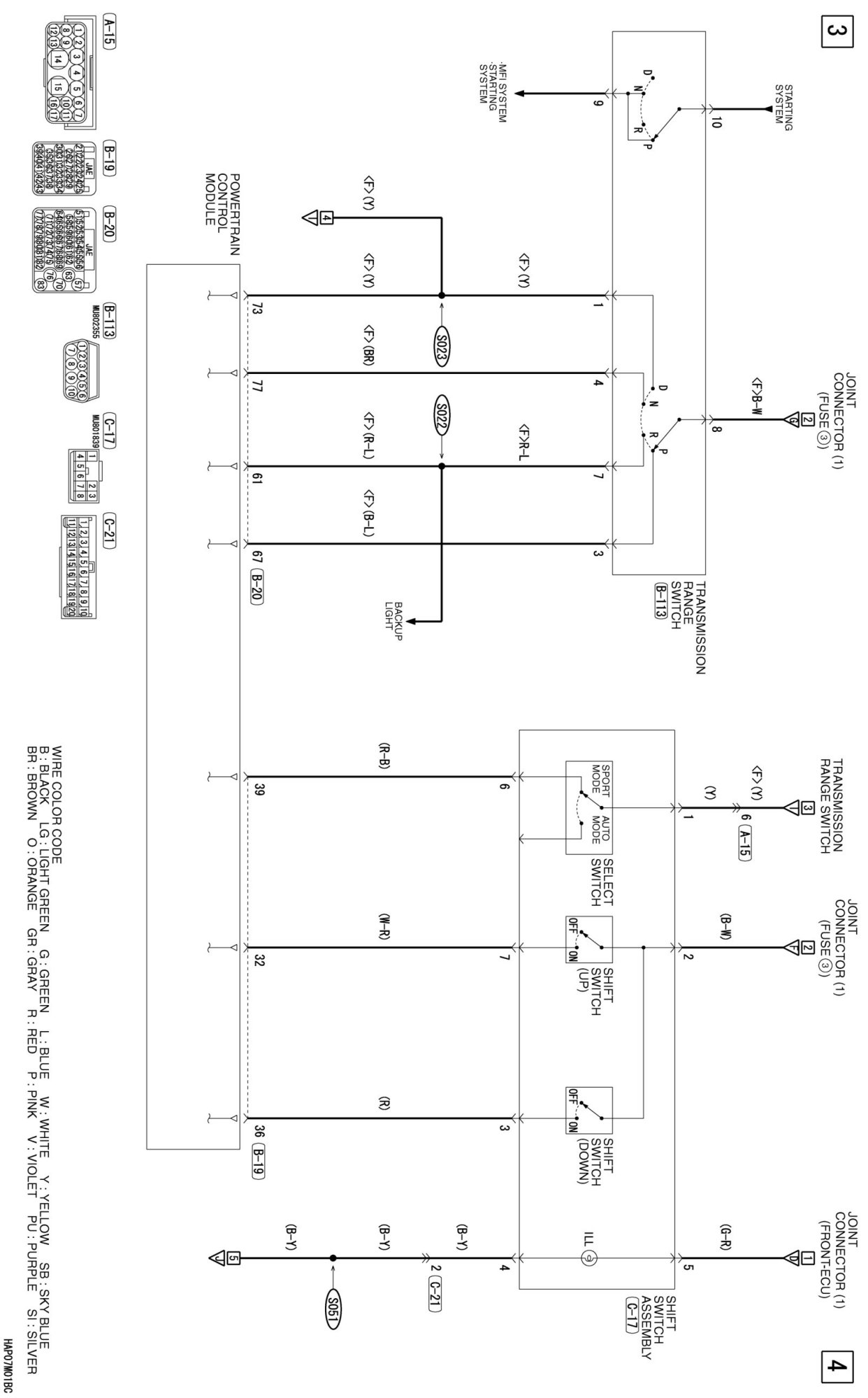

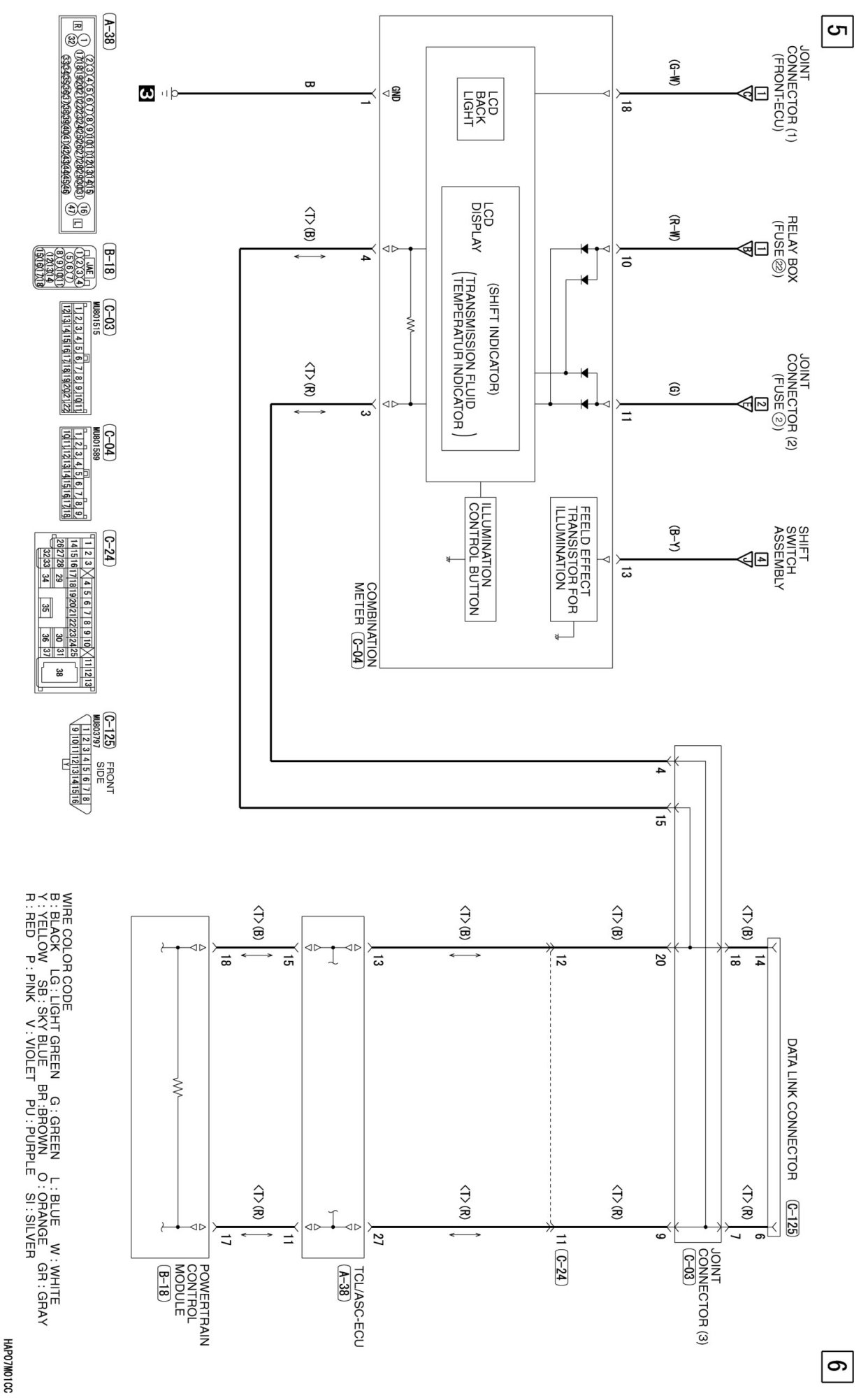

INVECS-II 4A/T [2.4L ENGINE (VEHICLES WITH DISCHARGE TYPE HEADLIGHT)]
