Removal and Replacement

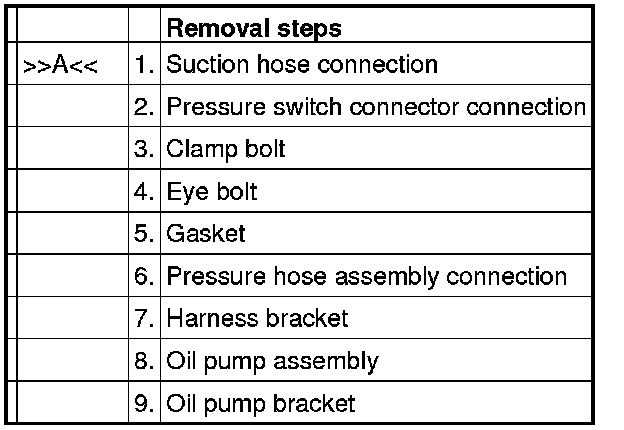

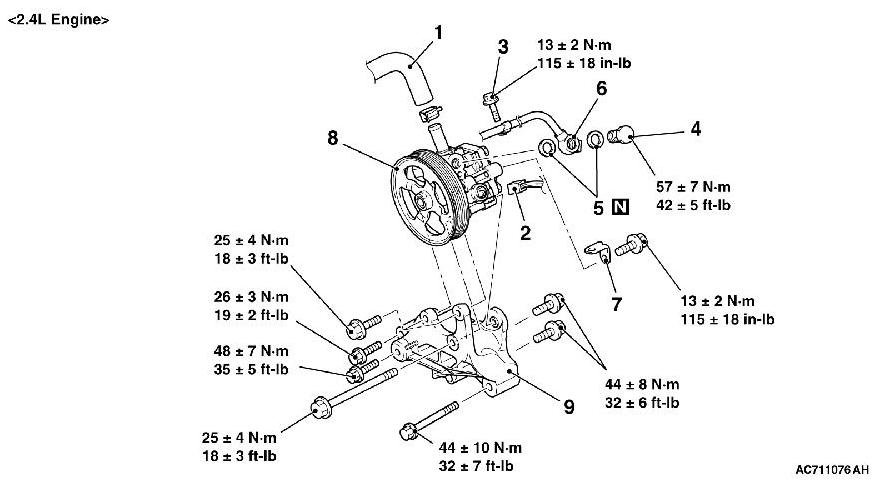

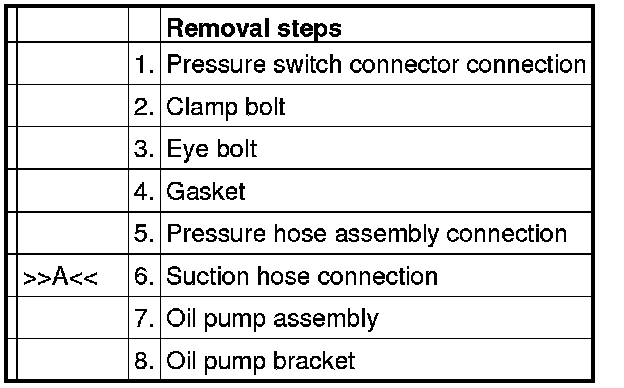

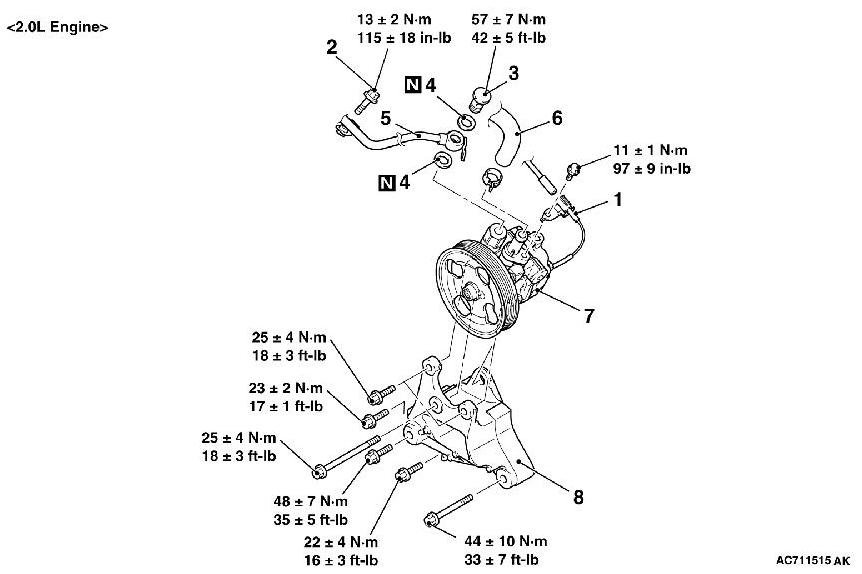

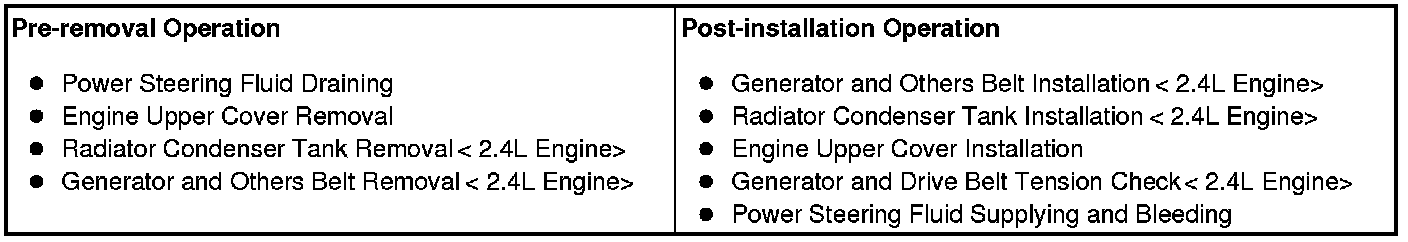

REMOVAL AND INSTALLATION























INSTALLATION SERVICE POINT

]]A[[ SUCTION HOSE CONNECTION









Align the suction hose marking within the area shown in the figure and connect the suction hose.
