Mitsubishi
>>
2011
>>
Lancer L4-2.4L (4B12)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>

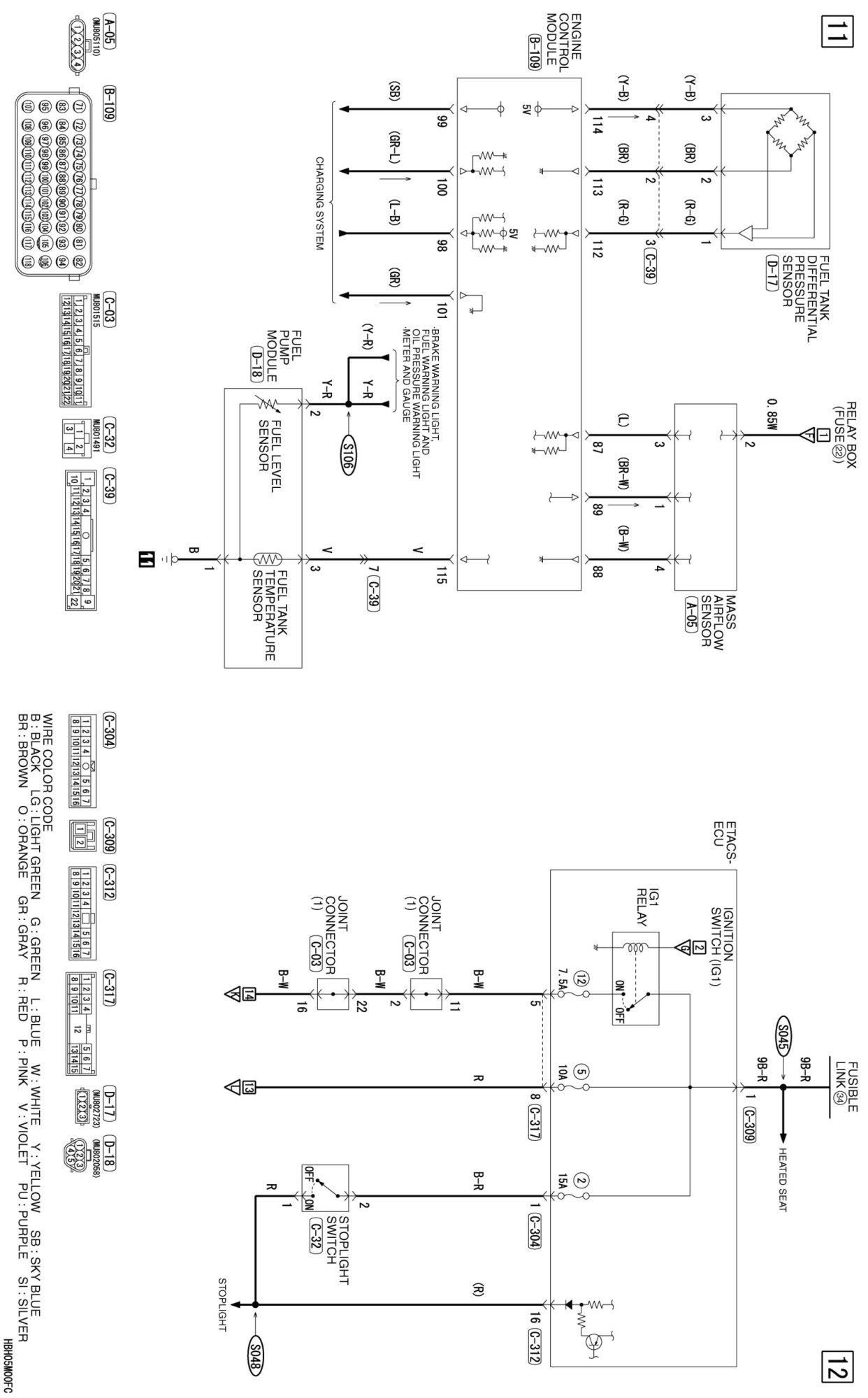

Electrical Diagrams
Electrical Diagrams
MFI SYSTEM [NON-
TURBO
]
