Automatically Shifted Manual Transmission/Transaxle
>>

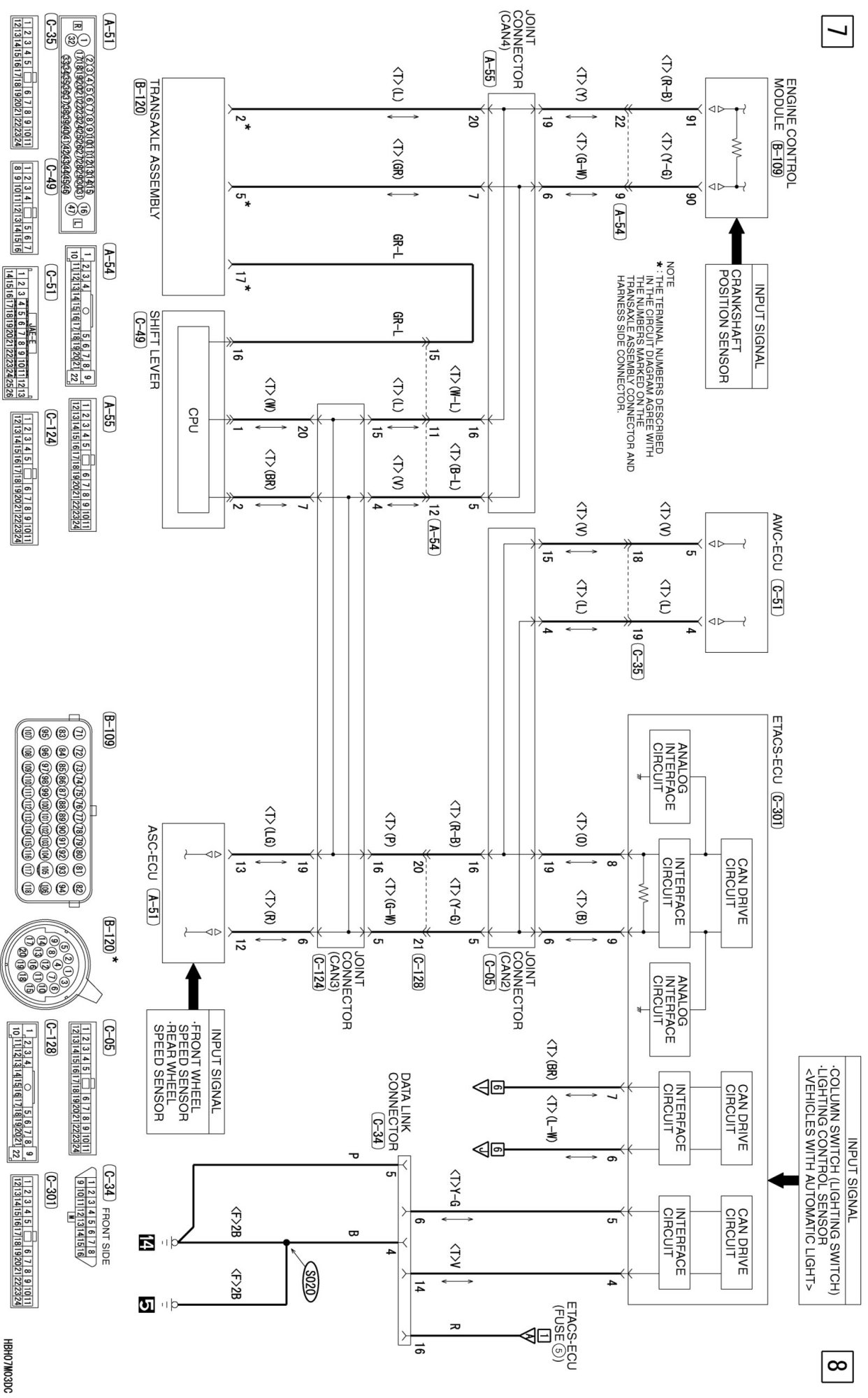

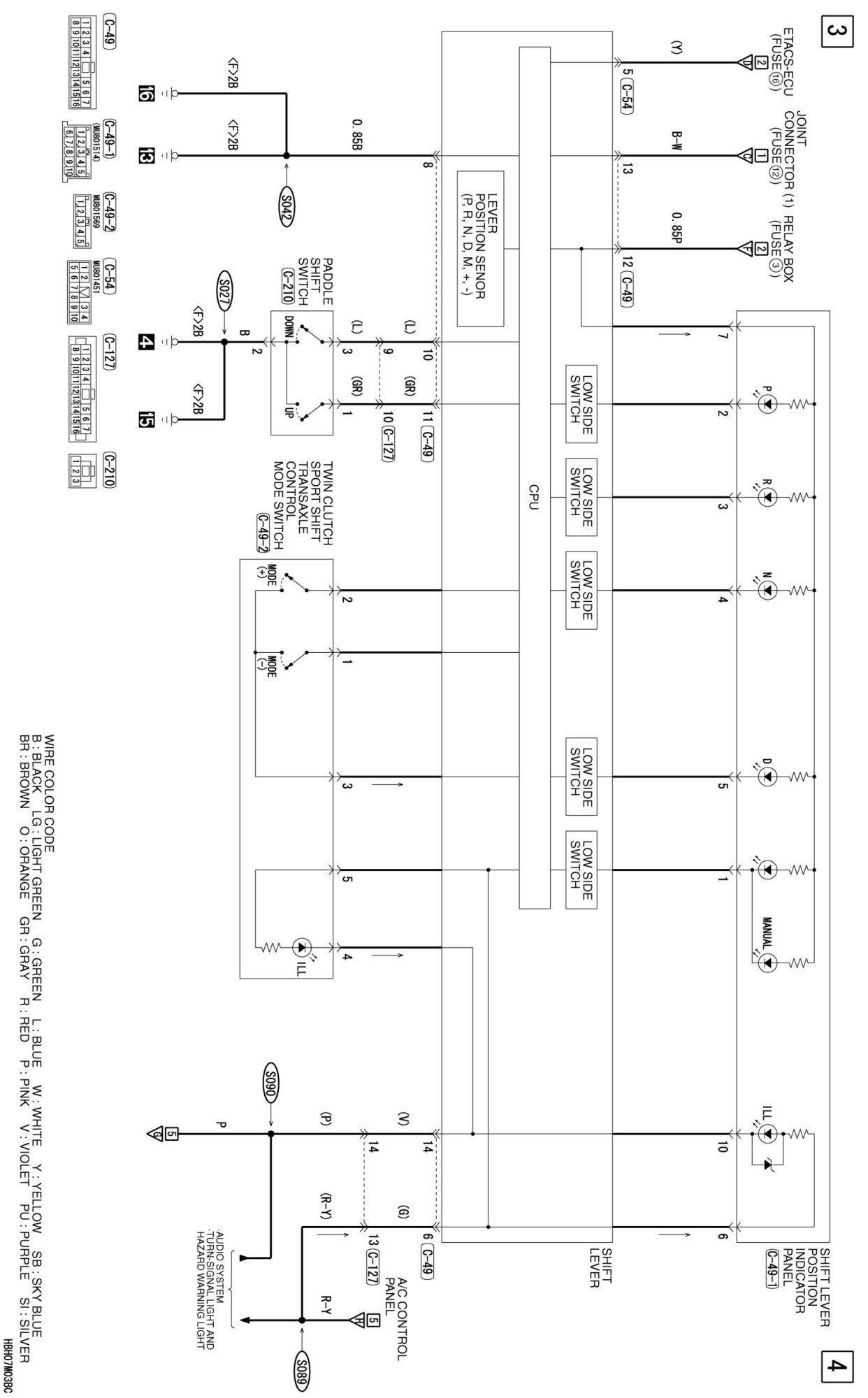

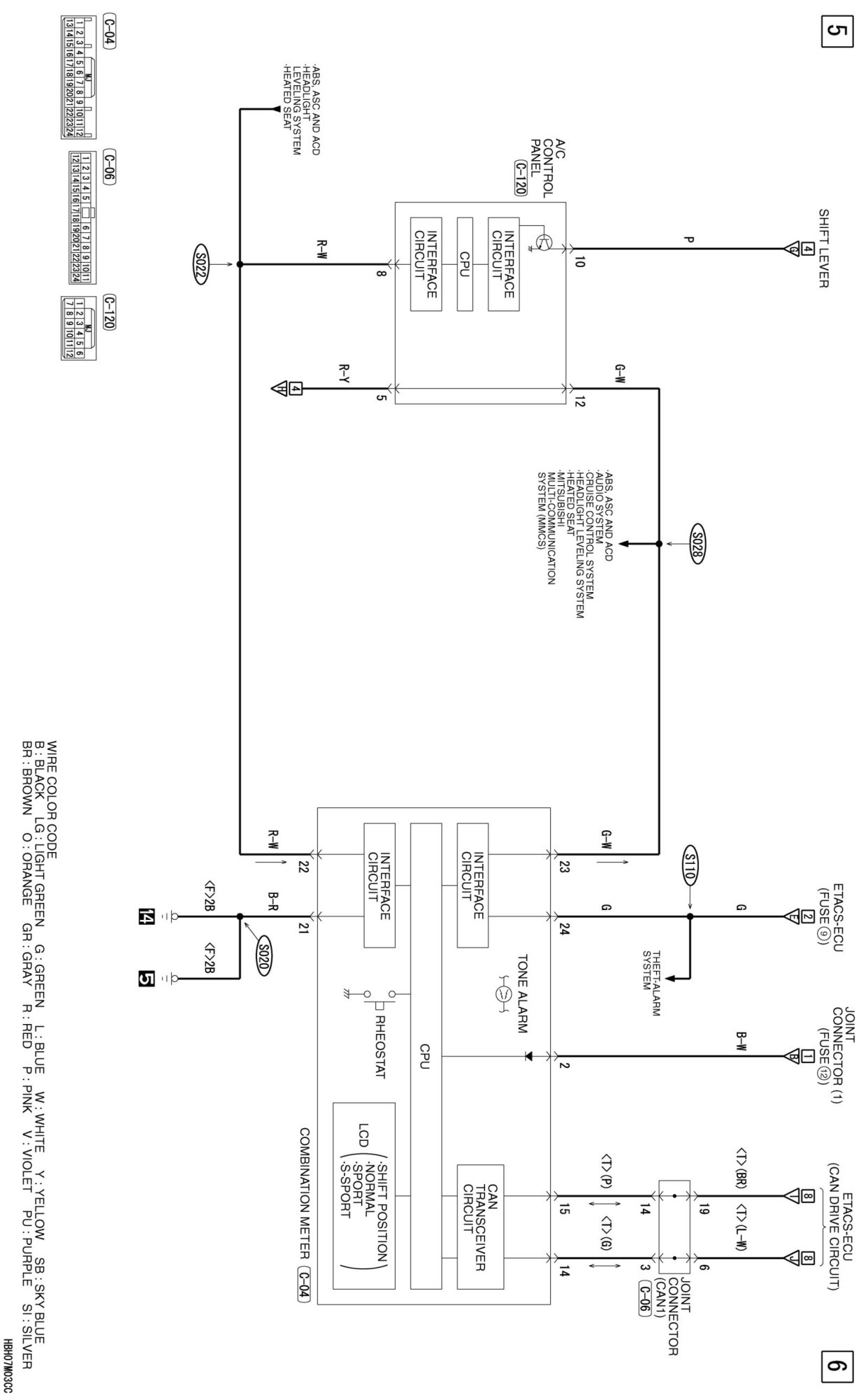

System Diagram
System Diagram
TWIN CLUTCH-SPORTRONIC SHIFT TRANSMISSION (TC-SST)
