Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2011
>>
Lancer L4-2.4L (4B12)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
Entertainment Systems
>>

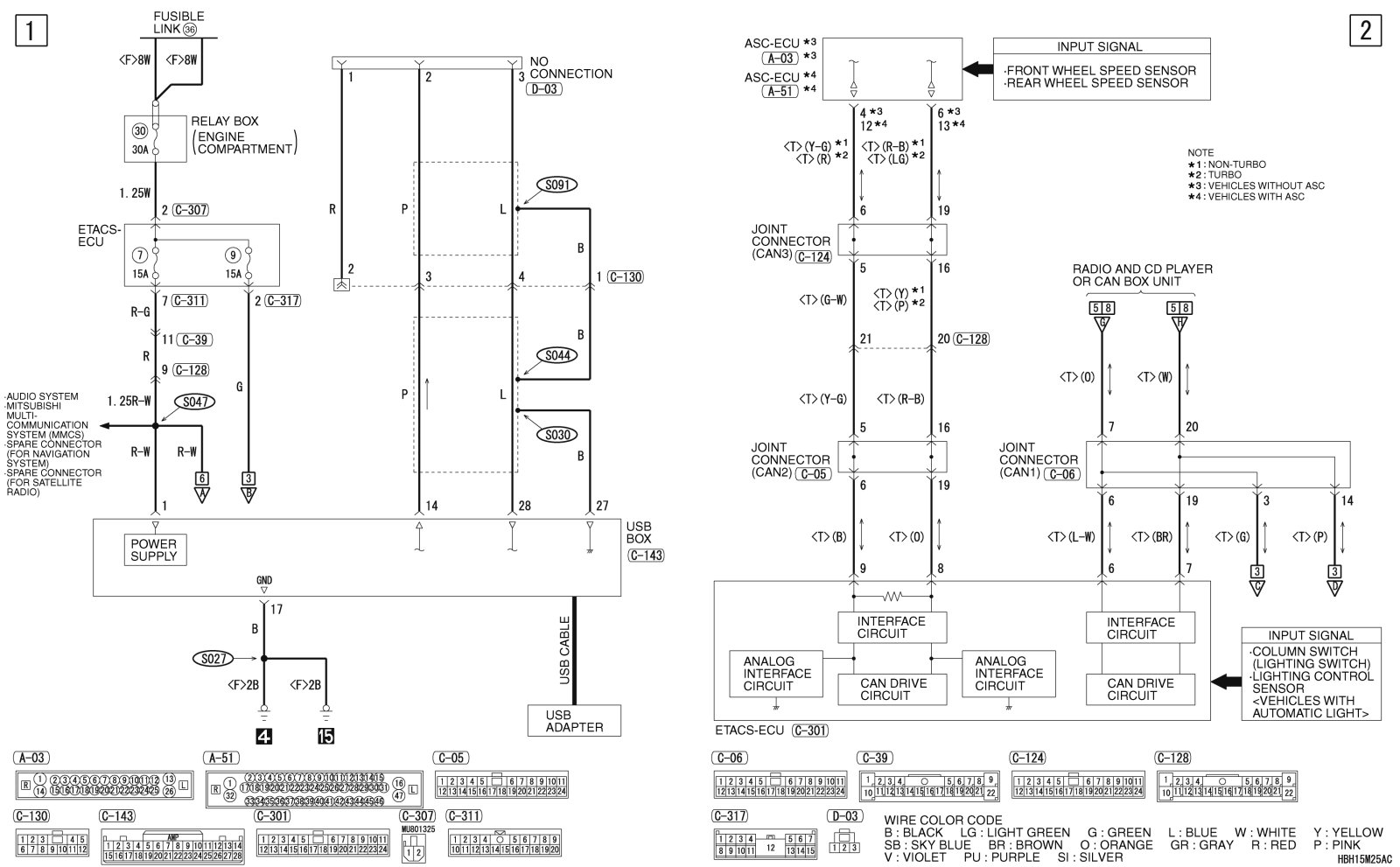

System Diagram
System Diagram
UNIVERSAL SERIAL BUS (USB) BOX
