Mitsubishi
>>
2011
>>
Lancer L4-2.0L (4B11)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Continuously Variable Transmission/Transaxle, CVT
>>
Sectional View
Sectional View

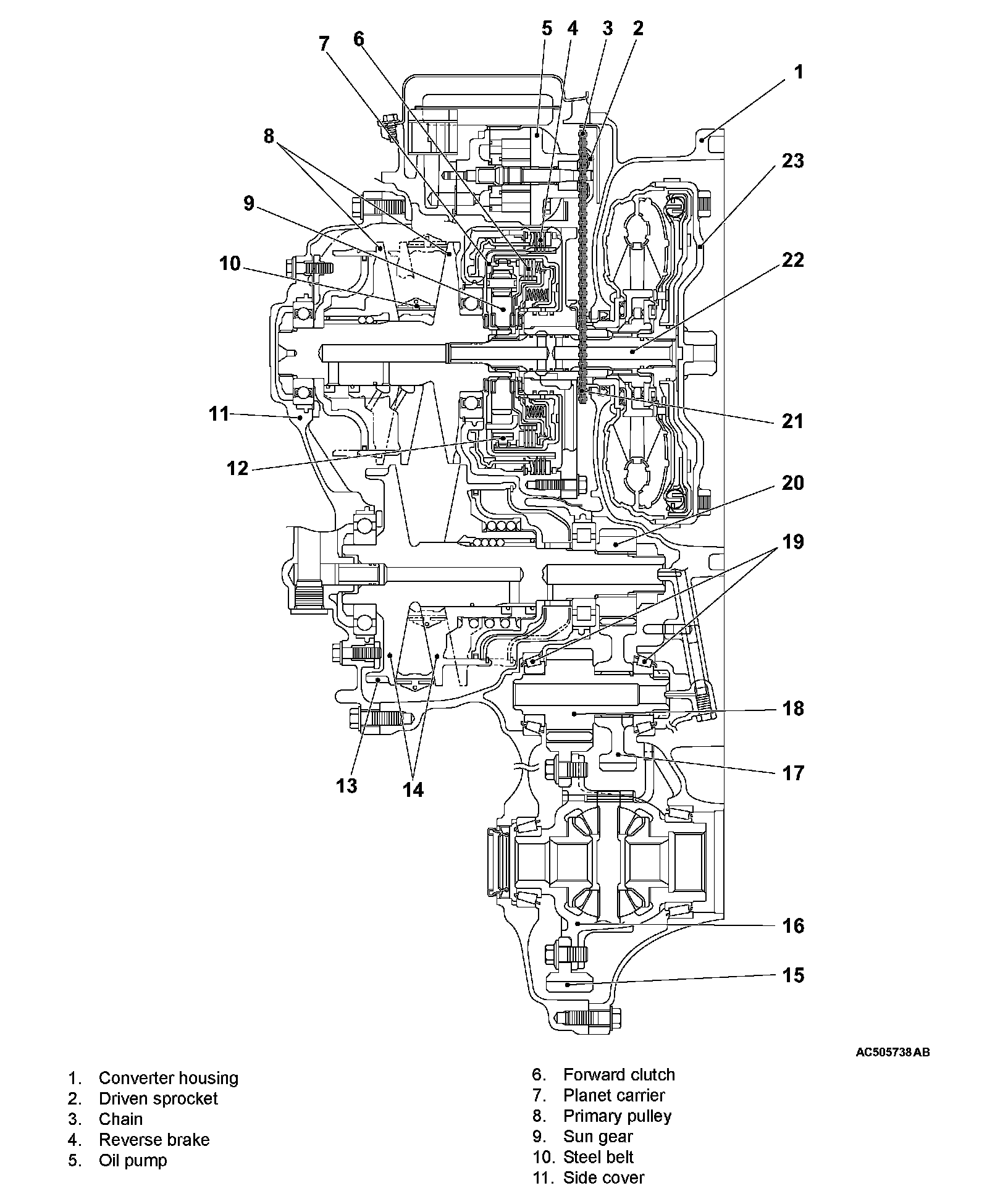

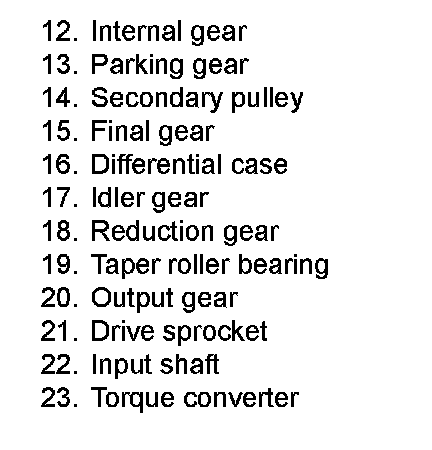

SECTIONAL VIEW
