Transmission Position Sensor/Switch
>>
Locations
>>

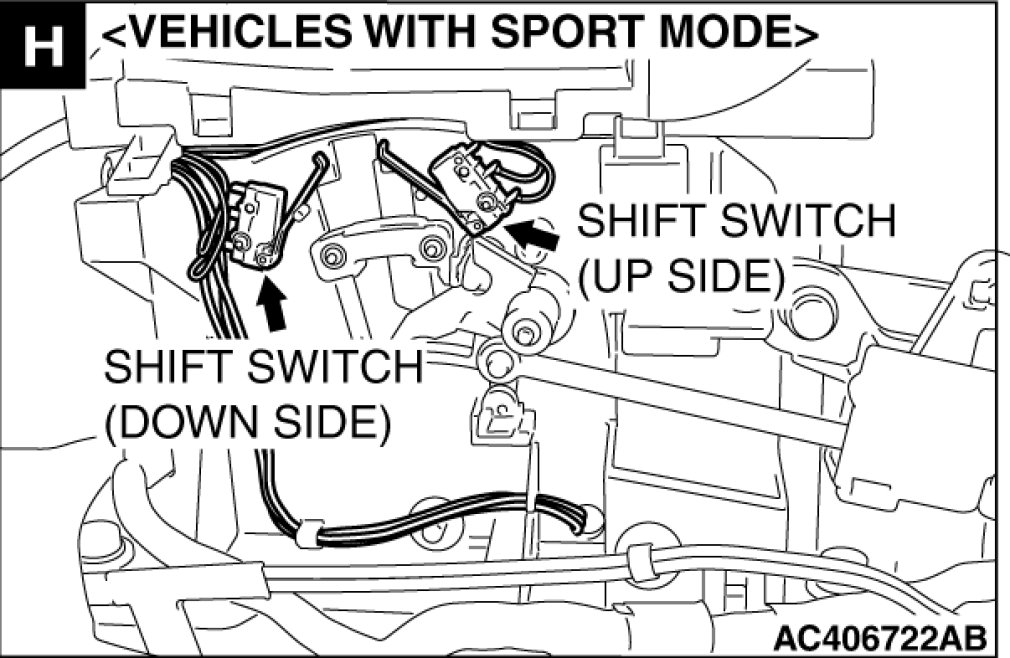

Shift Switch
Shift Switch

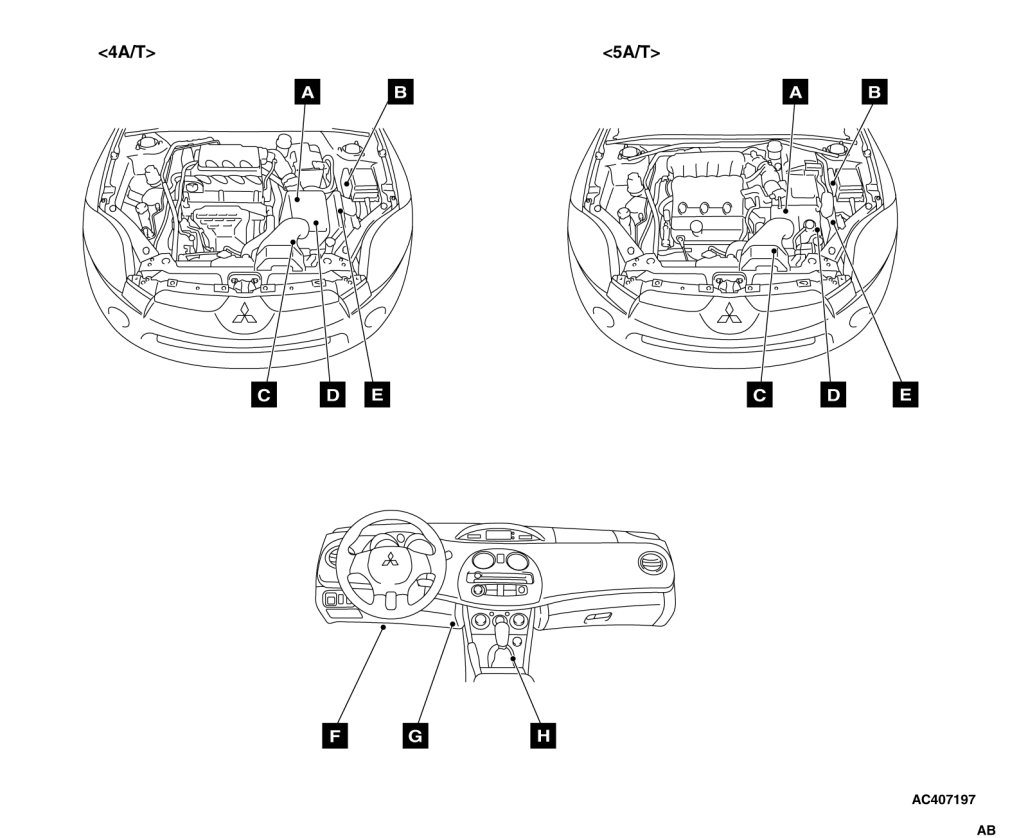

A/T CONTROL COMPONENT LAYOUT
