Eclipse Spyder V6-3.8L (6G75)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Vehicles With Discharge Type Headlight
Vehicles With Discharge Type Headlight

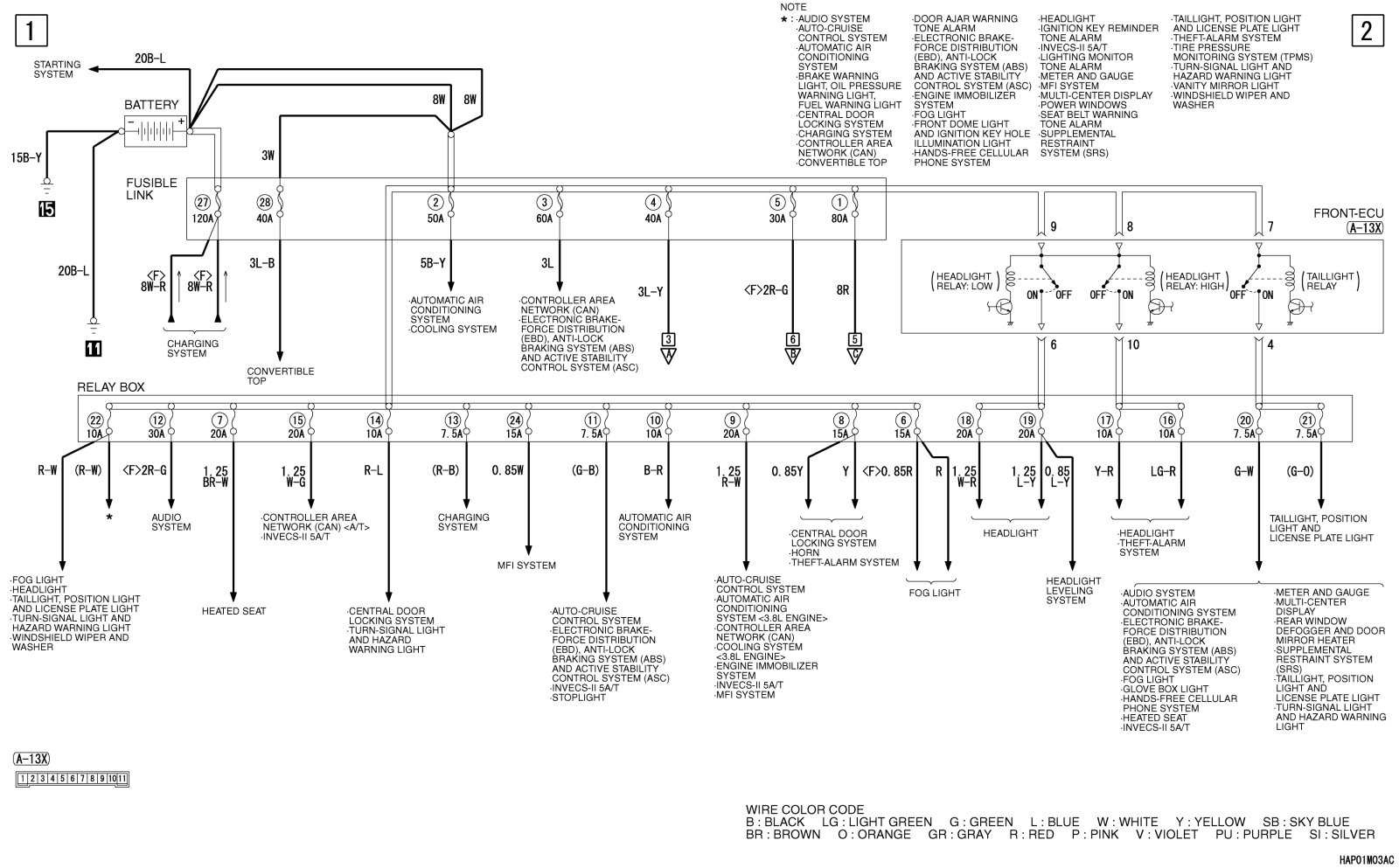

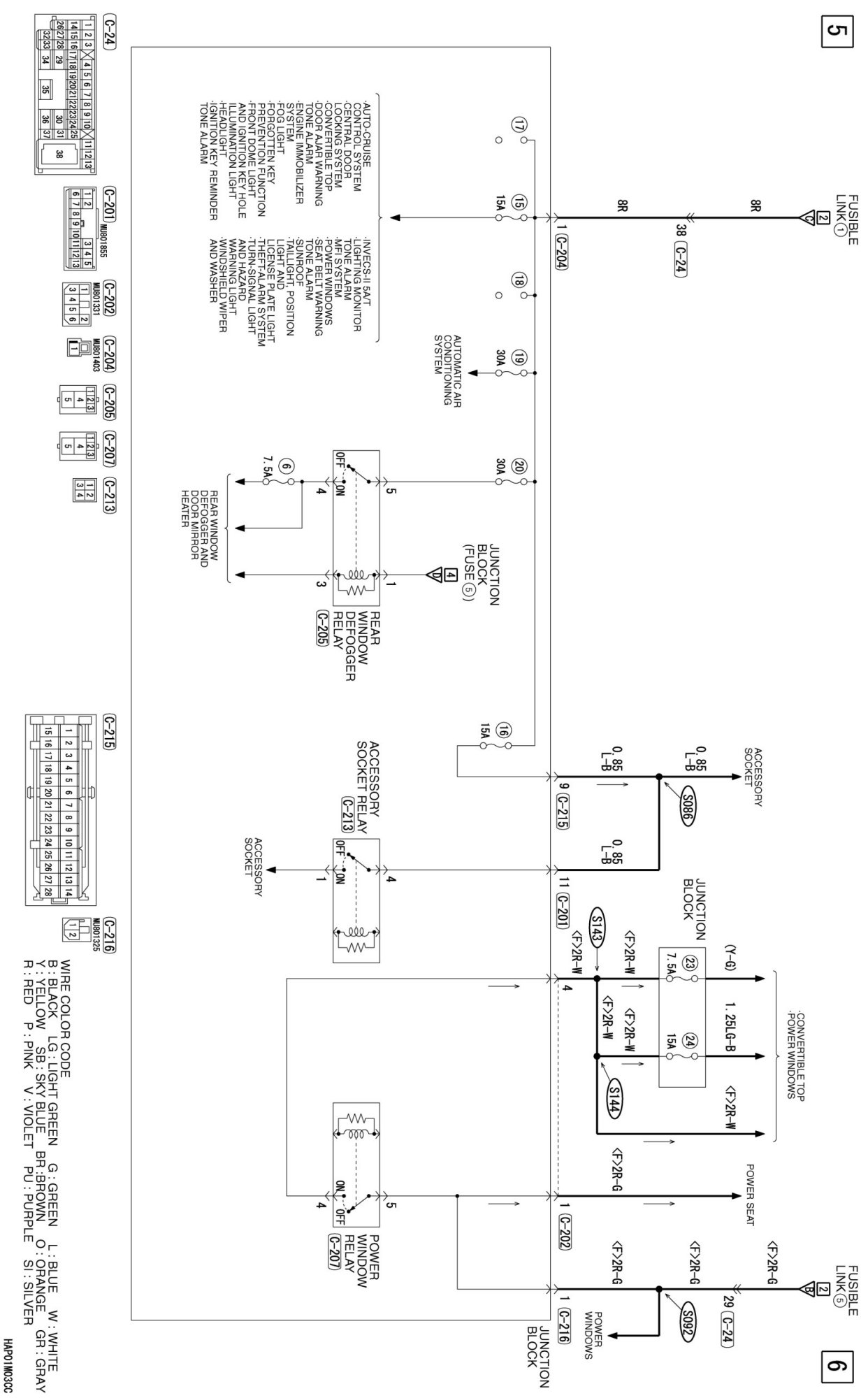

POWER DISTRIBUTION SYSTEM [ECLIPSE SPYDER (VEHICLES WITH DISCHARGE TYPE HEADLIGHT)]
