Key Cylinder Lamp
Key Cylinder Lamp

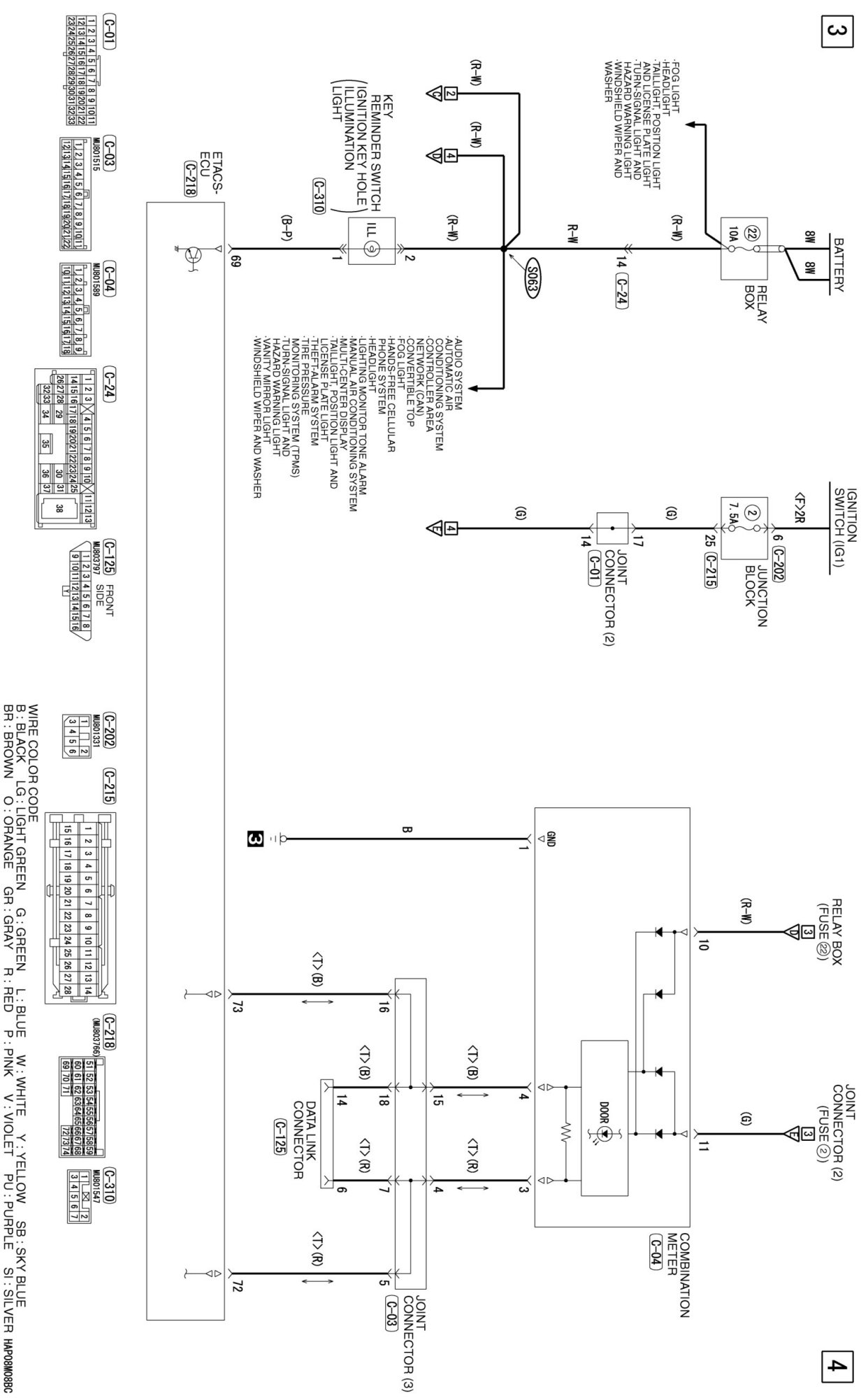

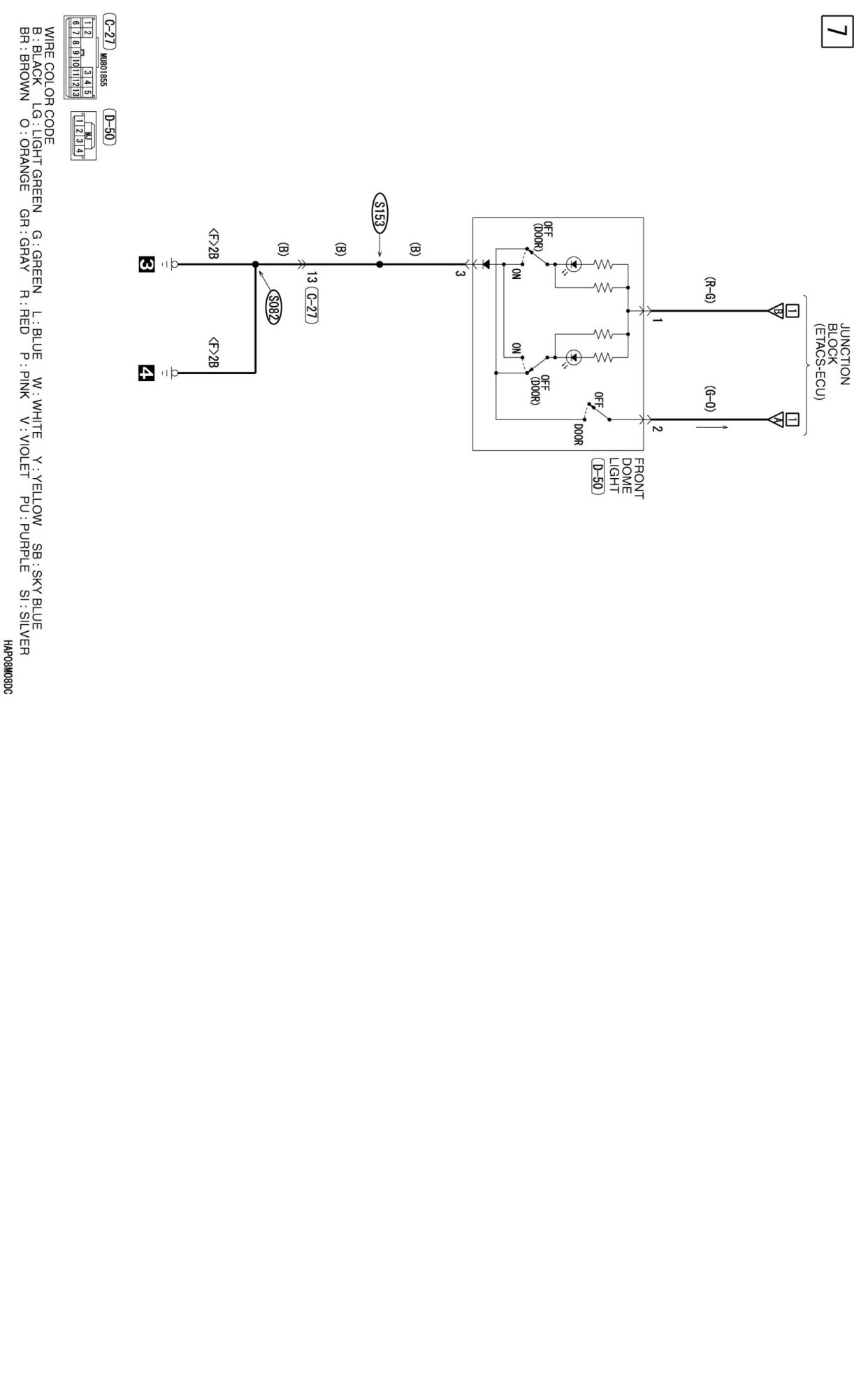

FRONT DOME LIGHT AND IGNITION KEY HOLE ILLUMINATION LIGHT [ECLIPSE SPYDER]
