Removal and Replacement

POWER STEERING OIL PUMP ASSEMBLY

REMOVAL AND INSTALLATION

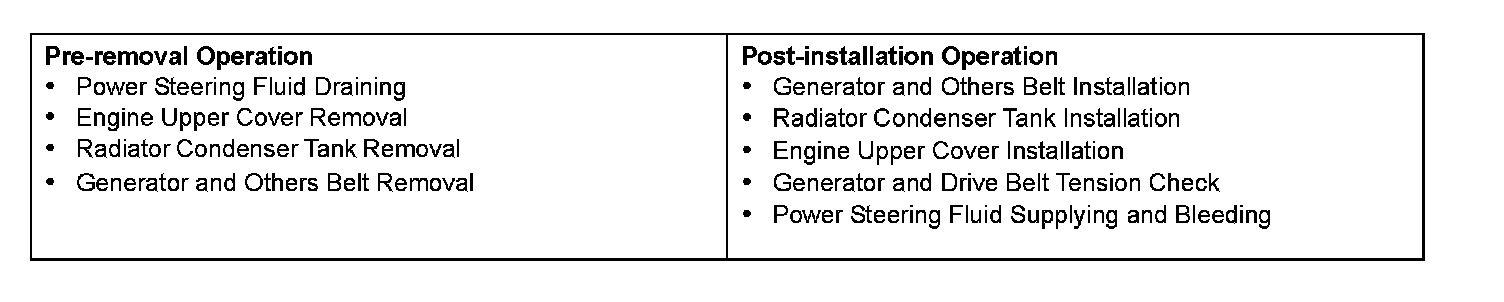

Pre-removal & Post-installation Operation:

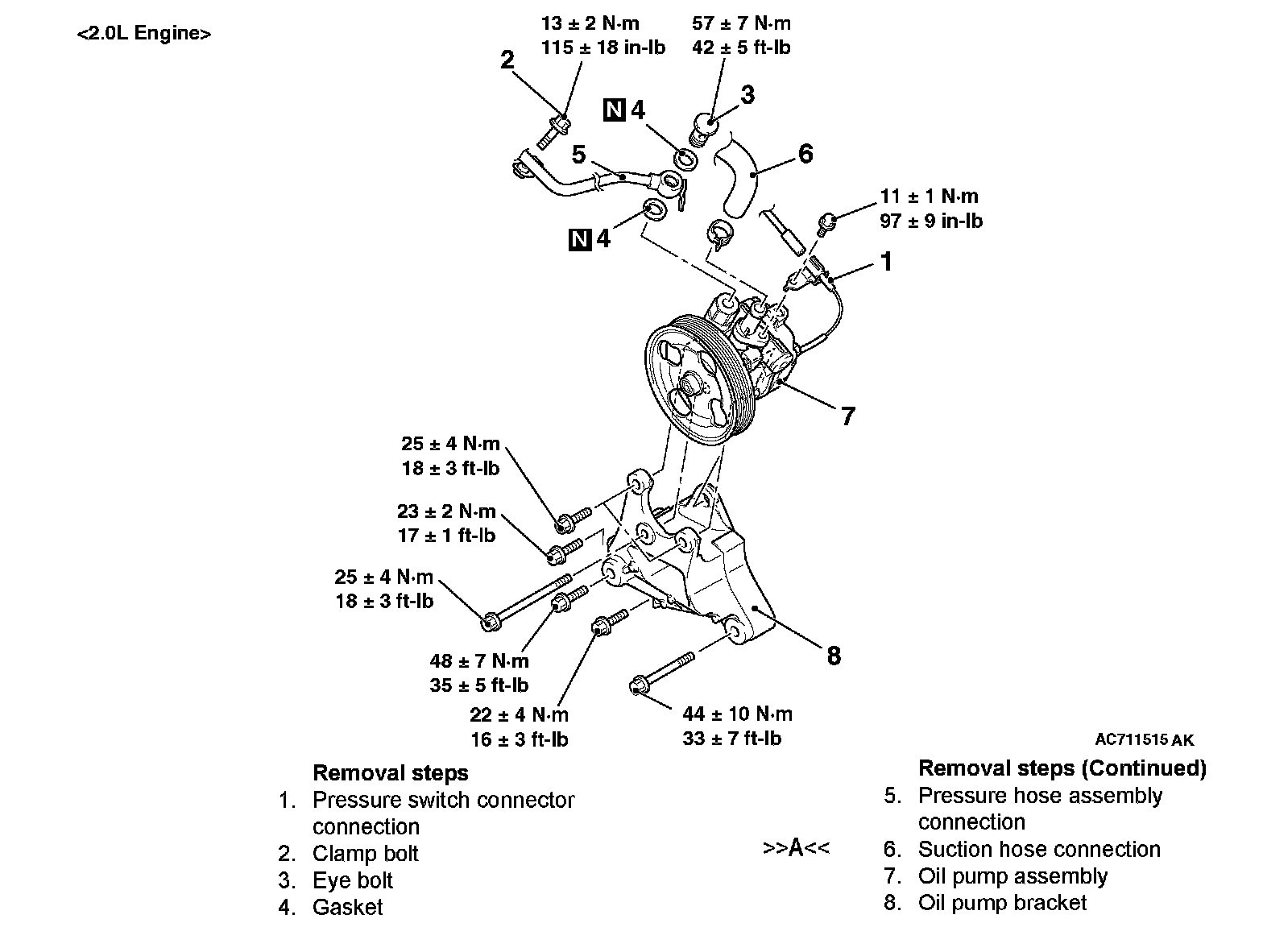

Removal Steps 1-8:

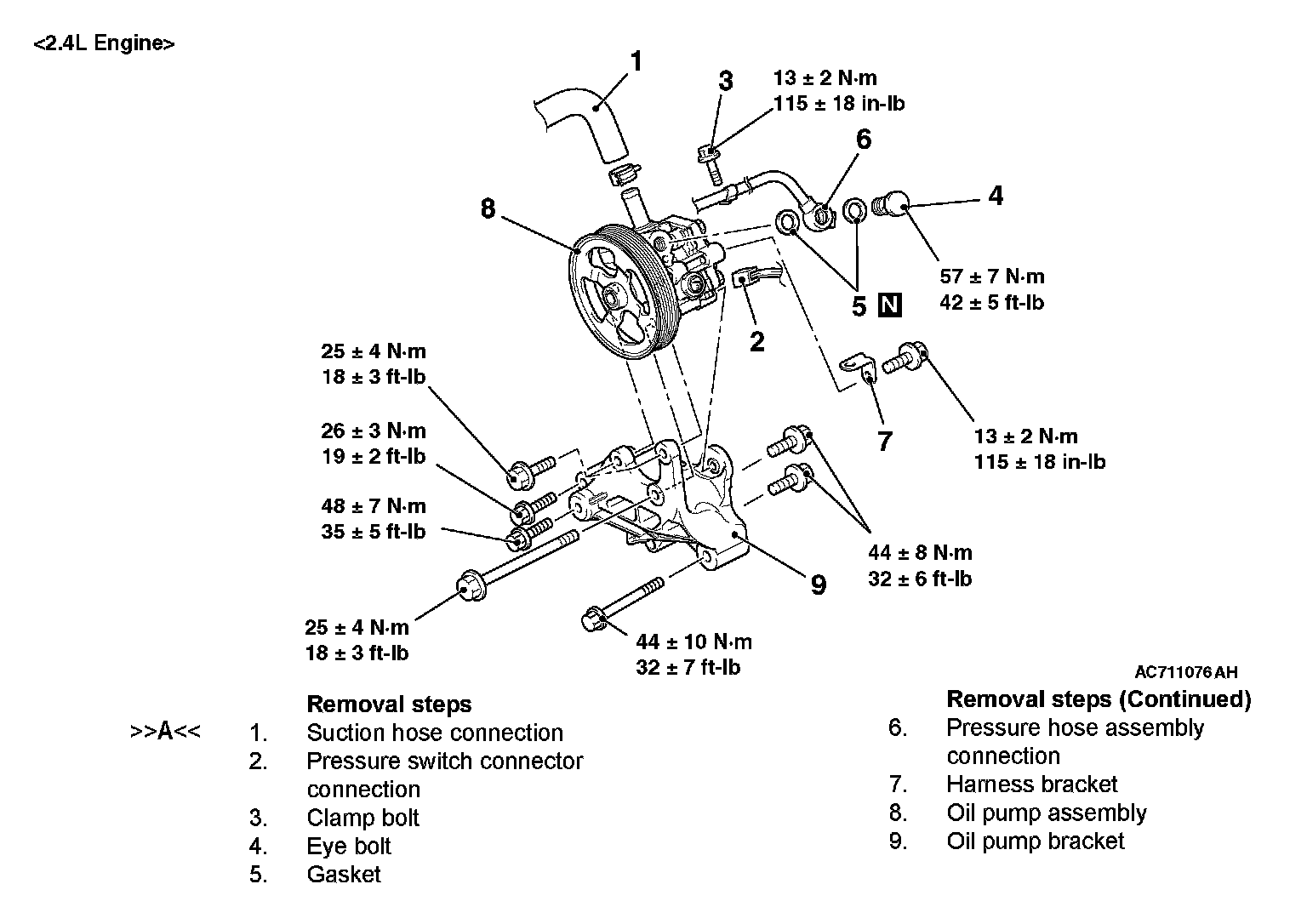

Removal Steps 1-9:





INSTALLATION SERVICE POINT

[A] SUCTION HOSE CONNECTION

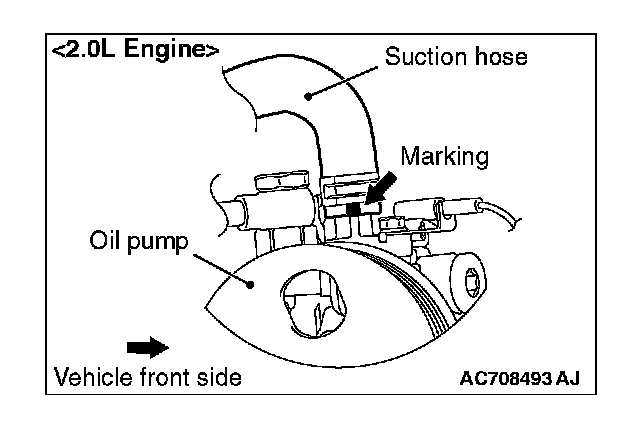

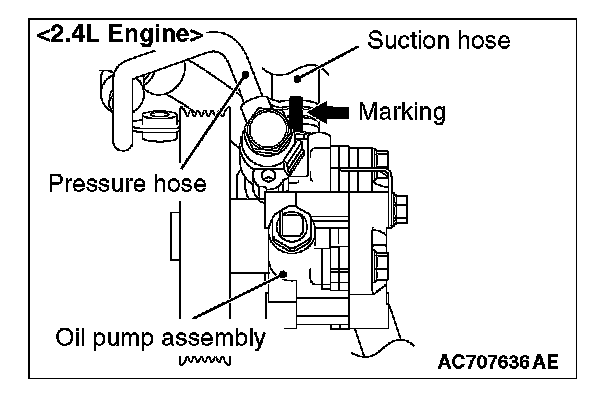

Align the suction hose marking within the area shown in the figure and connect the suction hose.
