Locations
>>
Connector Locations
Connector Locations

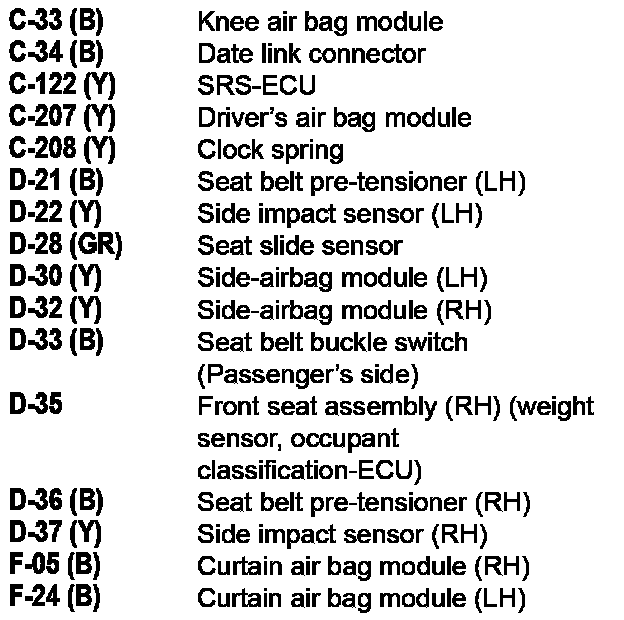

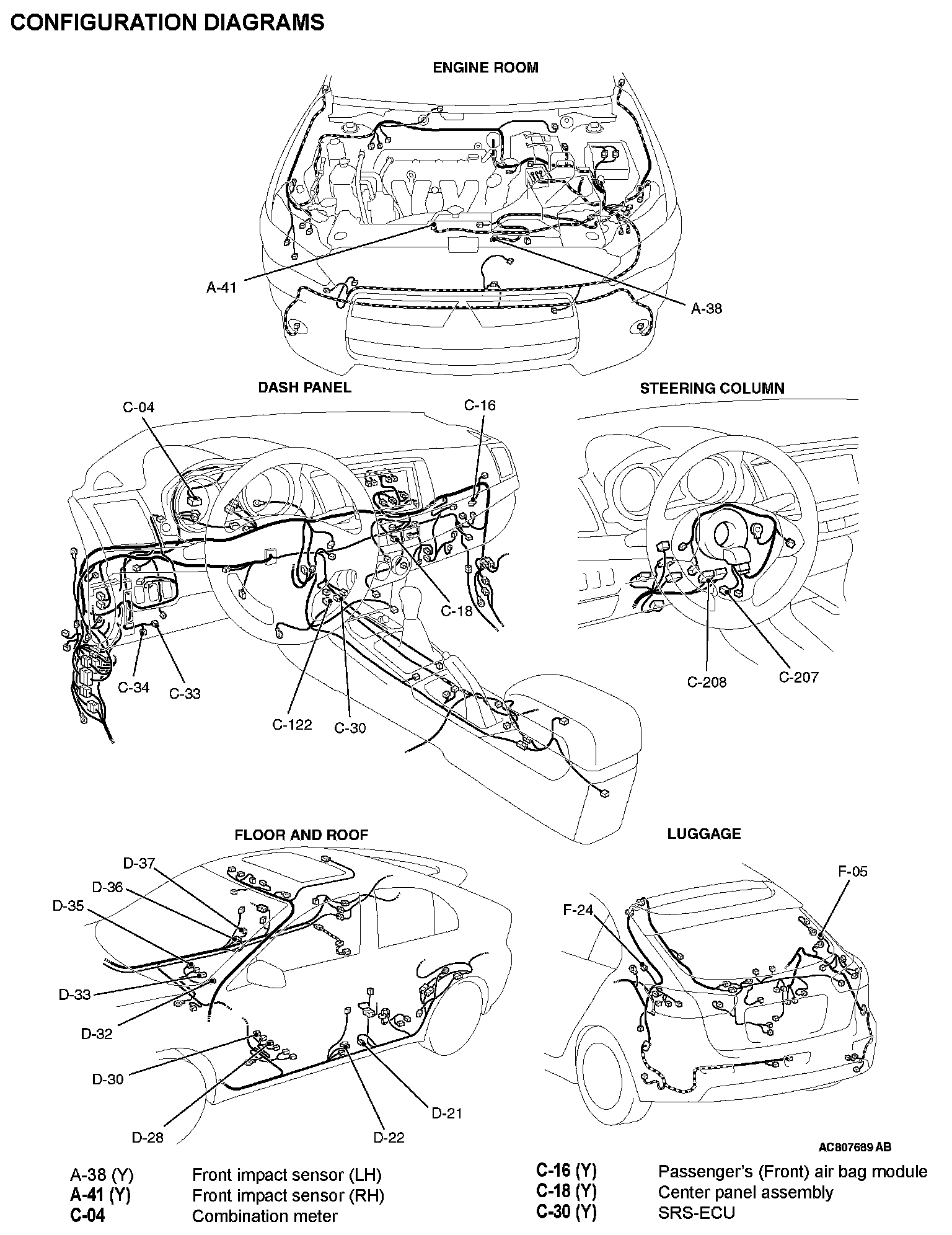

CONFIGURATION DIAGRAMS
Configuration Diagrams (Part 1):
