Home
>>
Mitsubishi
>>
2010
>>
Lancer Sportback L4-2.4L (4B12)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

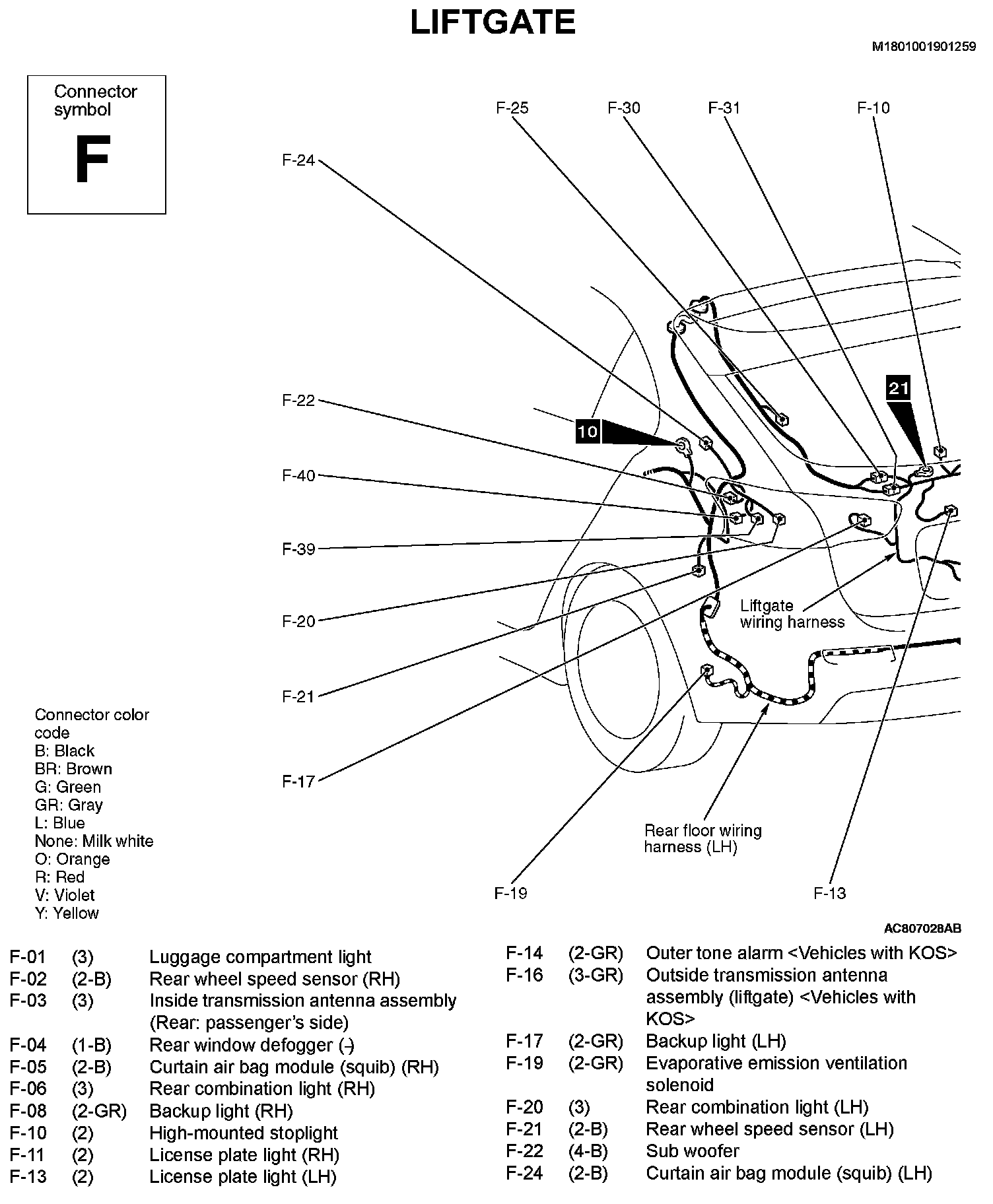

F Connectors - Liftgate
F Connectors - Liftgate
F-01 To F-40 (Part 1):
F-01 To F-40 (Part 2):
