Driver/Vehicle Information Display: Testing and Inspection
MAIN UNIT TERMINAL VOLTAGE

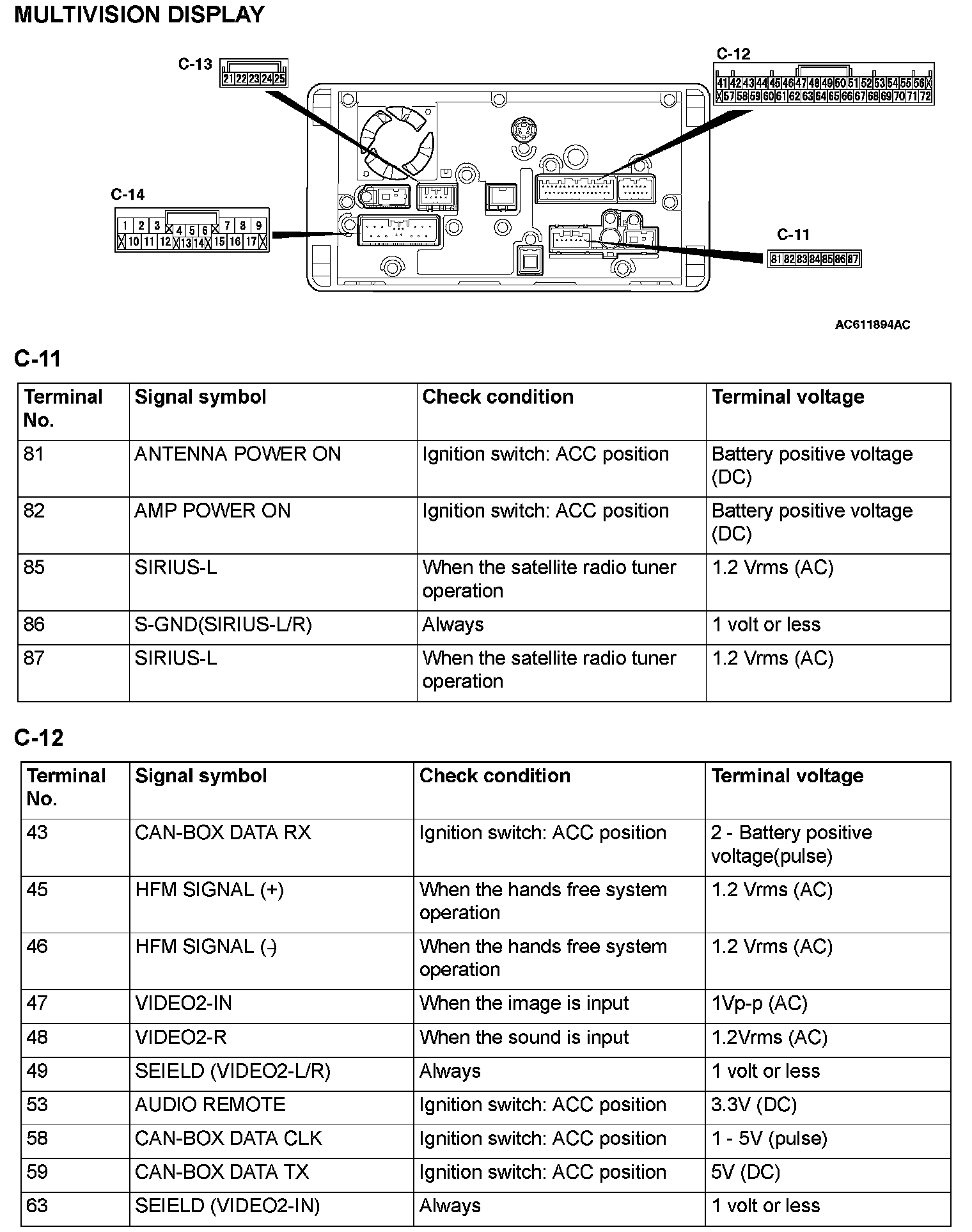

Multivision Display (Part 1):

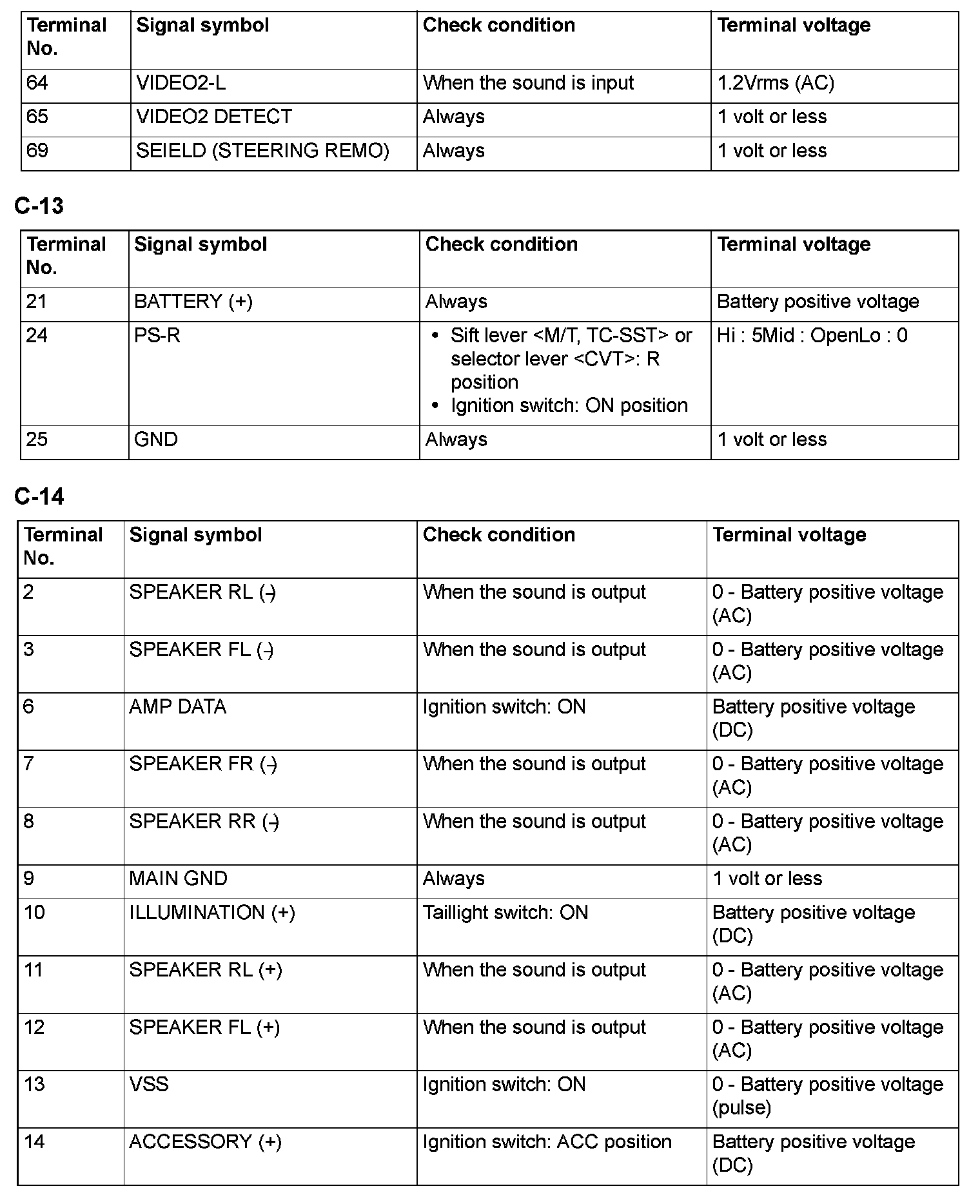

Multivision Display (Part 2):

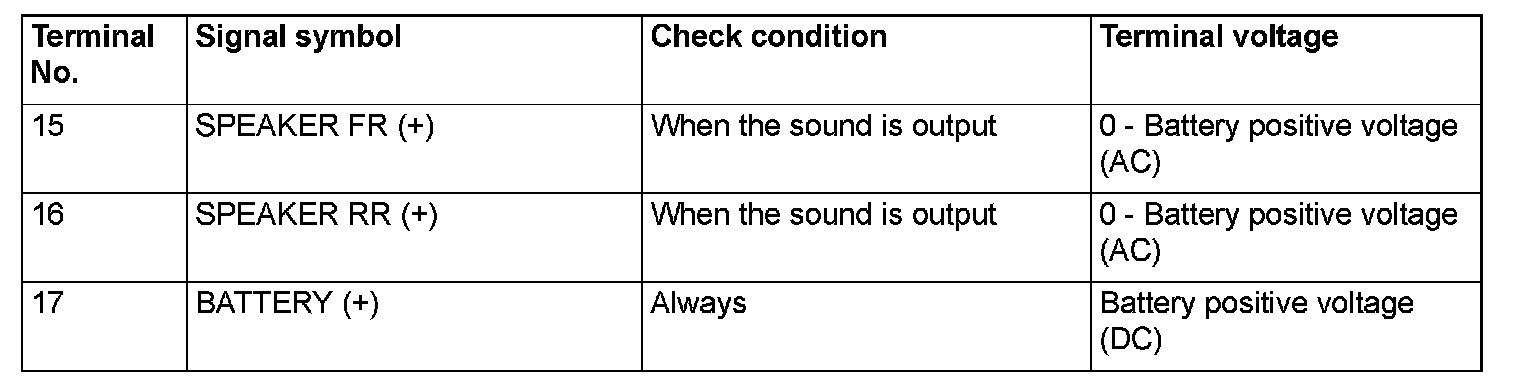

Multivision Display (Part 3):
CAN Box Unit:
