DIAGNOSIS BY
REFRIGERANT
PRESSURE

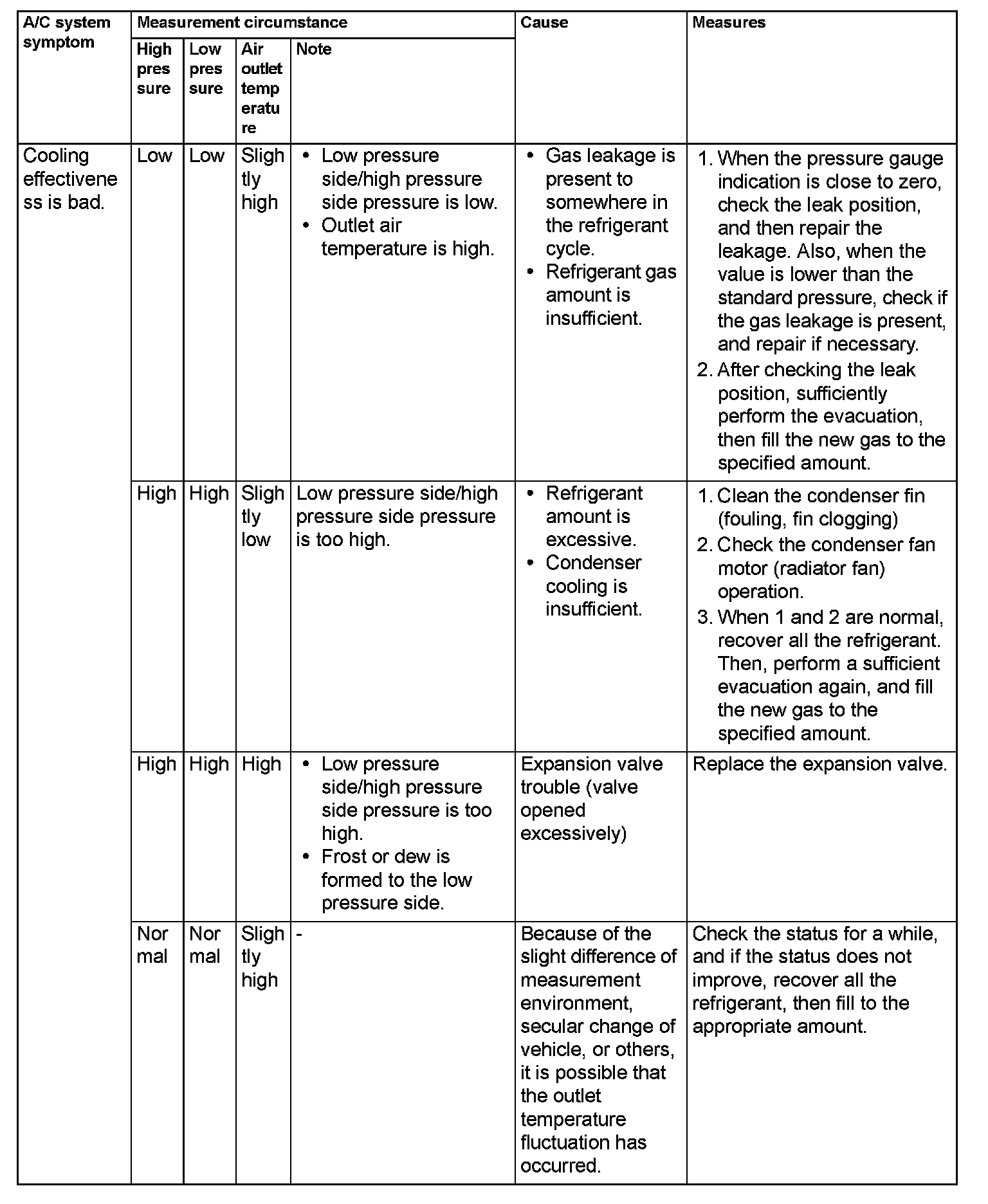

Diagnosis By Reference Pressure (Part 1):

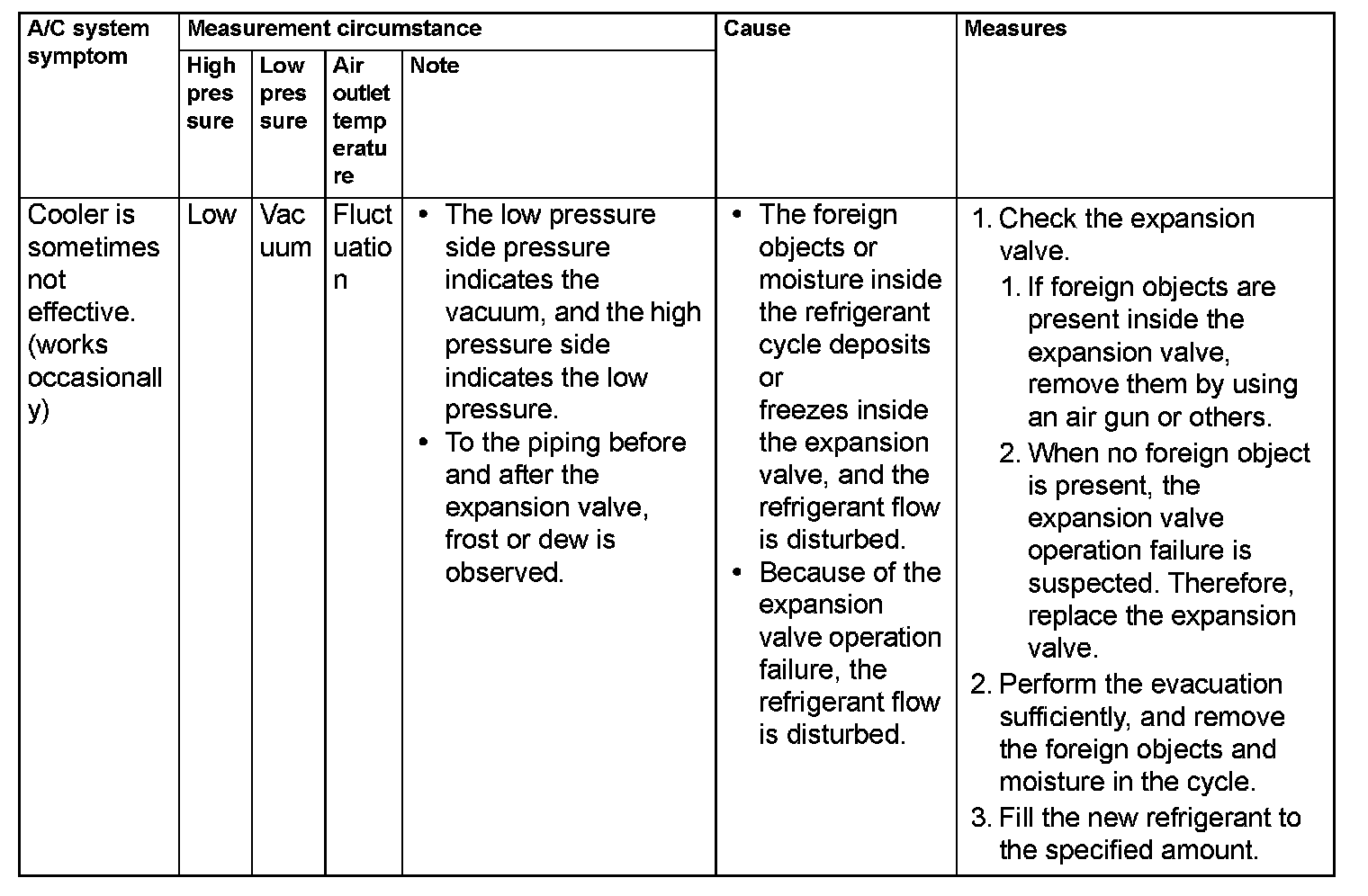

Diagnosis By Reference Pressure (Part 2):

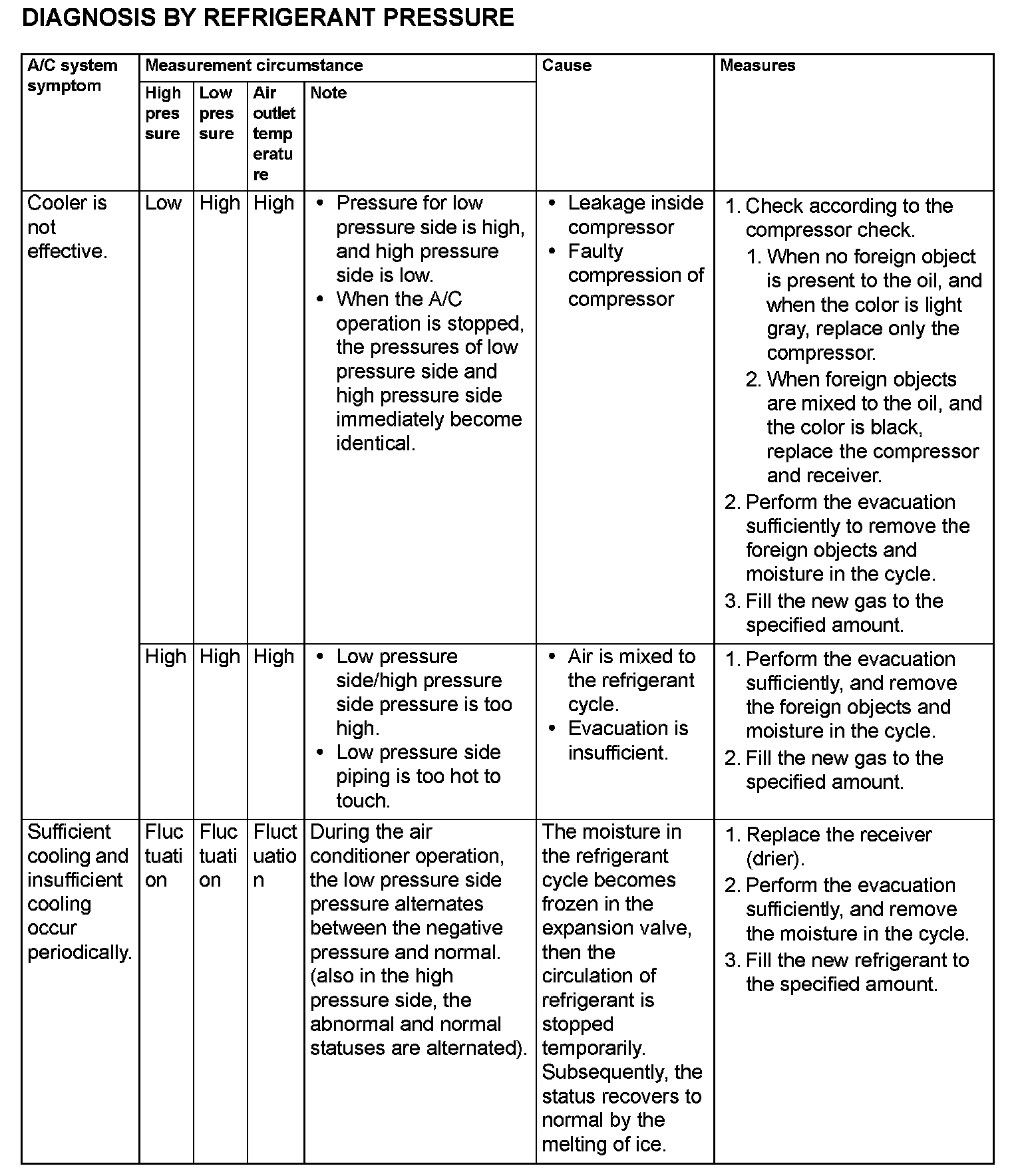

Diagnosis By Reference Pressure (Part 3):
