Home >> Mitsubishi >> 2010 >> Lancer Sportback L4-2.4L (4B12) >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor Clutch Relay >> Testing and Inspection

Compressor Clutch Relay: Testing and Inspection

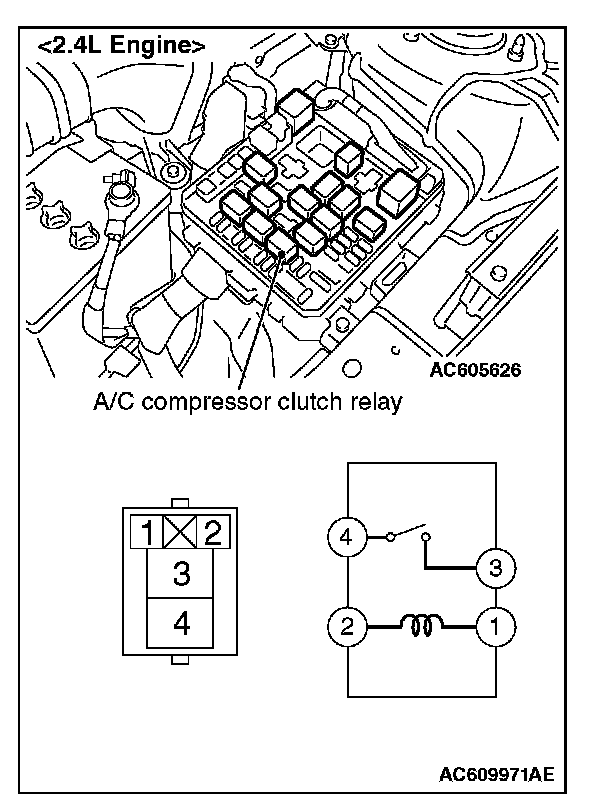

POWER RELAY CHECK

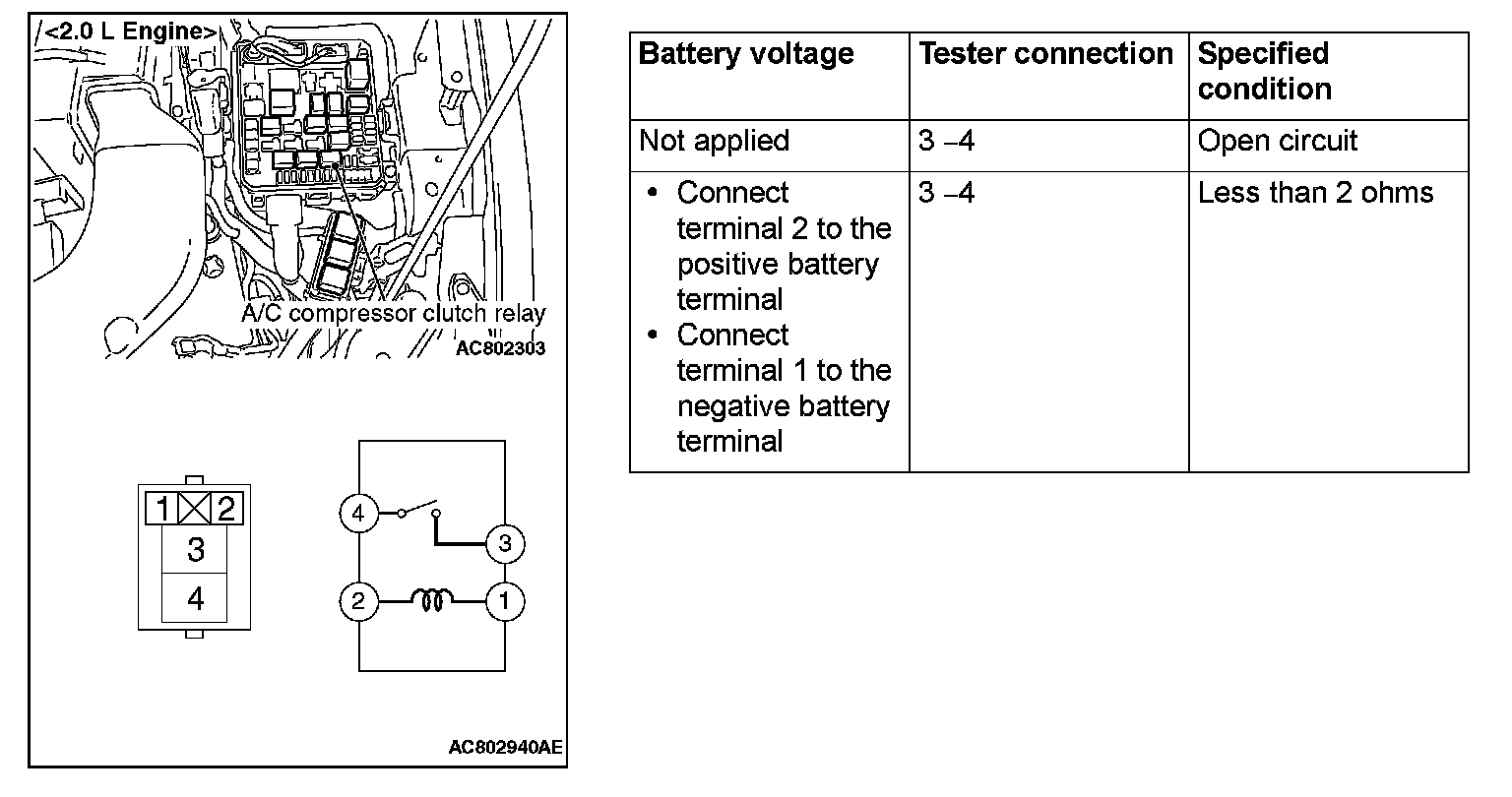

A/C COMPRESSOR CLUTCH RELAY CONTINUITY CHECK
