Blower Motor Relay: Testing and Inspection

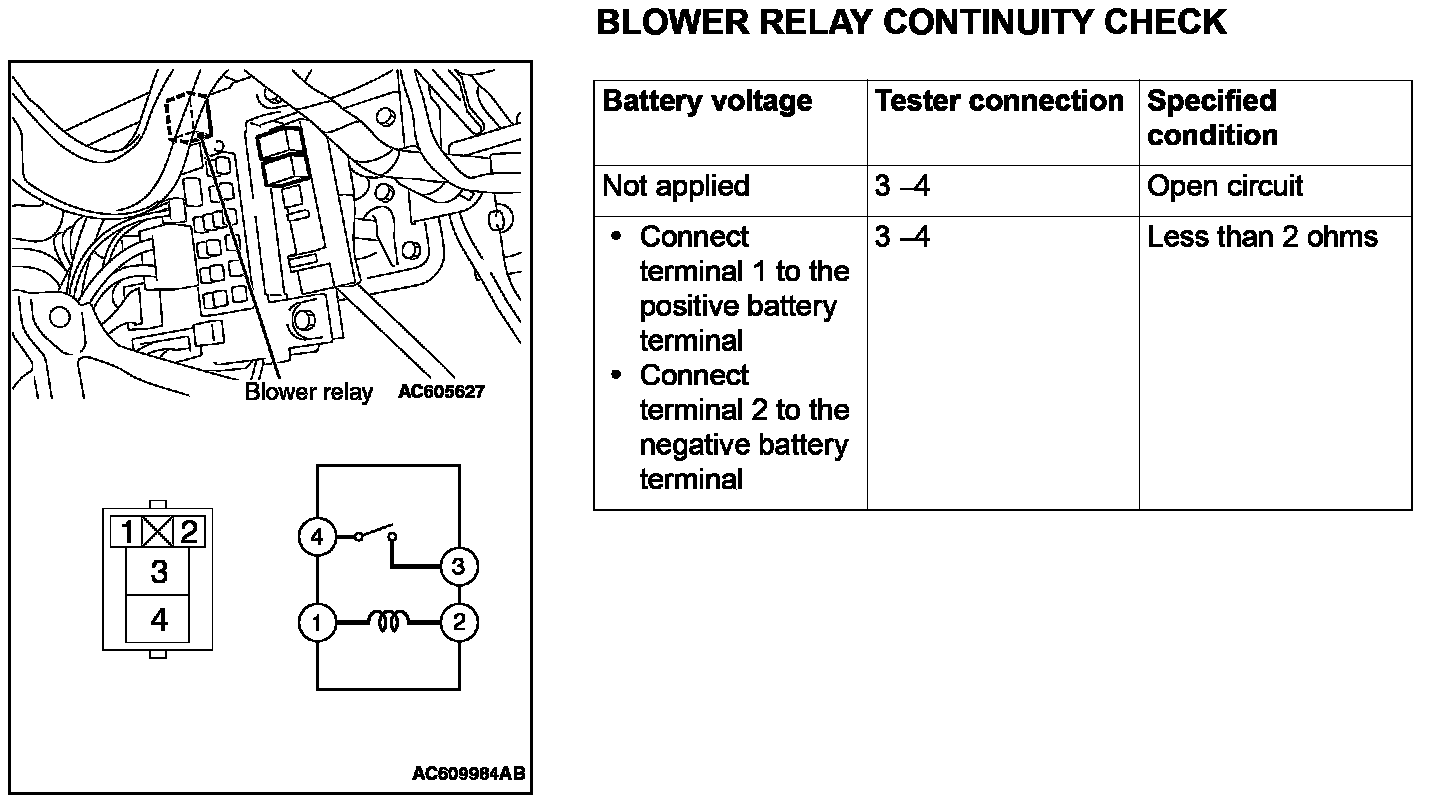

BLOWER RELAY CONTINUITY CHECK
Blower Relay Continuity Check:
