Continuously Variable Transmission/Transaxle, CVT
Continuously Variable Transmission/Transaxle, CVT

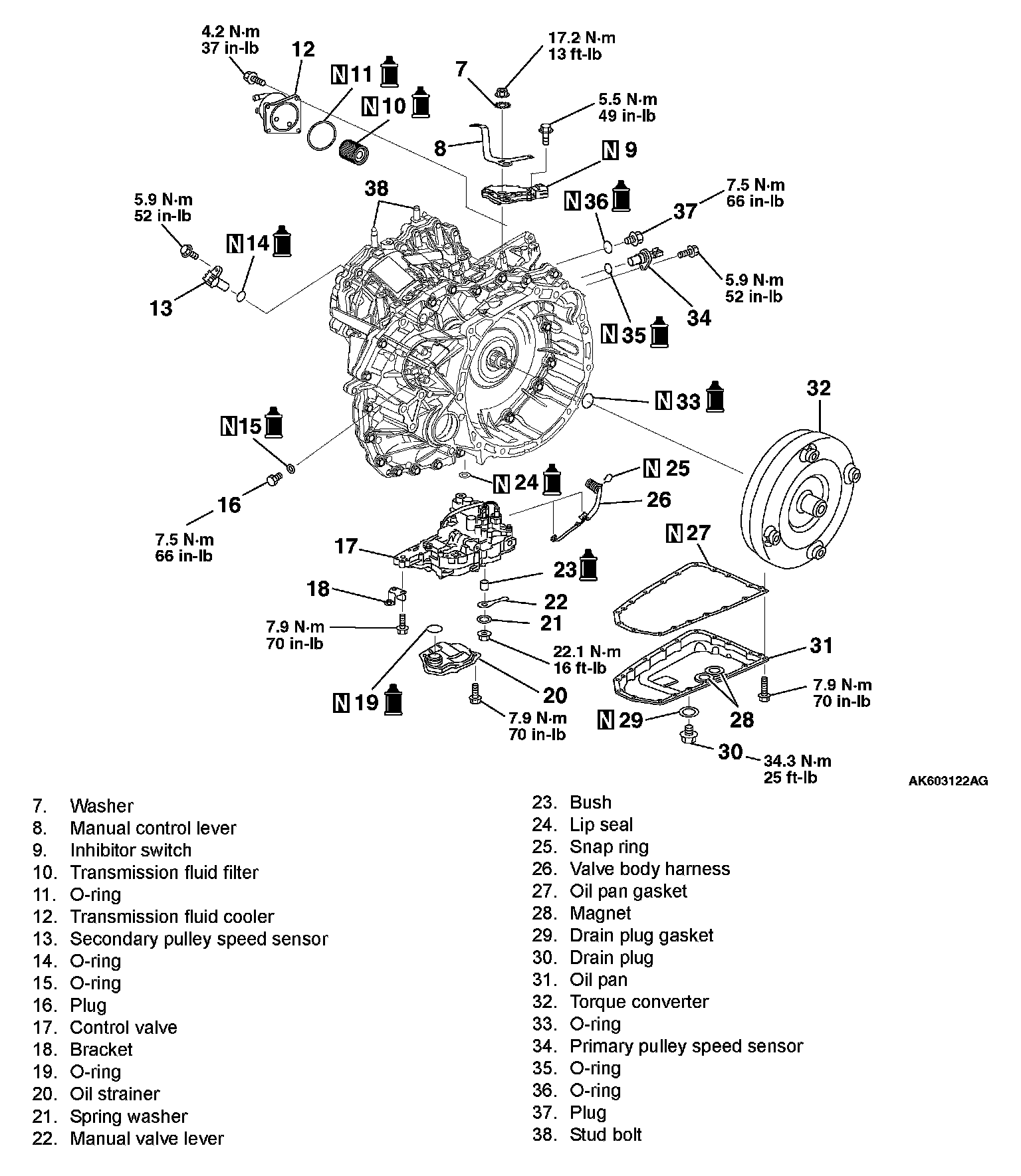

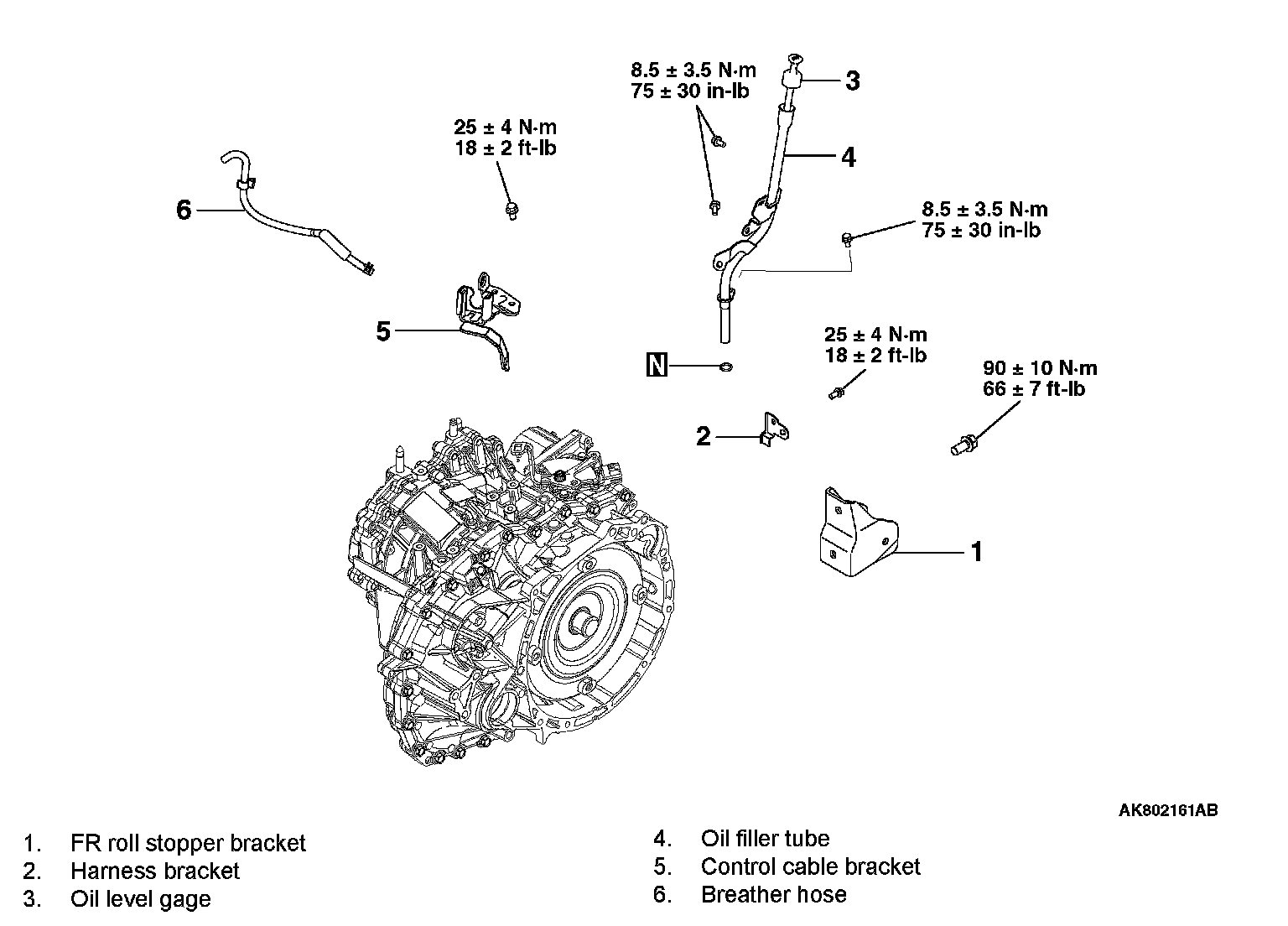

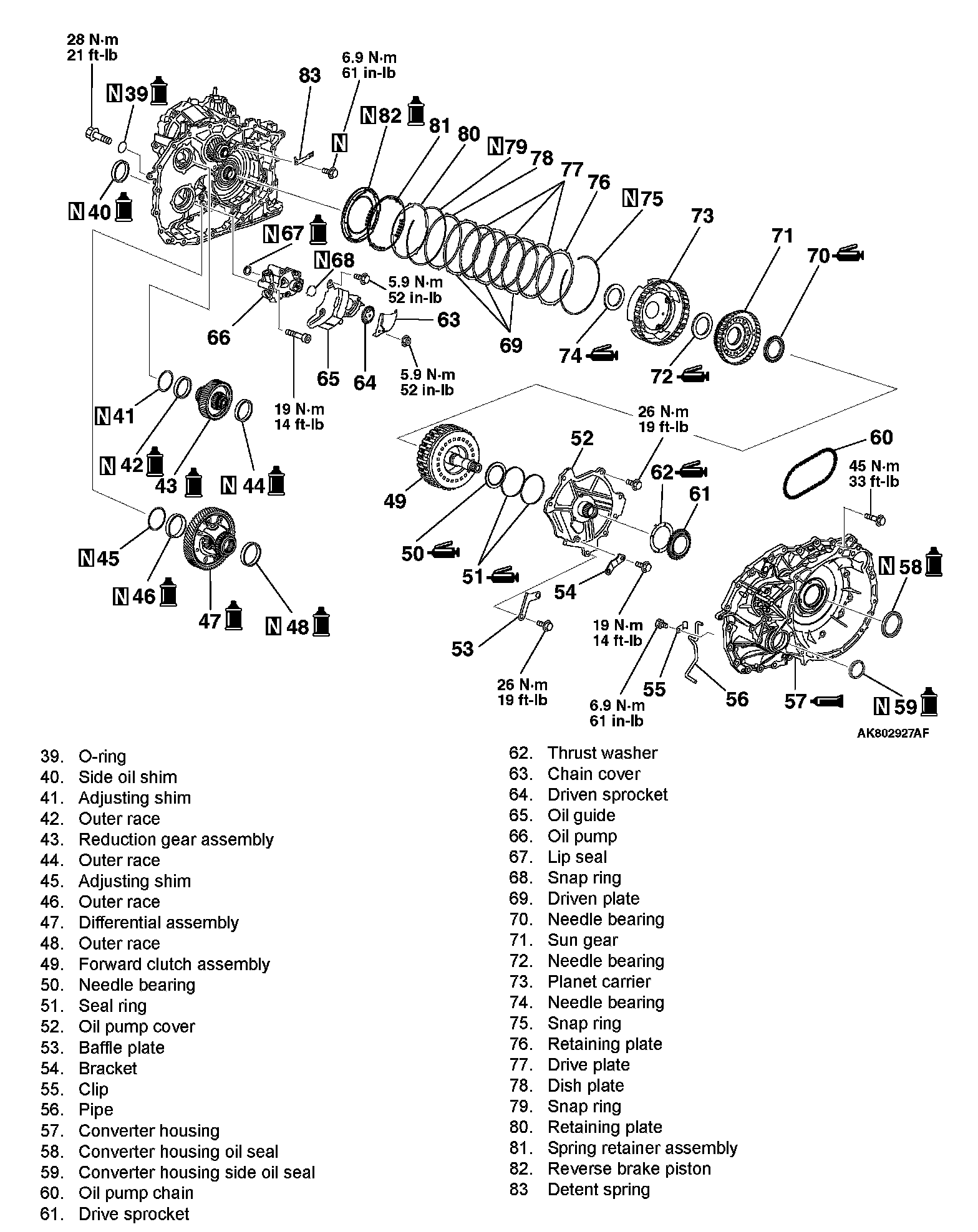

TRANSAXLE
DISASSEMBLY AND ASSEMBLY
