Vacuum Hose Routing
VACUUM HOSES
VACUUM HOSE ROUTING

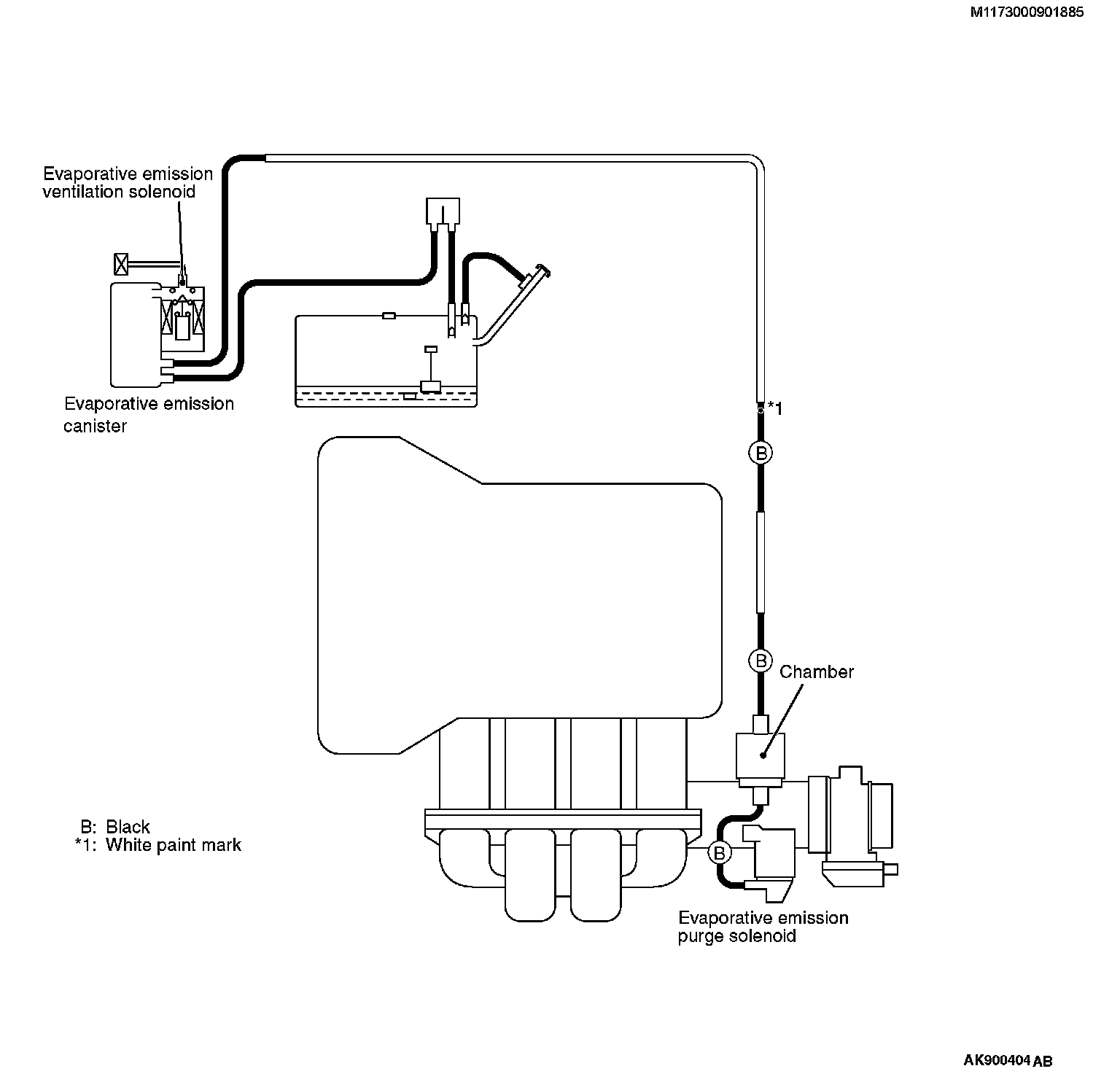

[Non-turbo]
Vacuum Hose Routing:

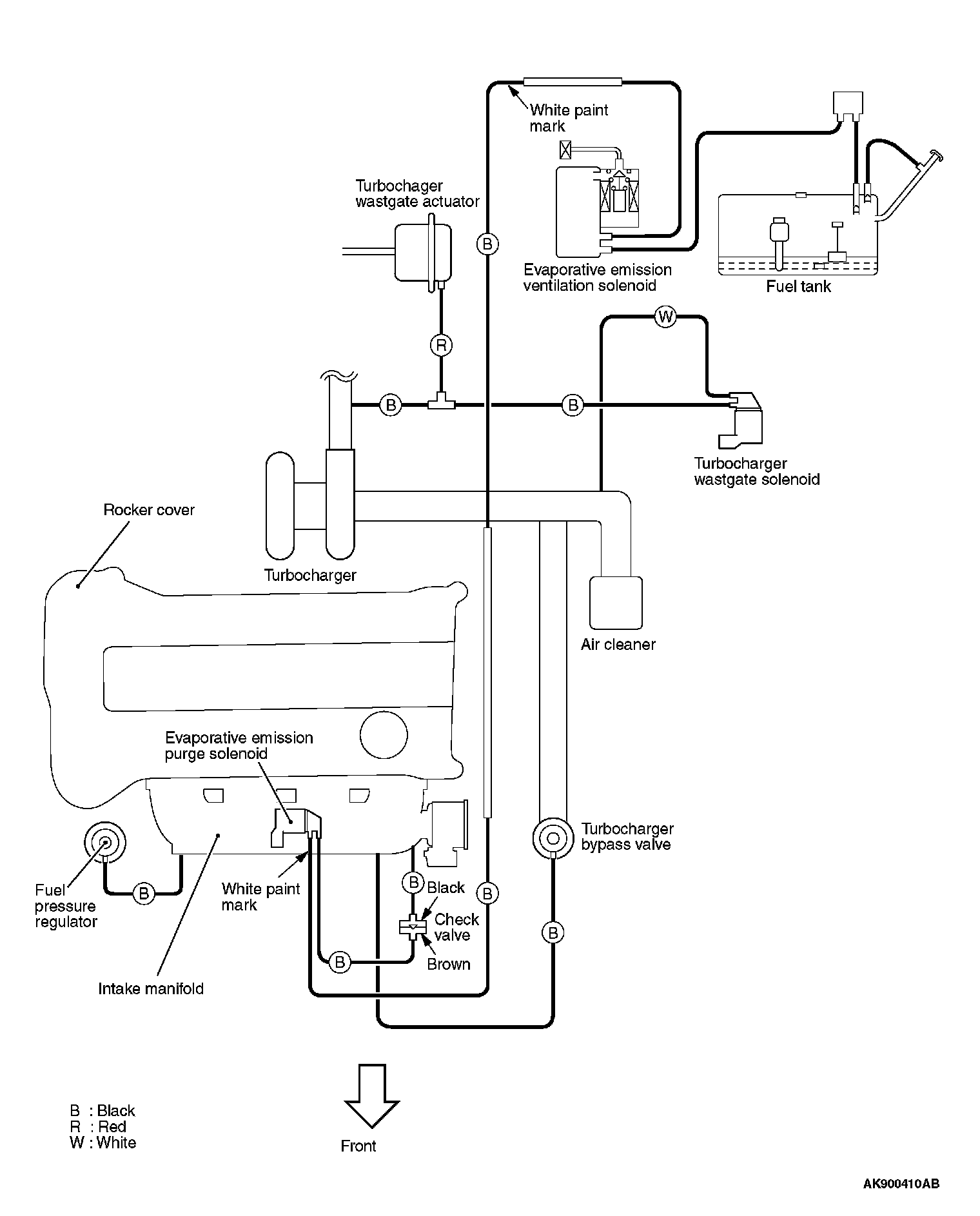

[Turbo]
Vacuum Hose Routing:
