Lancer Ralliart L4-2.0L Turbo (4B11T)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Automatic Air Conditioning
>>
Actuator Test

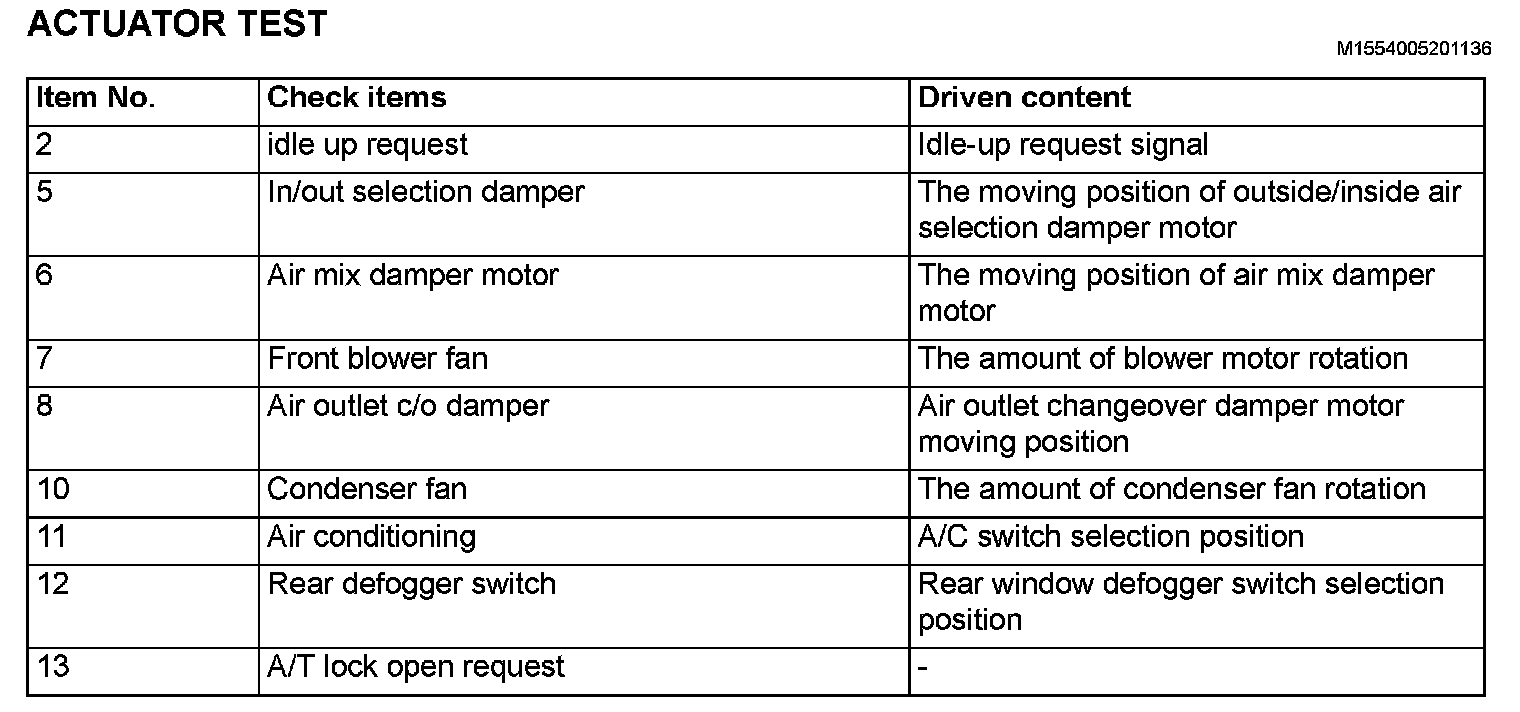

Actuator Test
AUTOMATIC AIR CONDITIONING
ACTUATOR TEST
Actuator Test:
