FRONT DISC BRAKE ASSEMBLY
REMOVAL AND INSTALLATION

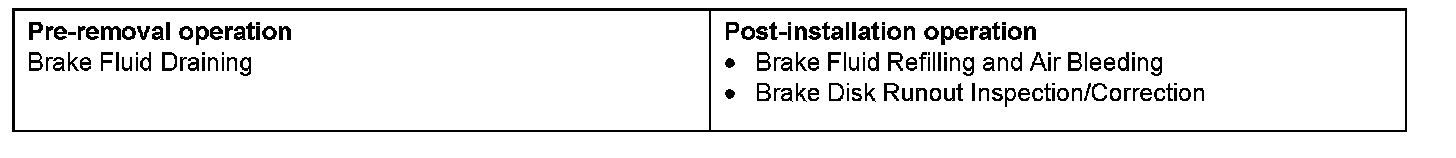

Pre-removal & Post-installation Operation:

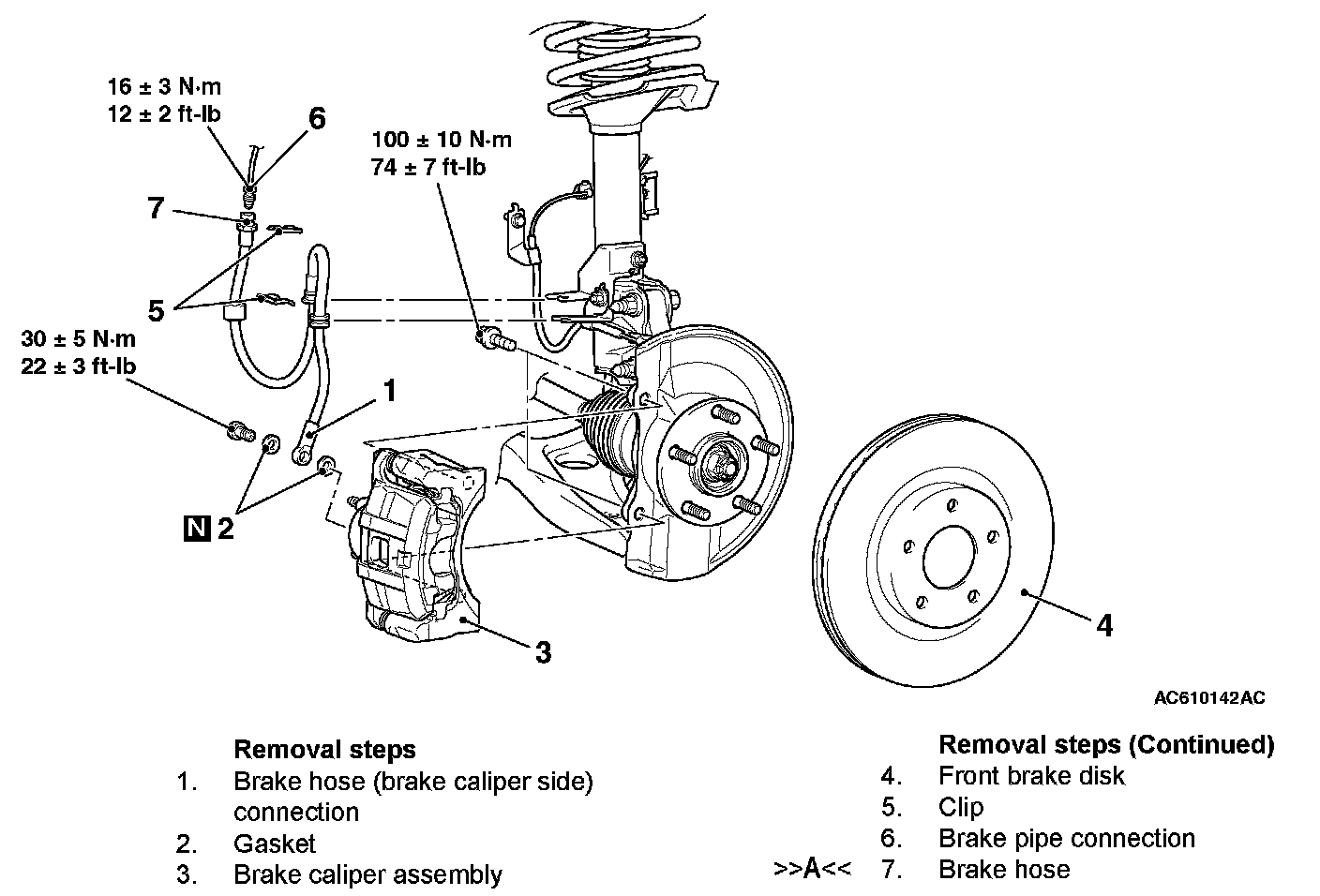

Removal Steps 1-7:
