Transmission Mode Switch: Testing and Inspection
TRANSAXLE CONTROL
INSPECTION

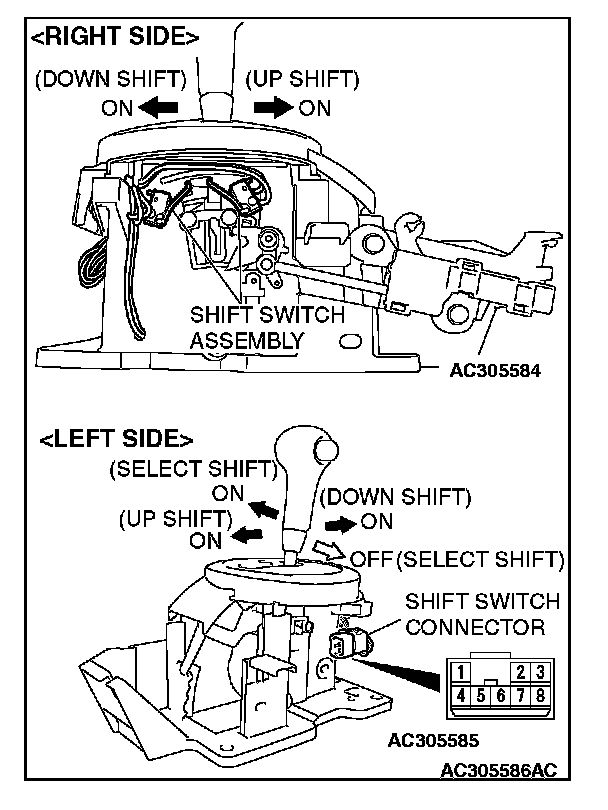

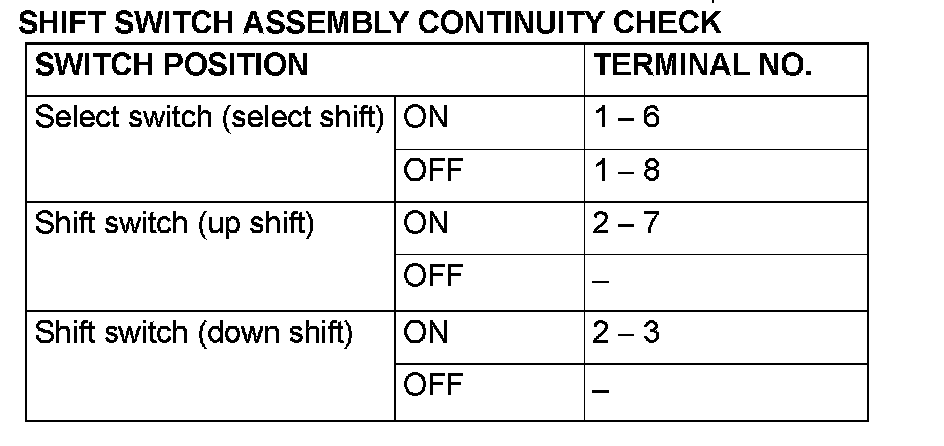

SHIFT SWITCH ASSEMBLY CONTINUITY CHECK
