Crankshaft Main Bearing

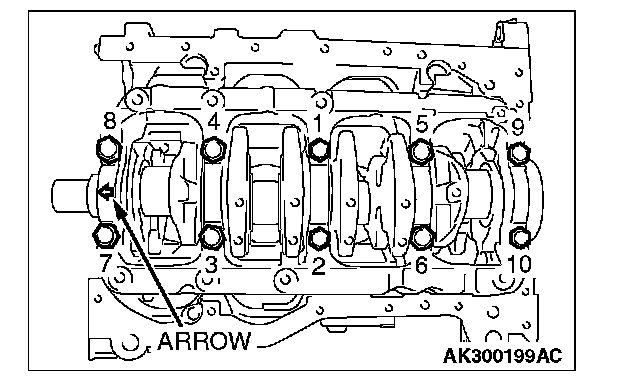

Main bearing caps





Tightening torque 25 ± 2 Nm (18 ± 1 ft-lb.)
Tighten further 90°

Crankshaft journal oil clearance mm (in)
No.1,2,4,5 journal
STANDARD VALUE 0.02 - 0.03 (0.0008 - 0.0012)
LIMIT 0.1 (0.003)
No.3 journal
STANDARD VALUE 0.03 - 0.04 (0.0012 - 0.0016)
LIMIT 0.1 (0.003)
Crankshaft journal outside diameter mm (in)
STANDARD VALUE 57.0 (2.24)
Crankshaft pin outside diameter mm (in)
STANDARD VALUE 45.0 (1.77)
