Home >> Mitsubishi >> 2010 >> Galant L4-2.4L (4G69) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Horn Relay >> Testing and Inspection

Horn Relay: Testing and Inspection

INSPECTION

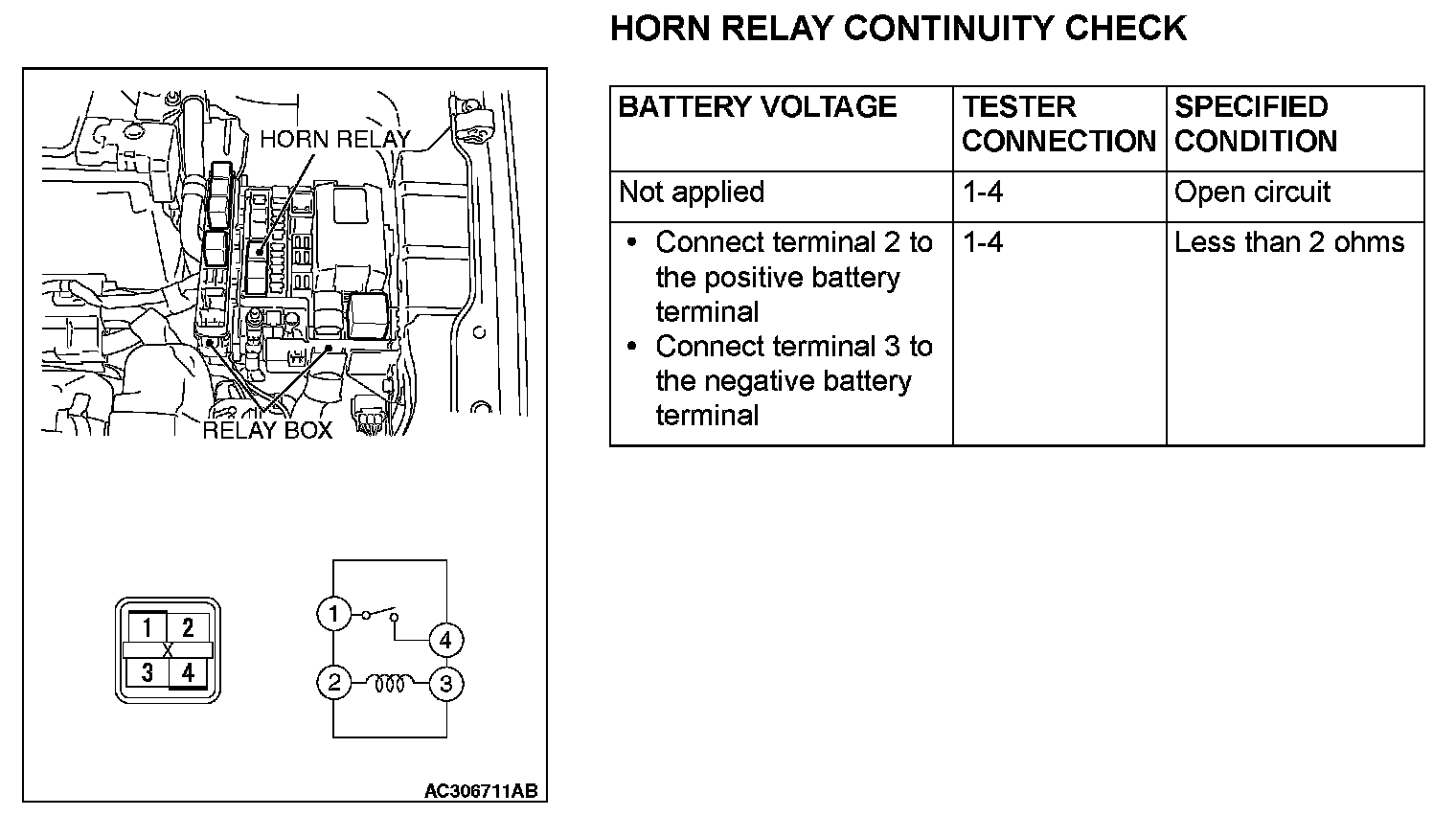

HORN RELAY CONTINUITY CHECK


Horn Relay Continuity Check:
