Removal and Replacement

PARKING BRAKE LEVER

REMOVAL AND INSTALLATION

CAUTION
Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.

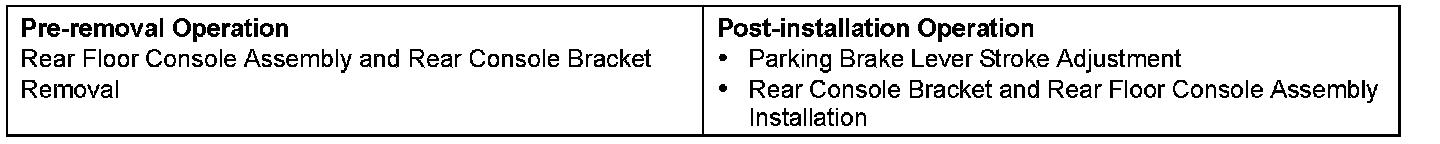

Pre-removal & Post-installation Operation:

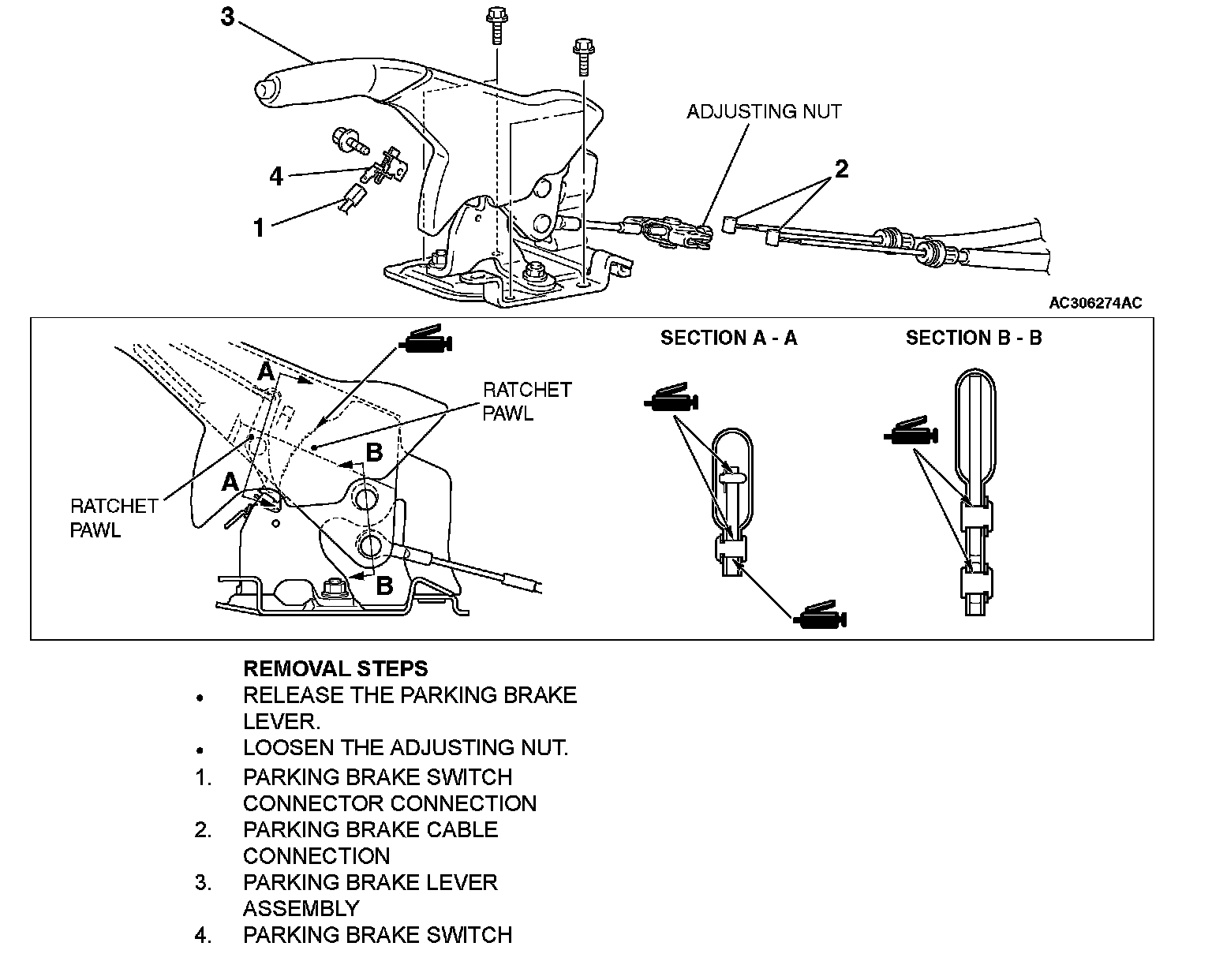

Removal Steps 1-4:
