Removal and Installation

REMOVAL AND INSTALLATION

NOTE: The TCL/ASC-ECU is integrated in the hydraulic unit.

CAUTION
Always calibrate the steering wheel sensor and the G and yaw rate sensor if the hydraulic unit (integrated in the TCL/ASC-ECU) is replaced.

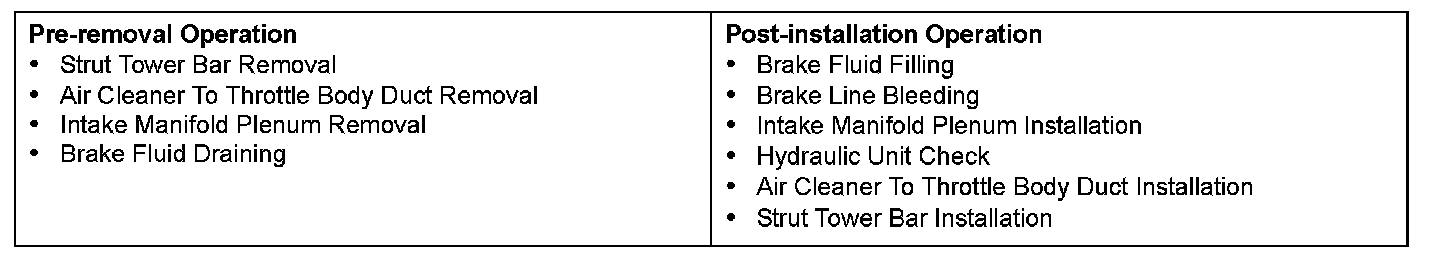

Pre-removal & Post-installation Operation:

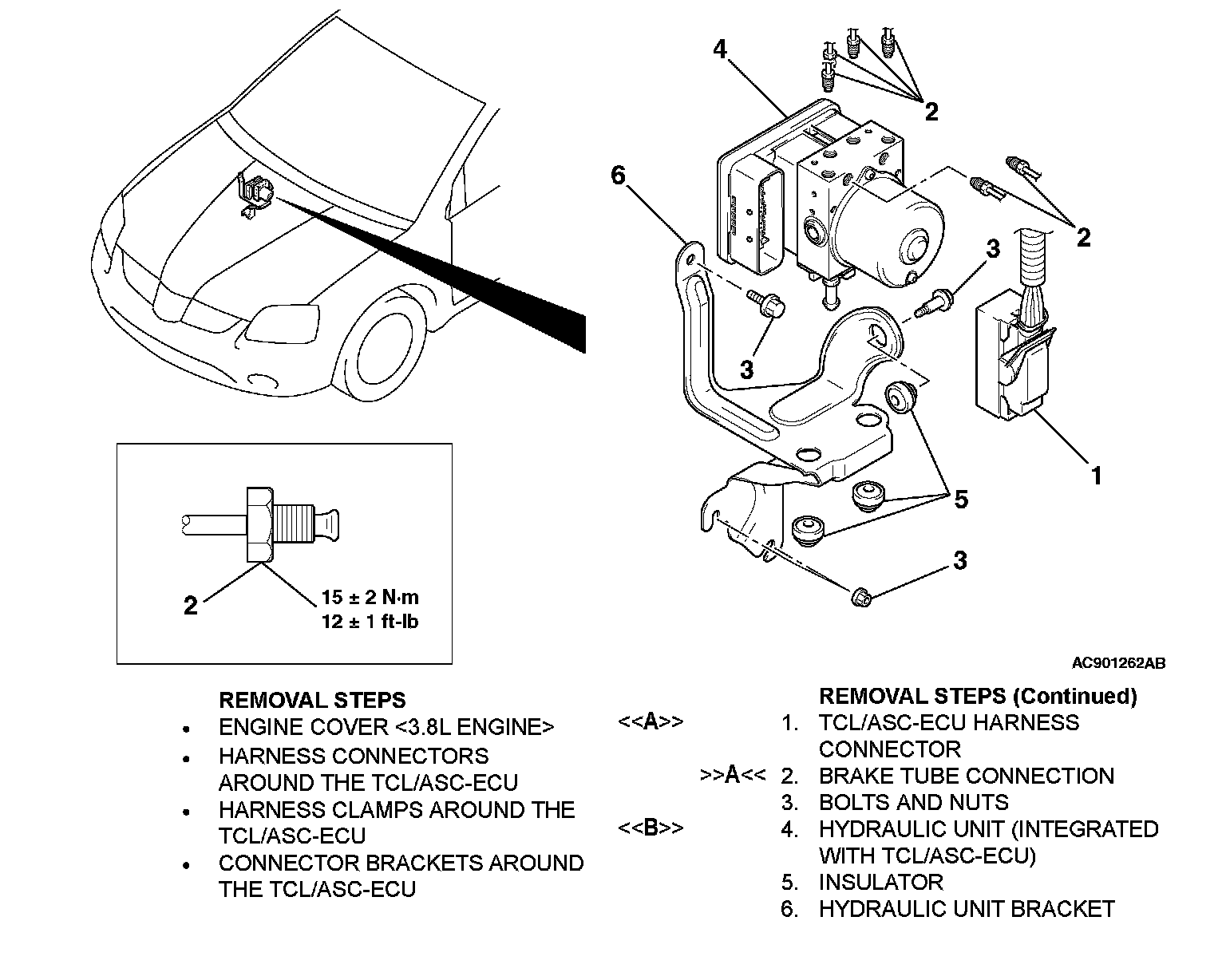

Removal Steps 1-6:
