Removal Service Points

REMOVAL SERVICE POINTS

[A] TCL/ASC-ECU HARNESS CONNECTOR DISCONNECTION

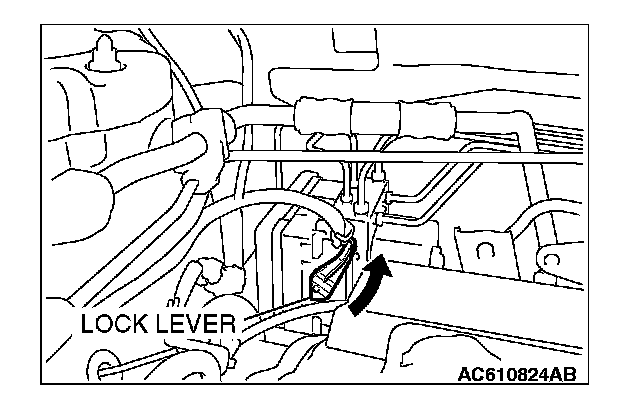

Move the lock lever of the TCL/ASC-ECU connector as shown in the illustration, and then disconnect the harness connector.

[B] HYDRAULIC UNIT (INTEGRATED WITH TCL/ASC-ECU) REMOVAL

WARNING
The hydraulic unit is heavy. Use care when removing it.

CAUTION
^ The hydraulic unit cannot be disassembled. Never loosen its nuts or bolts.
^ Do not drop or shock the hydraulic unit.
^ Do not turn the hydraulic unit upside down or lay it on its side.
