Installation Service Point

INSTALLATION SERVICE POINT

[A] BRAKE TUBE CONNECTION

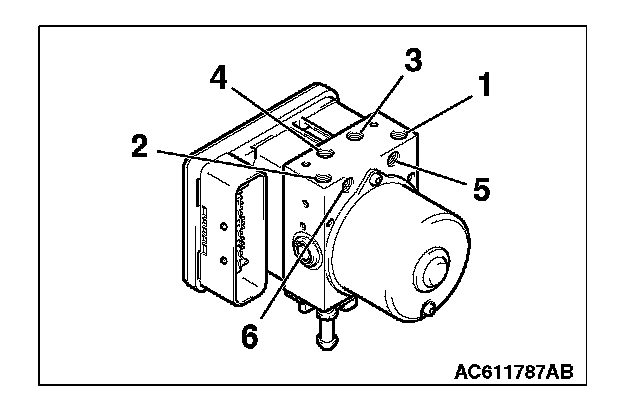

Connect the tubes to the hydraulic unit assembly as shown in the illustration.
1. From the master cylinder (secondary)
2. From the master cylinder (primary)
3. To the front brake (RH)
4. To the front brake (LH)
5. To the rear brake (LH)
6. To the rear brake (RH)
