Amplifier: Service and Repair

AMPLIFIER

REMOVAL AND INSTALLATION

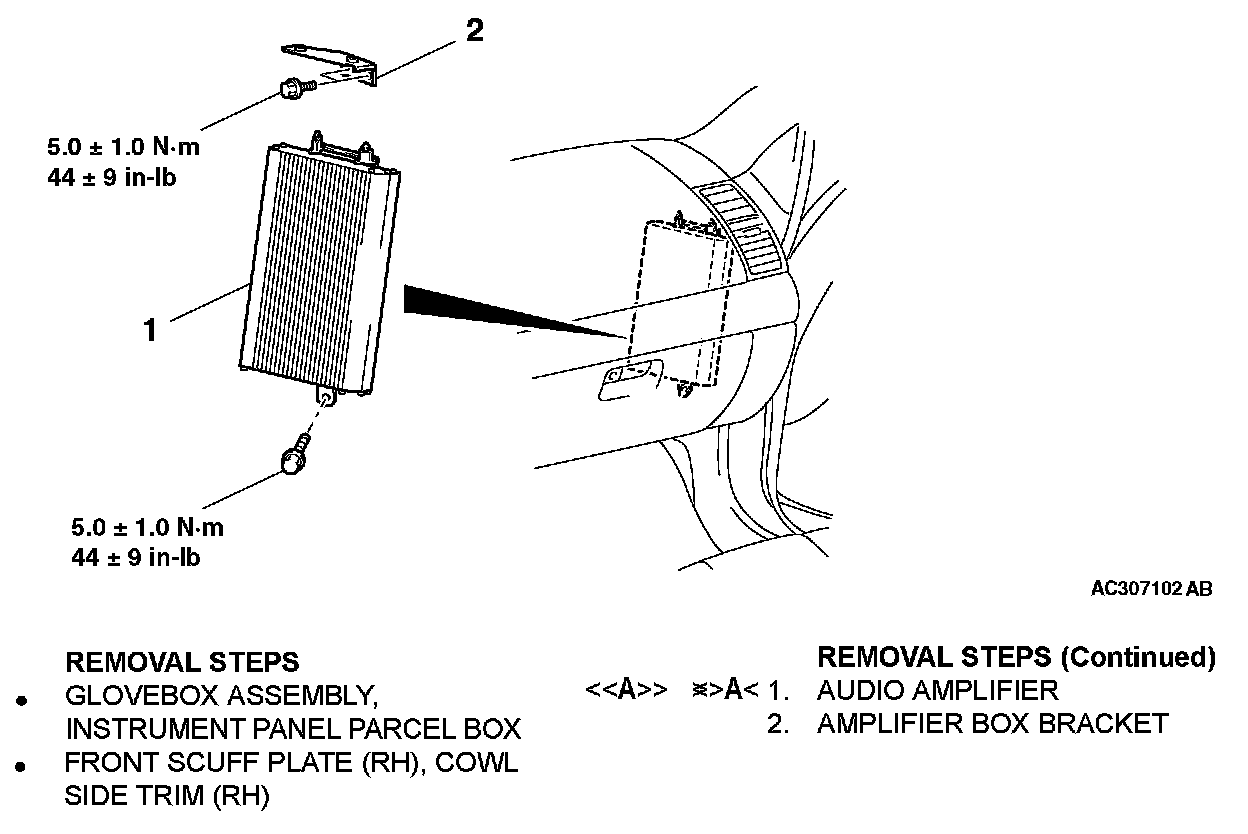

Removal Step 1-2:






REMOVAL SERVICE POINT

[[A]] AUDIO AMPLIFIER REMOVAL


Removal Step 1-2 (Part 2):

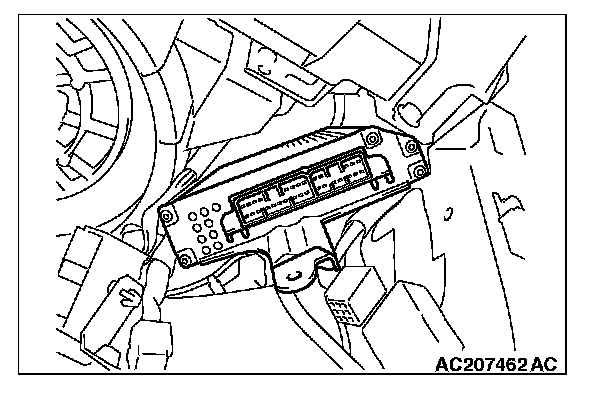

Move the audio amplifier wiring harness to one side, and then maneuver out the audio amplifier.

INSTALLATION SERVICE POINT

]]A[[ AUDIO AMPLIFIER INSTALLATION

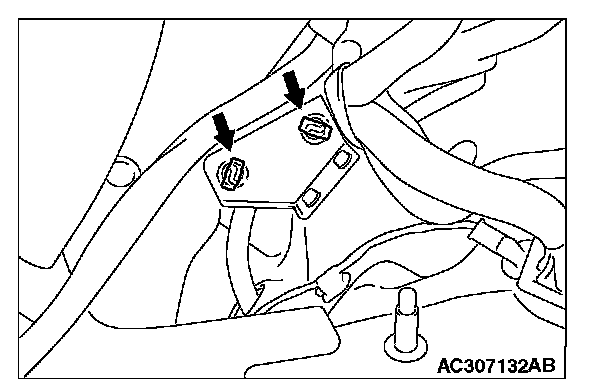

Install while aligning with the amplifier mounting hole.
