Multi-Center Display
Multi-Center Display
CHECK AT MULTI-CENTER DISPLAY UNIT TERMINAL

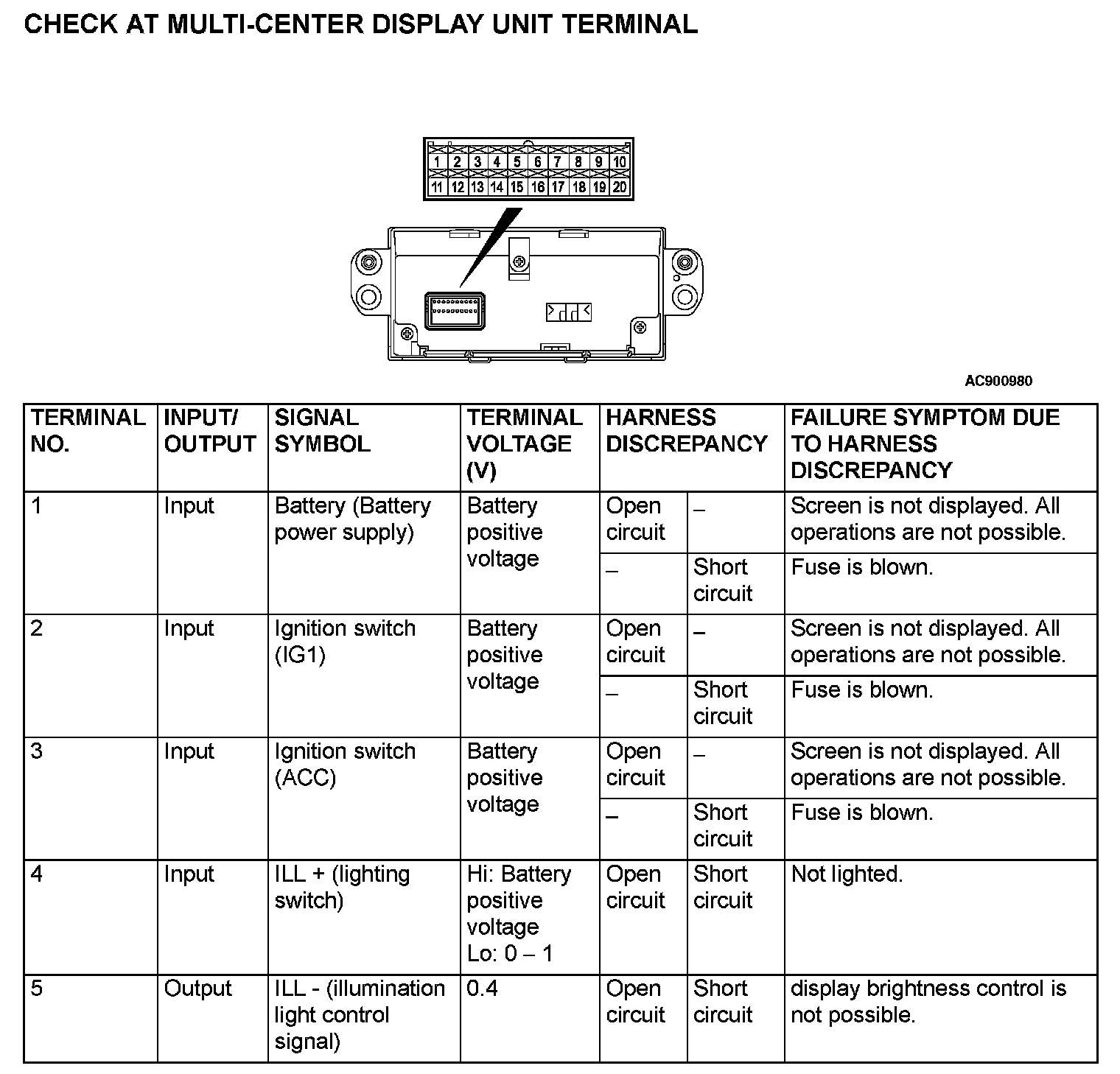

Check At Multi-Center Display Unit Terminal (Part 1):

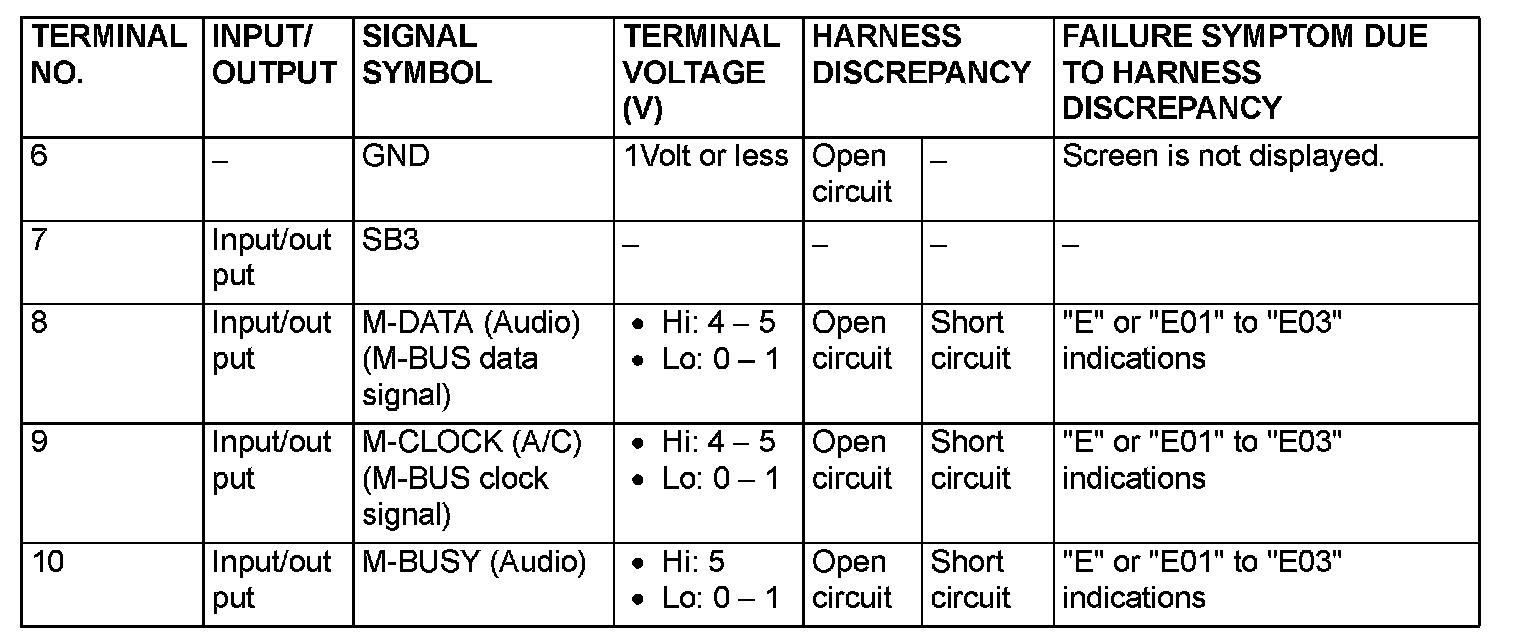

Check At Multi-Center Display Unit Terminal (Part 2):
