MIVEC

GENERATOR ASSEMBLY

REMOVAL AND INSTALLATION [3.8L ENGINE-MIVEC]

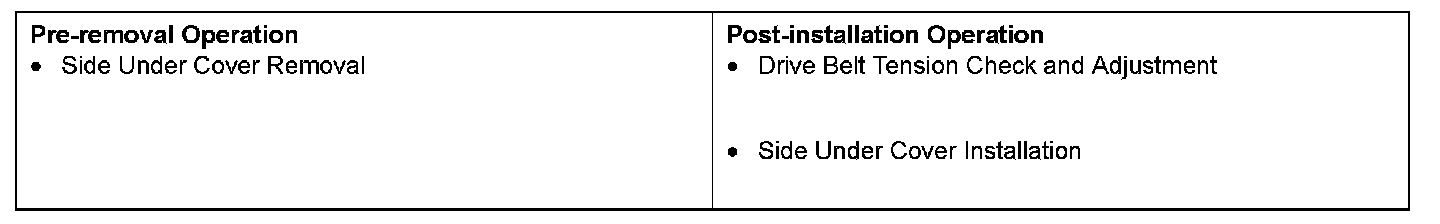

Pre-removal & Post-installtion Operation:

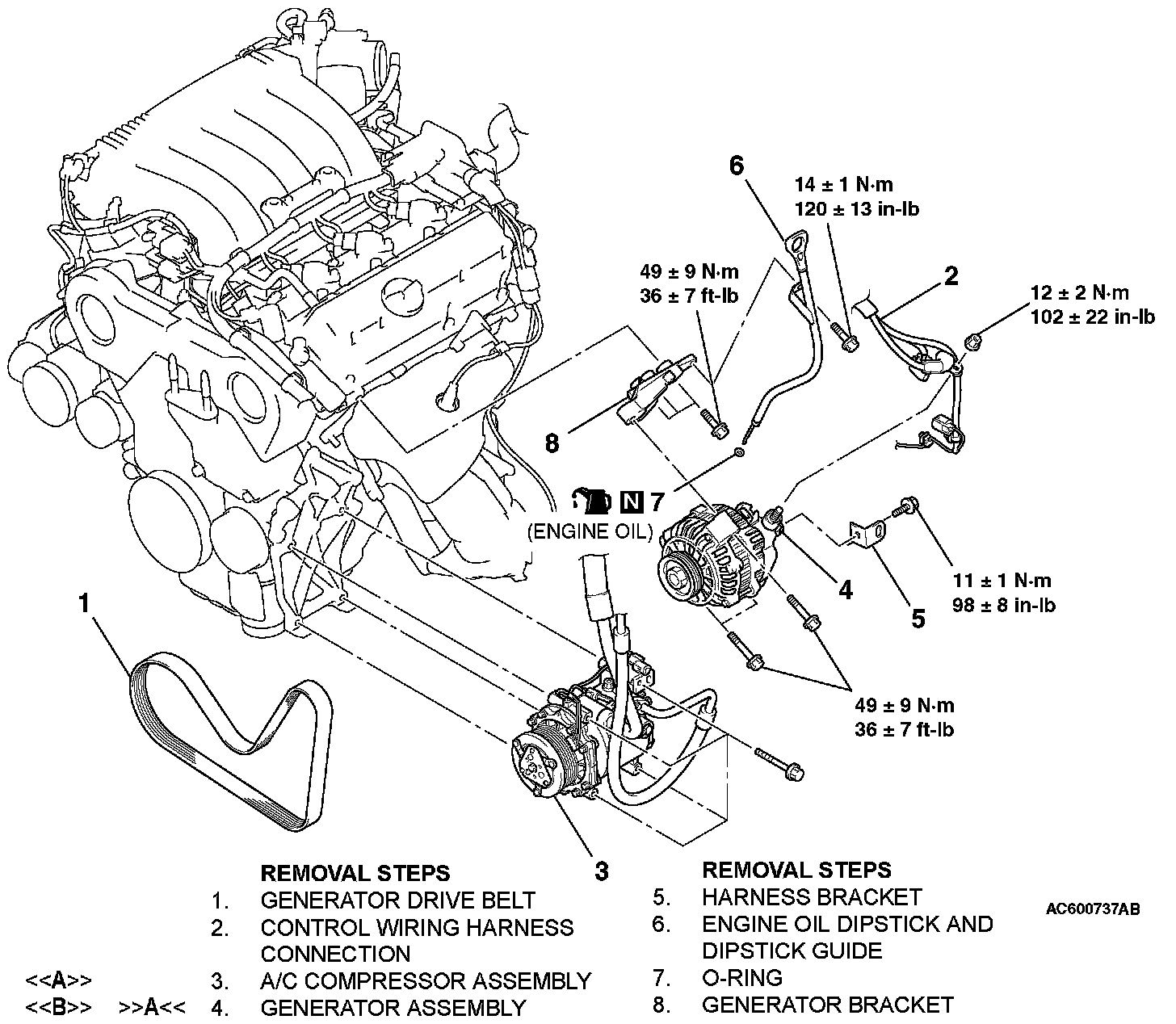

Removal Steps 1-8:

REMOVAL SERVICE POINTS

[[A]] A/C COMPRESSOR ASSEMBLY REMOVAL
1. With the hose installed, remove the A/C compressor assembly from the bracket.
2. After removing the A/C compressor assembly, secure it with a cord in a location where it does not interfere with generator assembly removal.

[[B]] GENERATOR ASSEMBLY REMOVAL
Move the A/C compressor assembly to one side, and then remove the generator assembly from under the vehicle.

INSTALLATION SERVICE POINT

]]A[[ GENERATOR ASSEMBLY INSTALLATION
1. Install the generator assembly to the generator bracket.
2. Tighten the generator assembly mounting bolts by hand.

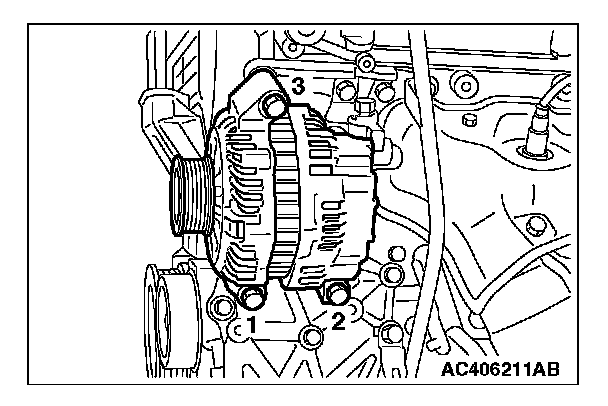

3. Tighten the generator assembly mounting bolts to the specified torque in the order shown.

Tightening torque: 49 ± 9 N.m (36 ± 7 ft-lb)
