Crankshaft Main Bearing

Except Mivec Engine

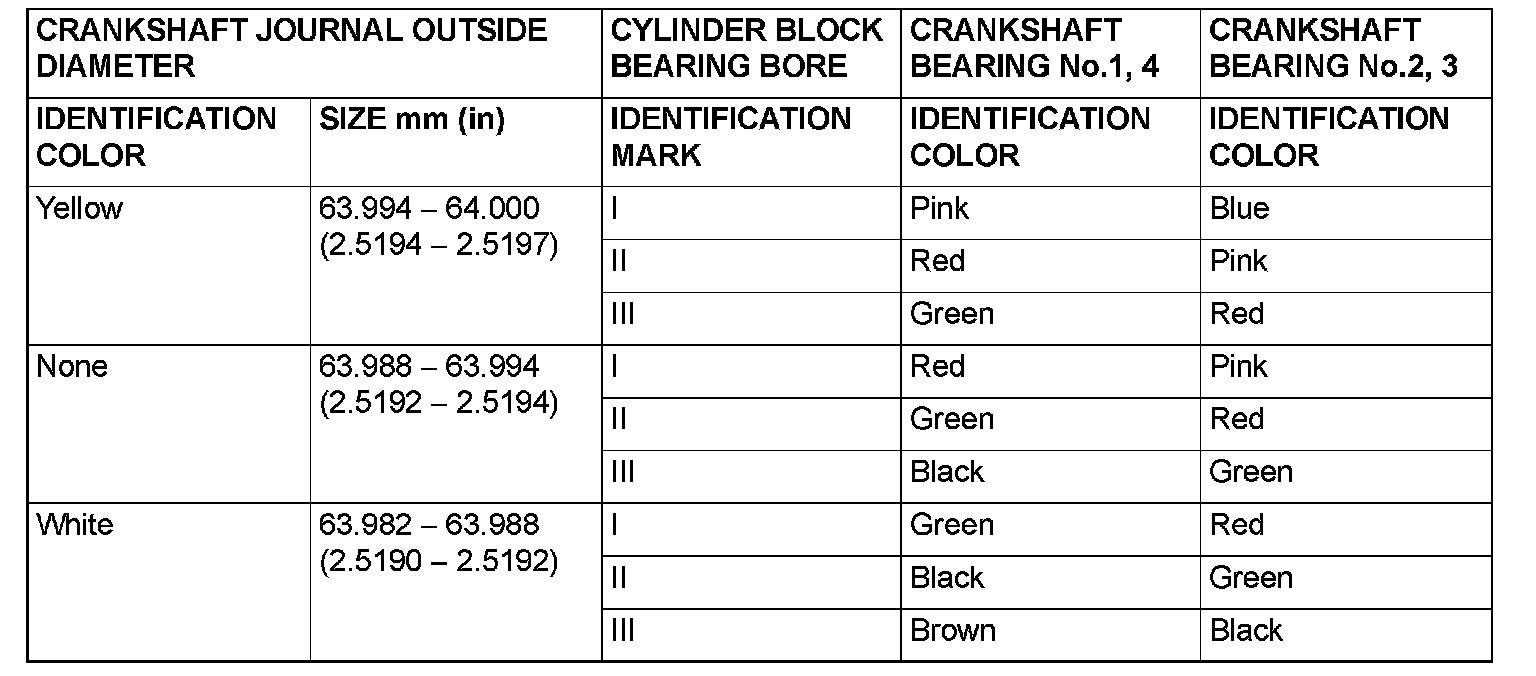

Crankshaft Journal Outside Diameter

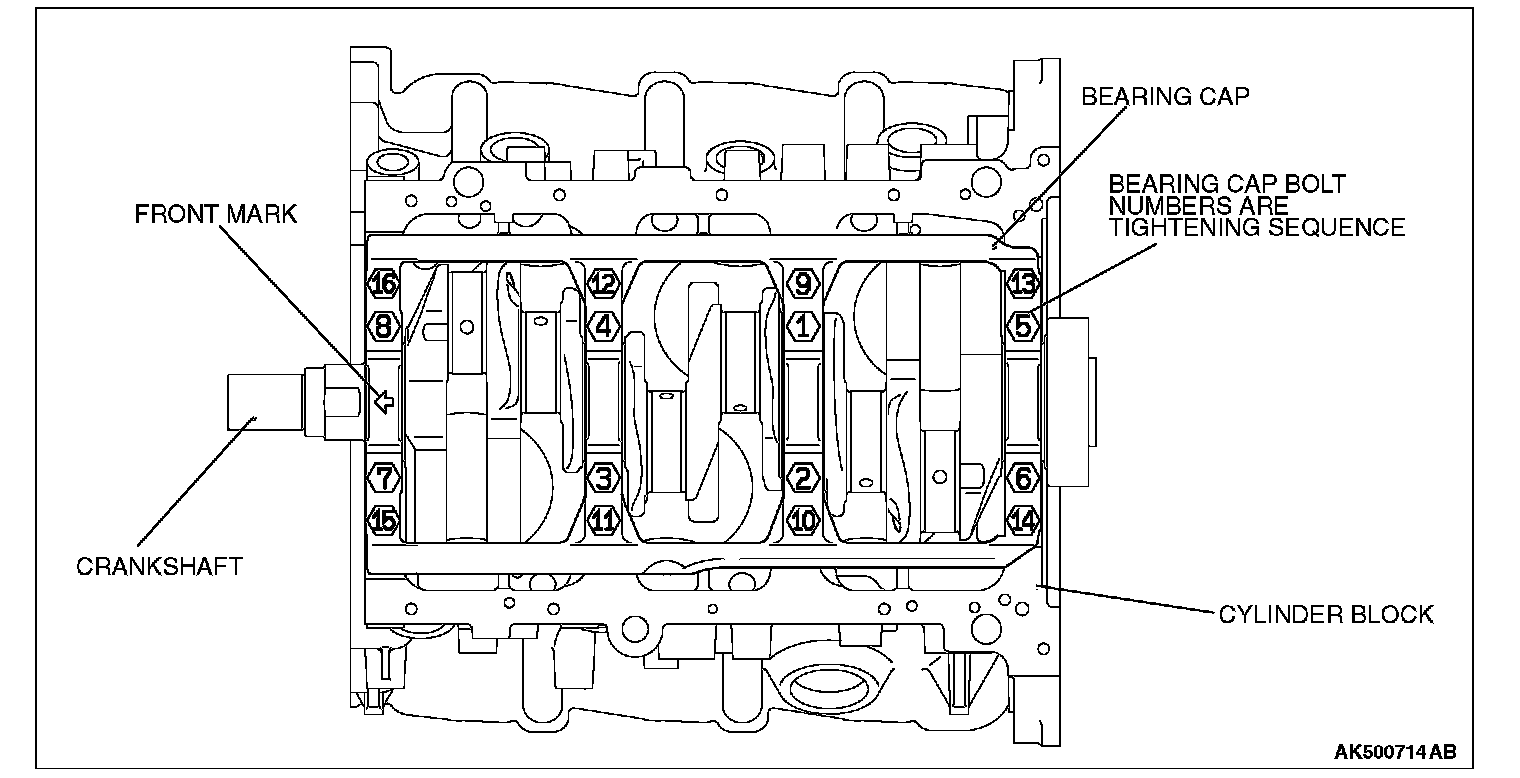

Bearing cap bolt 74 ± 4 Nm (54 ± 3 ft-lb)

Crankshaft journal oil clearance mm (in)
No.1, 4
Standard Value 0.018 - 0.036 (0.0007 - 0.0014)
Limit 0.1(0.003)
No.2, 3
Standard Value 0.024 - 0.042 (0.0009 - 0.0017)
Limit 0.1(0.003)

Mivec Engine





Crankshaft Journal Outside Diameter





Bearing cap bolt 74 ± 4 Nm (54 ± 3 ft-lb)

Crankshaft journal oil clearance mm (in)
No.1, 4
Standard Value 0.018 - 0.030 (0.0005 - 0.0012)
Limit 0.1(0.003)

No.2, 3
Standard Value 0.018 - 0.036 (0.0007 - 0.0014)
Limit 0.1(0.003)
