MIVEC

[MIVEC]

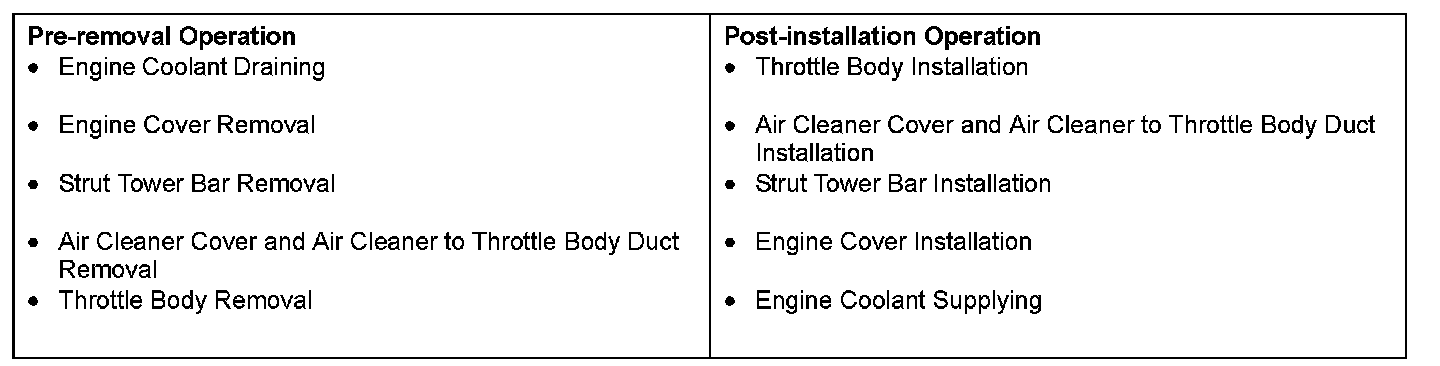

Pre-removal & Post-installation Operation:

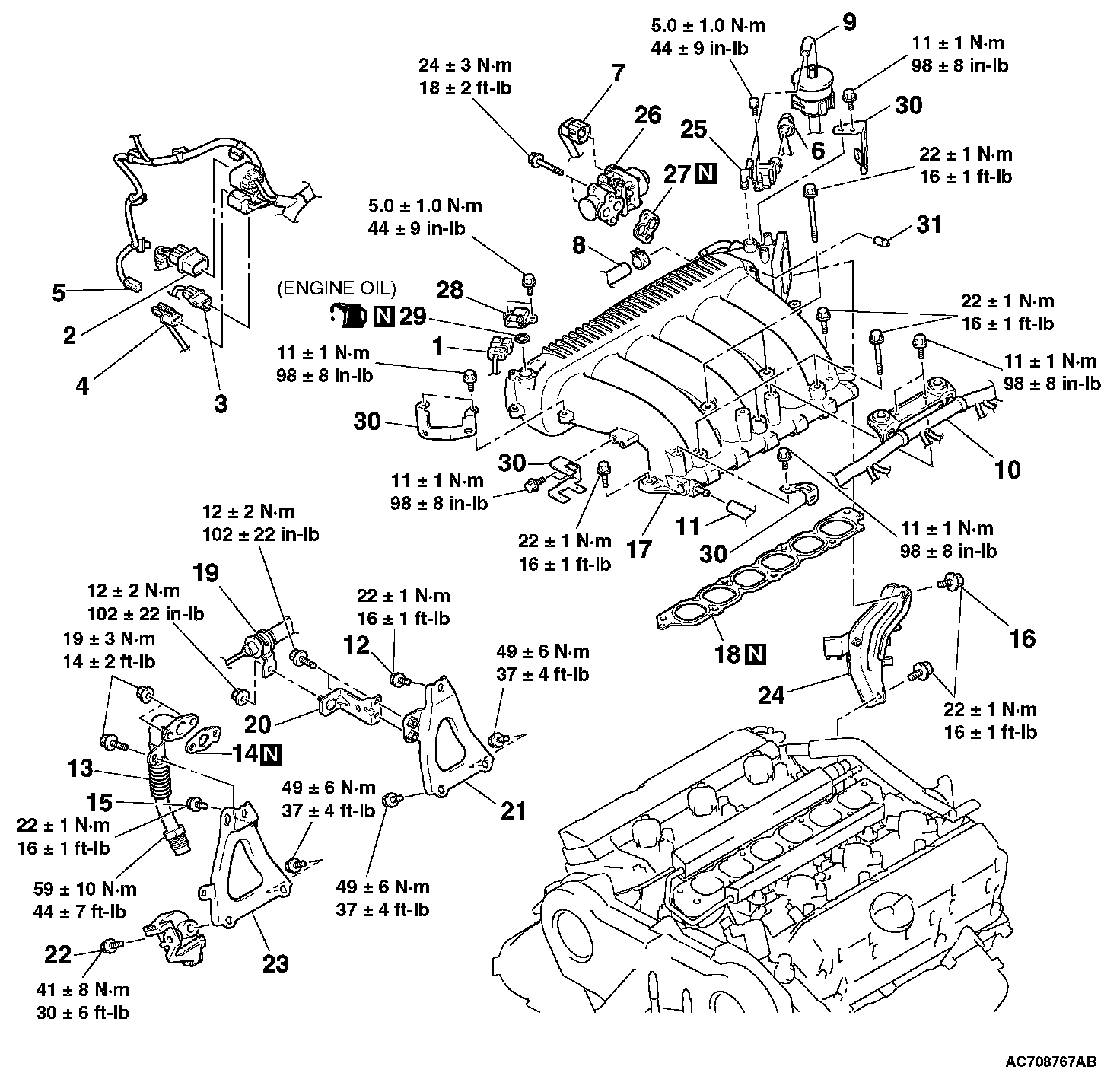

Removal Steps 1-31 (Part 1):

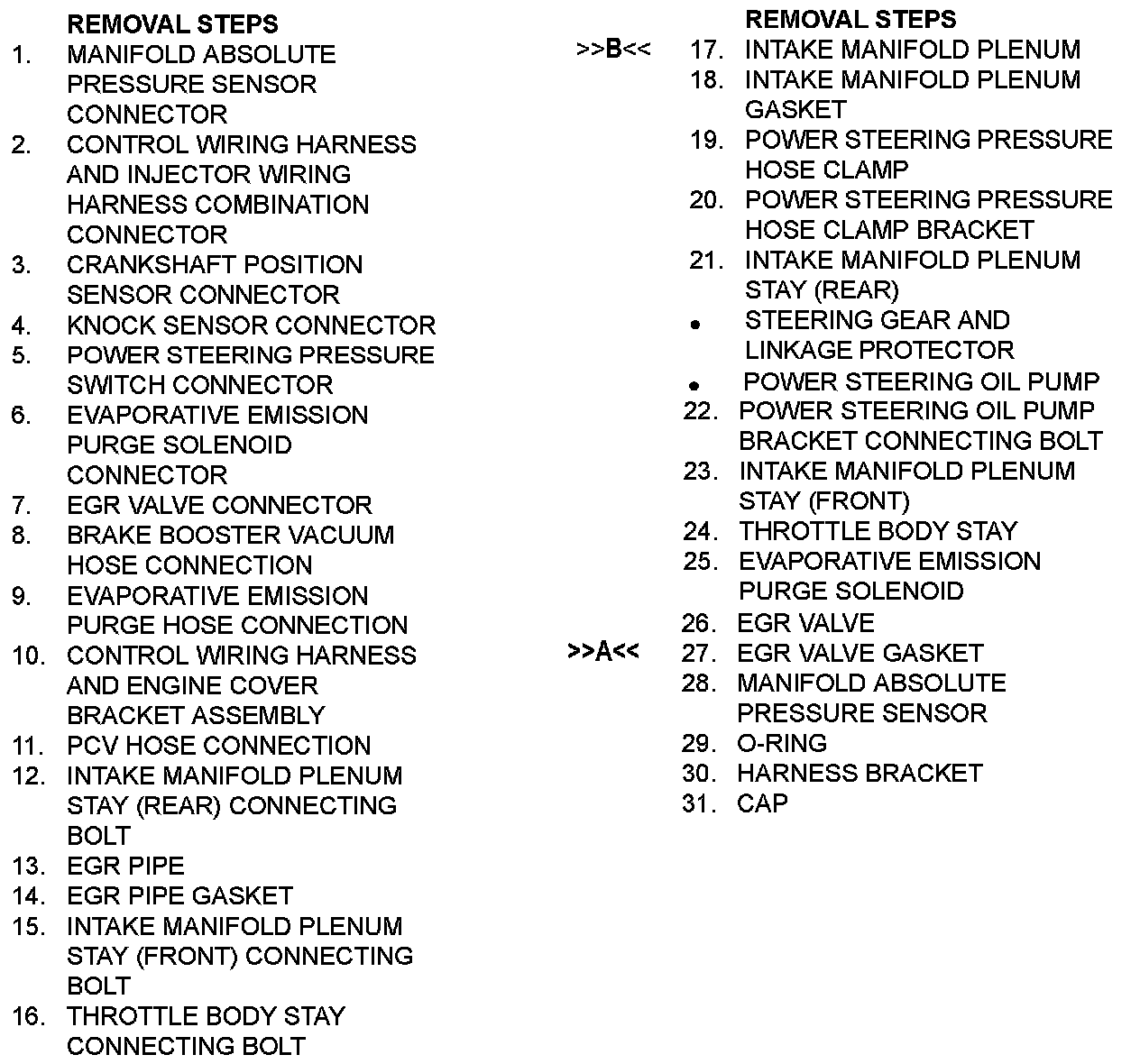

Removal Steps 1-31 (Part 2):

Required Special Tool:
- MD998412: Guide

INSTALLATION SERVICE POINTS

]]A[[ EGR VALVE GASKET INSTALLATION




Install the EGR valve gasket as shown in the illustration.

]]B[[ INTAKE MANIFOLD PLENUM INSTALLATION




Use special tool MD998412 to install the intake manifold plenum.
